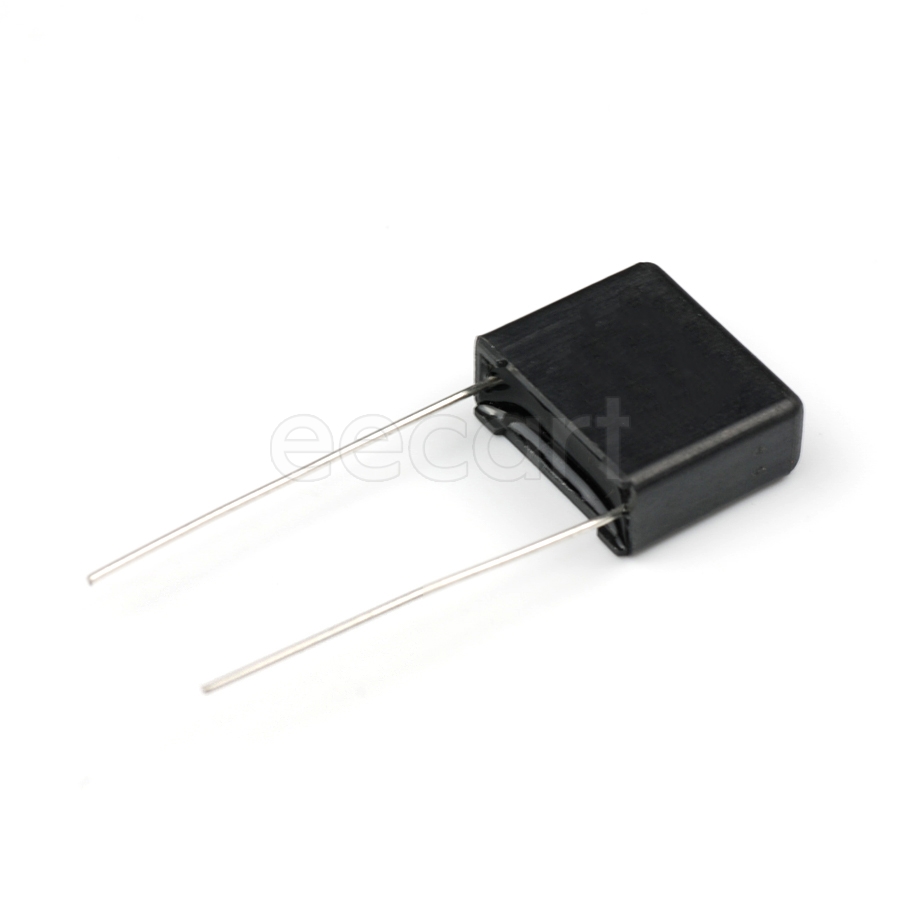

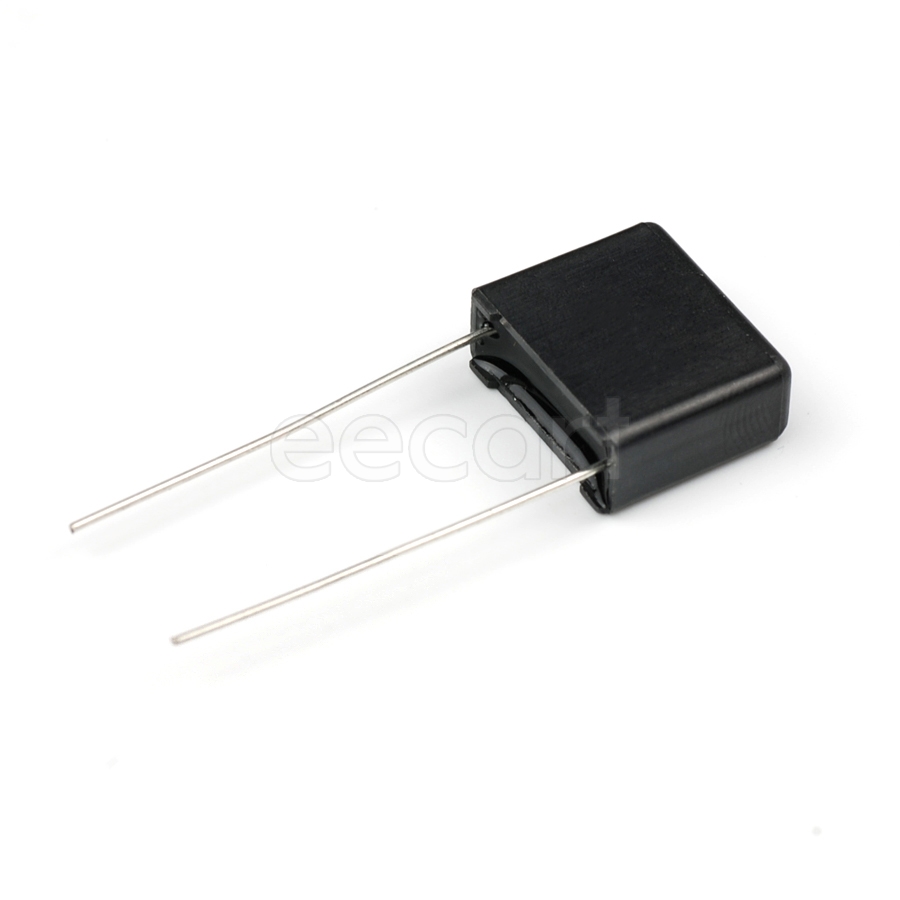

ECQ-U3A473MG
Manufacturer:
Panasonic
Mfr.Part #:
ECQ-U3A473MG
Datasheet:
Description:
Film Capacitors Through Hole 47 nF 20 % Polyethylene Terephthalate(PET) Voltage Rating (DC):833 mV Voltage Rating (AC):300 V
| Parameter | Value |
|---|---|
| Capacitance | 47 nF |
| Voltage Rating (DC) | 833 mV |
| Tolerance | 20 % |
| Height - Seated (Max) | 13.49 mm |
| Length | 15 mm |
| Width | 5.9944 mm |
| Termination | Radial |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -40 °C |
| Dielectric | Polyethylene Terephthalate(PET) |
| Voltage Rating (AC) | 300 V |
| Number of Pins | 2 |
| Height | 6 mm |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 6 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 600 µm |
| Lead Pitch | 12.5 mm |
| Dielectric Material | Polyester |
| Contact Plating | Tin |
| Lead Length | 20 mm |
| Lead/Base Style | Straight |
