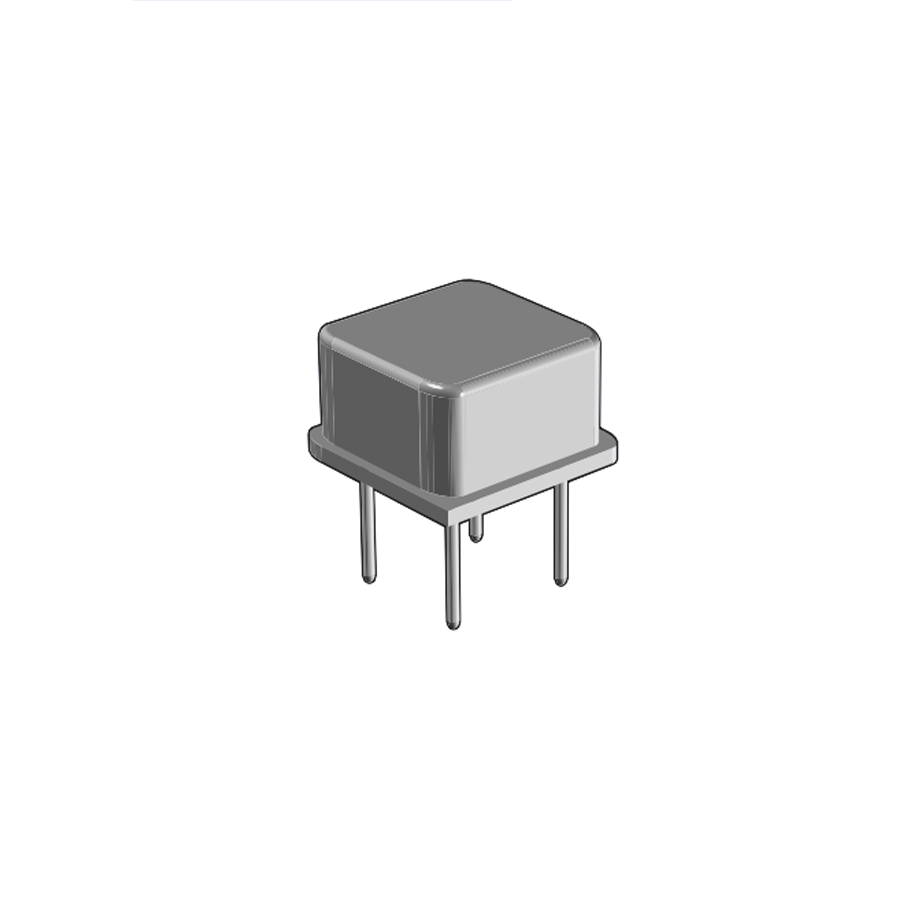

ECS-2100AX-400
Manufacturer:
ECS
Mfr.Part #:
ECS-2100AX-400
Datasheet:
Description:
Oscillators DIP-8 Through Hole XO 40 MHz
| Parameter | Value |
|---|---|
| Height - Seated (Max) | 5.4 mm |
| Length | 13.208 mm |
| Width | 13.208 mm |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Height | 5.4102 mm |
| Packaging | Bulk |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Frequency | 40 MHz |
| Frequency Stability | 100 ppm |
| Load Capacitance | 50 pF |
| Type | XO |
| Operating Supply Voltage | 5 V |
| Supply Current | 46 mA |
| Max Supply Current | 46 mA |
| Schedule B | 8541600060 |
| Output Format | HCMOS, TTL |
| Base Resonator | Crystal |
Stock: 238
Distributors
pcbx
pcbxUnit Price$1.96463
Ext.Price$1.96463
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.96463 | $1.96463 |
| 10 | $1.57050 | $15.70500 |
| 25 | $1.50062 | $37.51550 |
| 50 | $1.43385 | $71.69250 |
| 100 | $1.37005 | $137.00500 |
| 300 | $1.30909 | $392.72700 |
| 500 | $1.25084 | $625.42000 |
| 1000 | $1.19519 | $1195.19000 |
| 3000 | $1.19219 | $3576.57000 |
| 5000 | $1.18920 | $5946.00000 |
