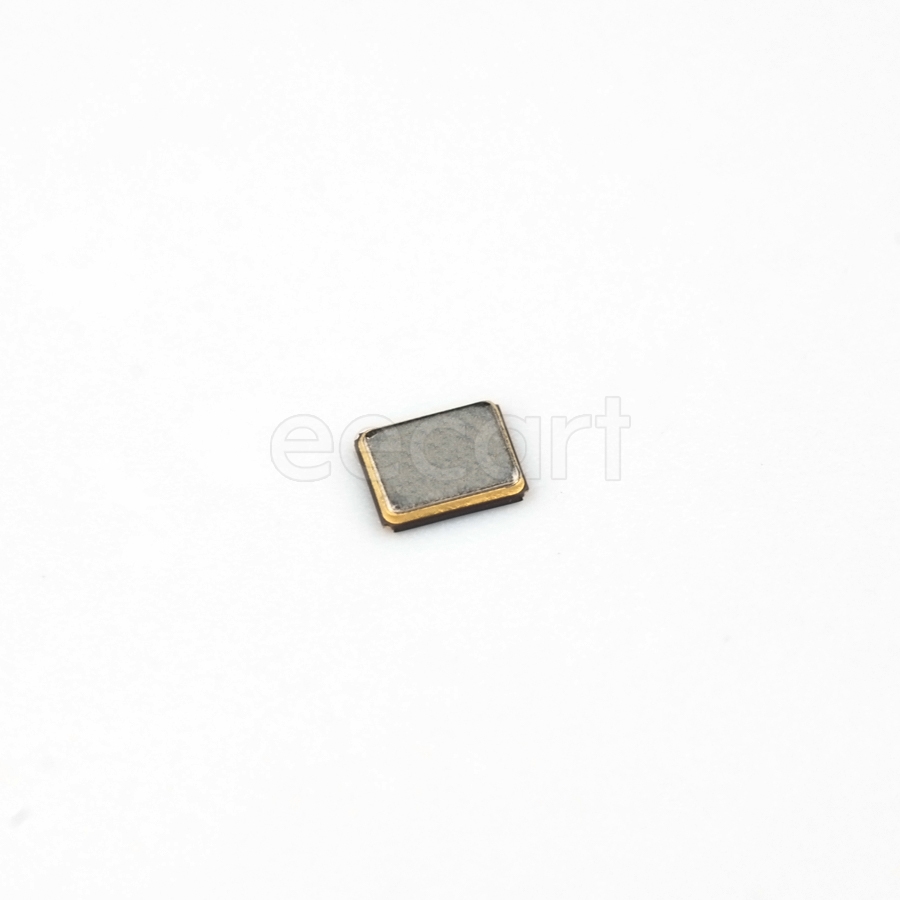

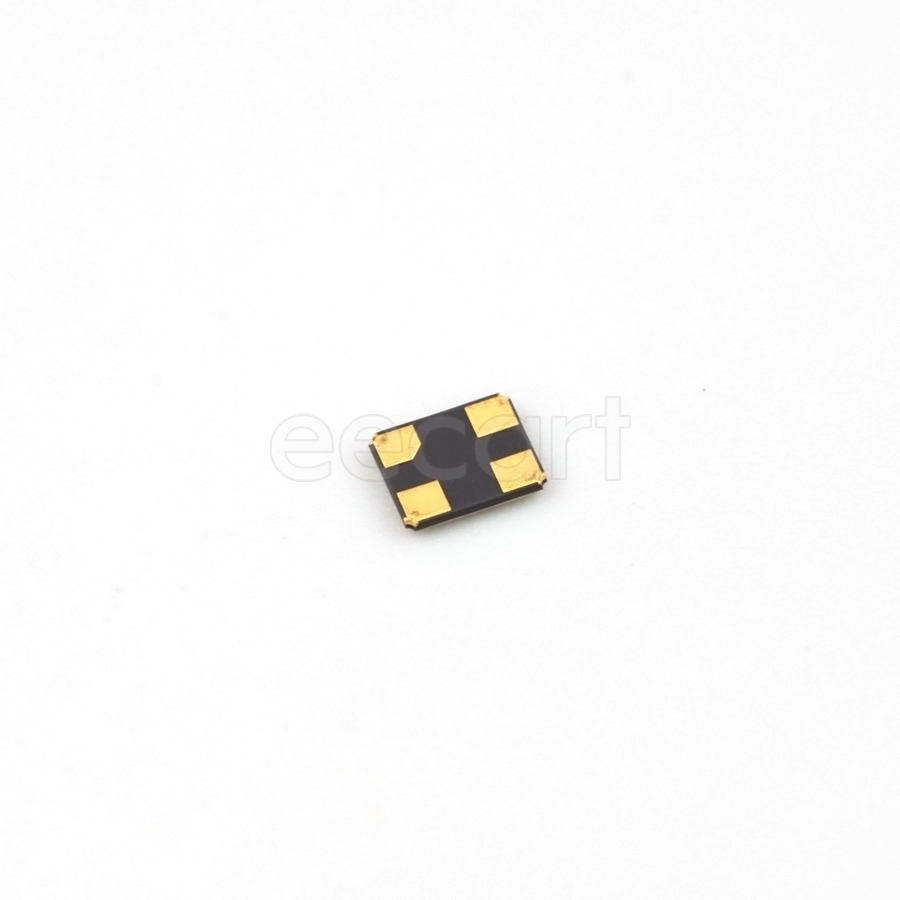

ECS-41-18-18-TR
Manufacturer:
ECS
Mfr.Part #:
ECS-41-18-18-TR
Datasheet:
Description:
Crystals 11.80mmL×5.50mmW×2.50mmH SMD/SMT 4.096 MHz 18 pF
| Parameter | Value |
|---|---|
| Tolerance | 0.003 % |
| ESR (Equivalent Series Resistance) | 150 Ω |
| Length | 11.811 mm |
| Width | 5.5118 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 2.4892 mm |
| RoHS | Compliant |
| Frequency | 4.096 MHz |
| Frequency Stability | 100 ppm |
| Frequency Tolerance | 0.003 % |
| Load Capacitance | 18 pF |
| Schedule B | 8541600025 |
| Operating Mode | Fundamental |
| Packaging | Reel |
| Height - Seated (Max) | 2.5 mm |
| Drive Level | 100 µW |
Stock: 1881
Distributors
pcbx
pcbxUnit Price$1.08871
Ext.Price$1.08871
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.08871 | $1.08871 |
| 10 | $0.94541 | $9.45410 |
| 25 | $0.89400 | $22.35000 |
| 50 | $0.85696 | $42.84800 |
| 100 | $0.82204 | $82.20400 |
| 300 | $0.82540 | $247.62000 |
| 500 | $0.82877 | $414.38500 |
| 1000 | $0.83215 | $832.15000 |
