ECS-.327-12.5-13
Manufacturer:
ECS
Mfr.Part #:
ECS-.327-12.5-13
Datasheet:
Description:

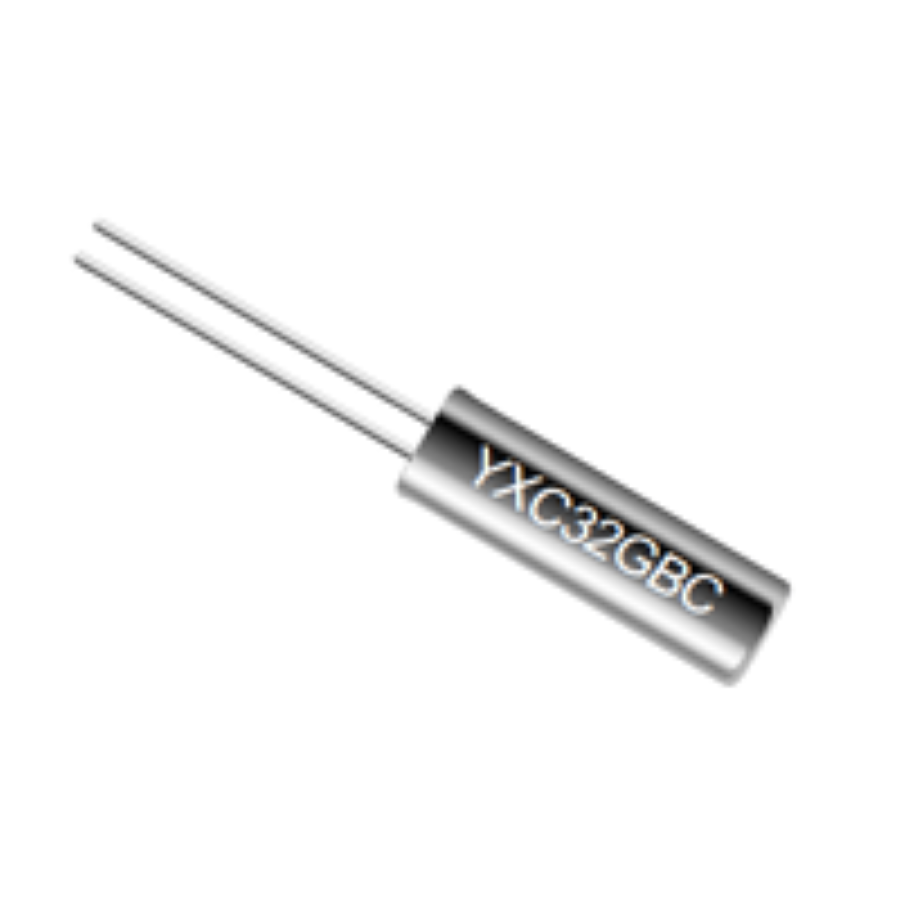

Crystals Cylindrical Can Through Hole 32.768 kHz 12.5 pF
| Parameter | Value |
|---|---|
| Tolerance | 0.002 % |
| ESR (Equivalent Series Resistance) | 35 kΩ |
| Length | 6.1976 mm |
| Termination | Radial |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -40 °C |
| Height | 6.1976 mm |
| Packaging | Bulk |
| Lead Free | Contains Lead |
| RoHS | Non-Compliant |
| Frequency | 32.768 kHz |
| Frequency Tolerance | 0.002 % |
| Load Capacitance | 12.5 pF |
| Operating Mode | Fundamental |
| Height - Seated (Max) | 6.2 mm |
| Drive Level | 1 µW |
Stock: 1637
Distributors
pcbx
pcbxUnit Price$0.27540
Ext.Price$0.27540
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.27540 | $0.27540 |
| 10 | $0.24089 | $2.40890 |
| 25 | $0.22922 | $5.73050 |
| 50 | $0.21811 | $10.90550 |
| 100 | $0.20910 | $20.91000 |
| 300 | $0.19909 | $59.72700 |
| 500 | $0.18955 | $94.77500 |
| 1000 | $0.18171 | $181.71000 |
| 3000 | $0.16994 | $509.82000 |
| 5000 | $0.16473 | $823.65000 |
| 10000 | $0.15793 | $1579.30000 |
