ECS-160-8-30B-CKM
Manufacturer:
ECS
Mfr.Part #:
ECS-160-8-30B-CKM
Datasheet:
Description:

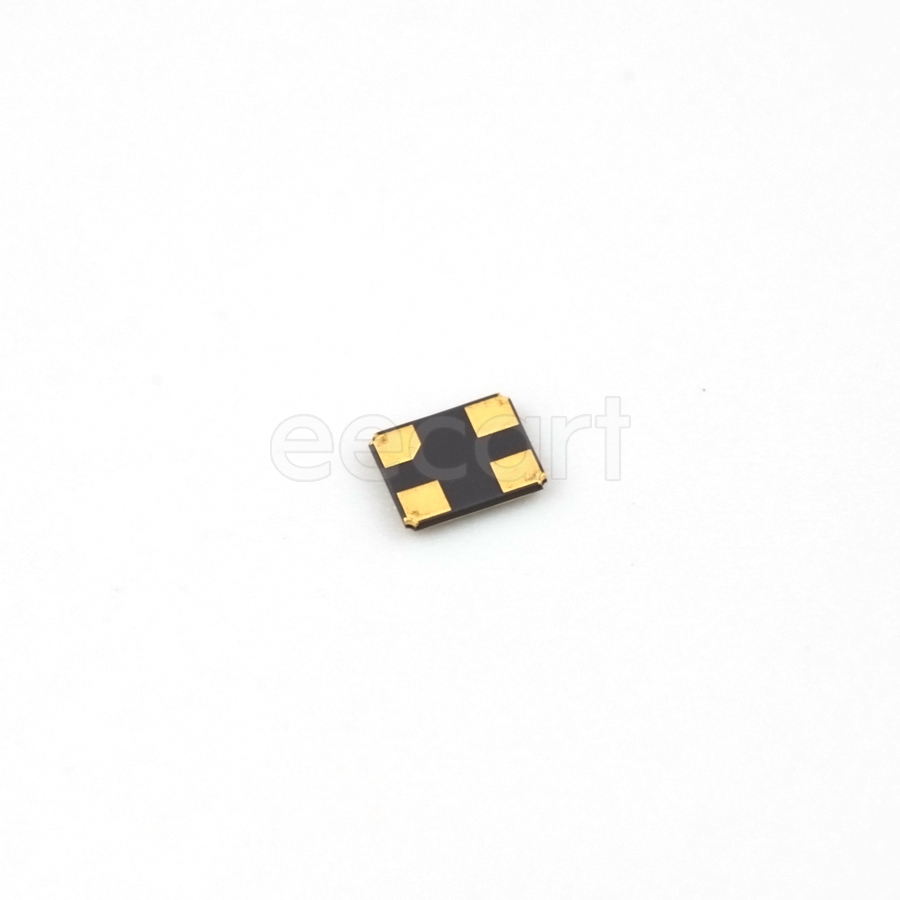

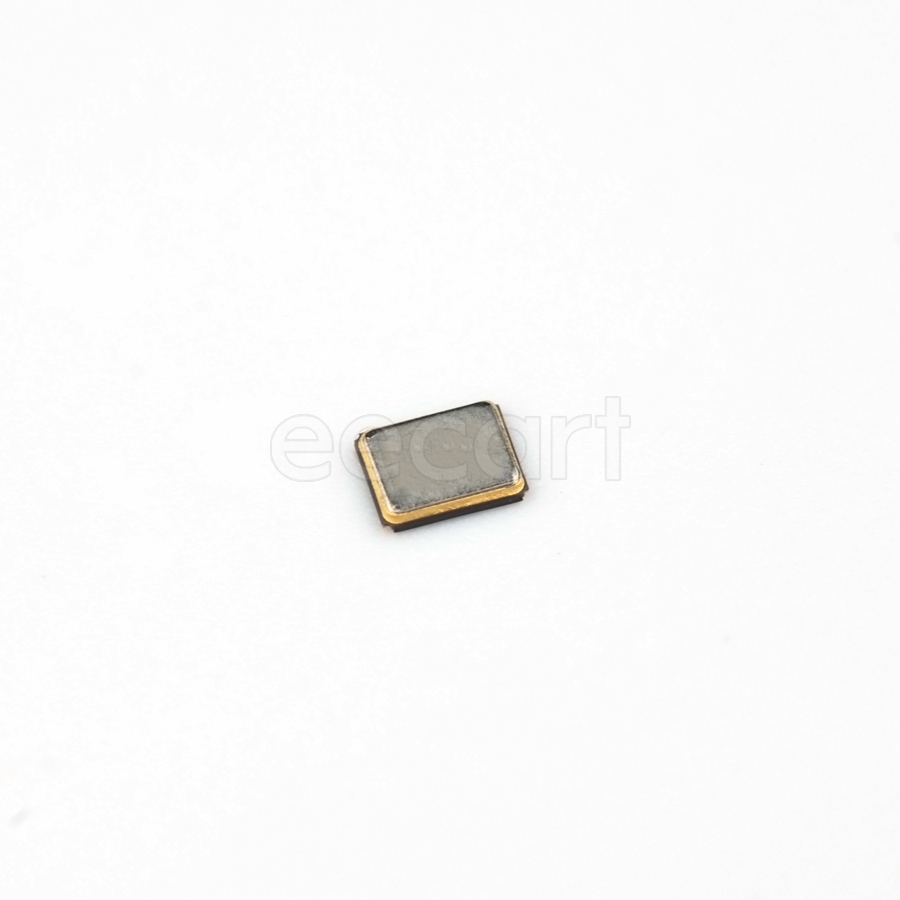

Crystals 5.00mmL×3.20mmW×0.85mmH SMD/SMT 16 MHz 8 pF
| Parameter | Value |
|---|---|
| Tolerance | 0.001 % |
| ESR (Equivalent Series Resistance) | 50 Ω |
| Length | 5.0038 mm |
| Width | 3.2004 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Height | 838.2 µm |
| RoHS | Compliant |
| Frequency | 16 MHz |
| Frequency Stability | 10 ppm |
| Frequency Tolerance | 0.001 % |
| Load Capacitance | 8 pF |
| Operating Mode | Fundamental |
| Packaging | Reel |
| Height - Seated (Max) | 0.85 mm |
| Drive Level | 100 µW |
Stock: 4523
Distributors
pcbx
pcbxUnit Price$0.42576
Ext.Price$0.42576
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.42576 | $0.42576 |
| 10 | $0.41977 | $4.19770 |
| 25 | $0.41948 | $10.48700 |
| 50 | $0.41919 | $20.95950 |
| 100 | $0.41891 | $41.89100 |
| 300 | $0.41505 | $124.51500 |
| 500 | $0.41122 | $205.61000 |
| 1000 | $0.37703 | $377.03000 |
| 3000 | $0.37143 | $1114.29000 |
| 5000 | $0.36591 | $1829.55000 |
