ECS-200-S-20A-TR
Manufacturer:
ECS
Mfr.Part #:
ECS-200-S-20A-TR
Datasheet:
Description:

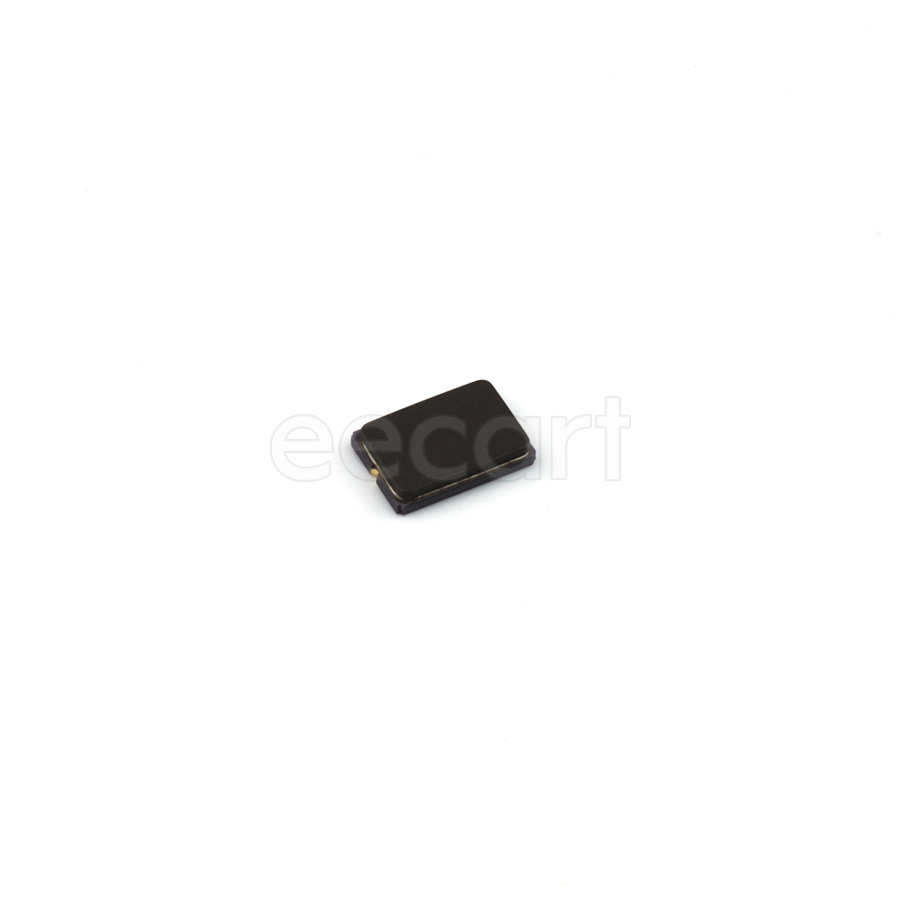

Crystals 7.00mmL×5.00mmW×1.70mmH SMD/SMT 20 MHz Series
| Parameter | Value |
|---|---|
| Tolerance | 0.003 % |
| ESR (Equivalent Series Resistance) | 40 Ω |
| Length | 7.0104 mm |
| Width | 5.0038 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -10 °C |
| Number of Pins | 2 |
| Height | 1.7018 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Frequency | 20 MHz |
| Frequency Stability | 50 ppm |
| Frequency Tolerance | 0.003 % |
| Load Capacitance | Series |
| Operating Mode | Fundamental |
| Height - Seated (Max) | 1.7 mm |
| Drive Level | 500 µW |
Stock: 2942
Distributors
pcbx
pcbxUnit Price$1.53887
Ext.Price$1.53887
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.53887 | $1.53887 |
| 10 | $1.33762 | $13.37620 |
| 25 | $1.26481 | $31.62025 |
| 50 | $1.21250 | $60.62500 |
| 100 | $1.16233 | $116.23300 |
| 300 | $1.10676 | $332.02800 |
| 500 | $1.05384 | $526.92000 |
| 1000 | $1.01342 | $1013.42000 |
