ECS-41-20-5P-TR
Manufacturer:
ECS
Mfr.Part #:
ECS-41-20-5P-TR
Datasheet:
Description:

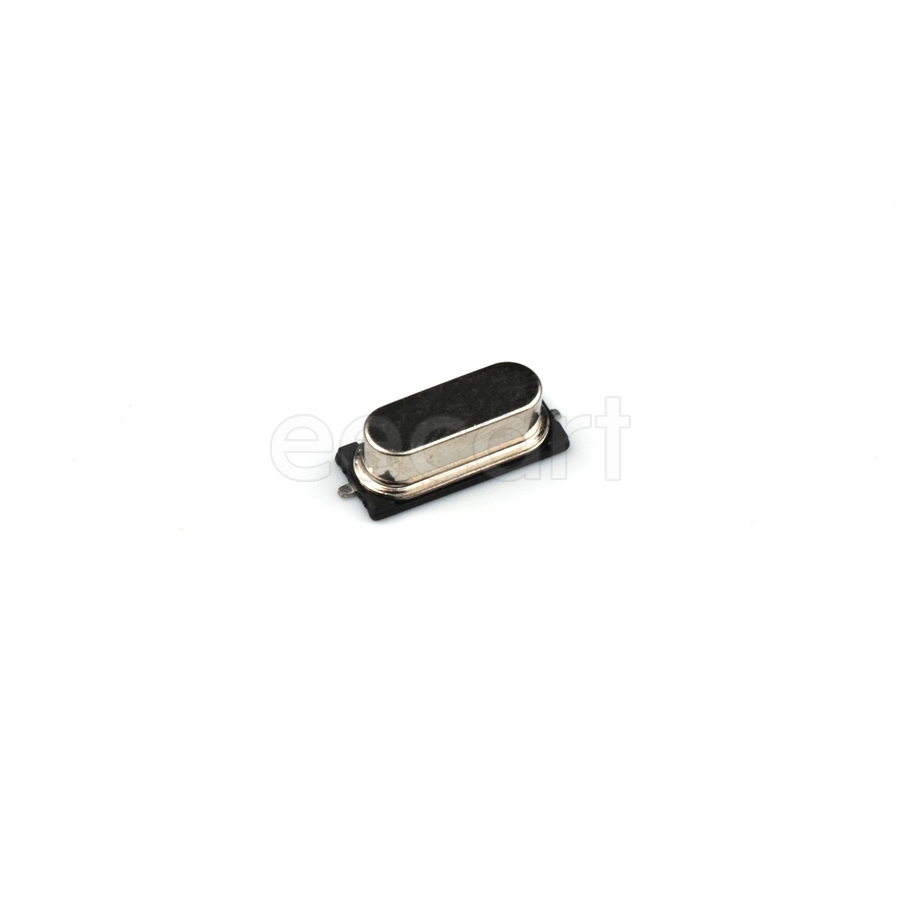

Crystals HC-49/US-SM SMD/SMT 4.096 MHz 20 pF
| Parameter | Value |
|---|---|
| Tolerance | 0.003 % |
| ESR (Equivalent Series Resistance) | 150 Ω |
| Length | 11.4046 mm |
| Width | 4.8006 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -10 °C |
| Number of Pins | 49 |
| Height | 4.2926 mm |
| Packaging | Reel |
| Lead Free | Contains Lead |
| RoHS | Compliant |
| Frequency | 4.096 MHz |
| Frequency Stability | 50 ppm |
| Frequency Tolerance | 0.003 % |
| Load Capacitance | 20 pF |
| Operating Mode | Fundamental |
| Height - Seated (Max) | 4.3 mm |
Stock: 501
Distributors
pcbx
pcbxUnit Price$0.44411
Ext.Price$0.44411
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.44411 | $0.44411 |
| 10 | $0.38419 | $3.84190 |
| 25 | $0.36572 | $9.14300 |
| 50 | $0.34813 | $17.40650 |
| 100 | $0.33367 | $33.36700 |
| 300 | $0.31770 | $95.31000 |
| 500 | $0.30250 | $151.25000 |
| 1000 | $0.28999 | $289.99000 |
