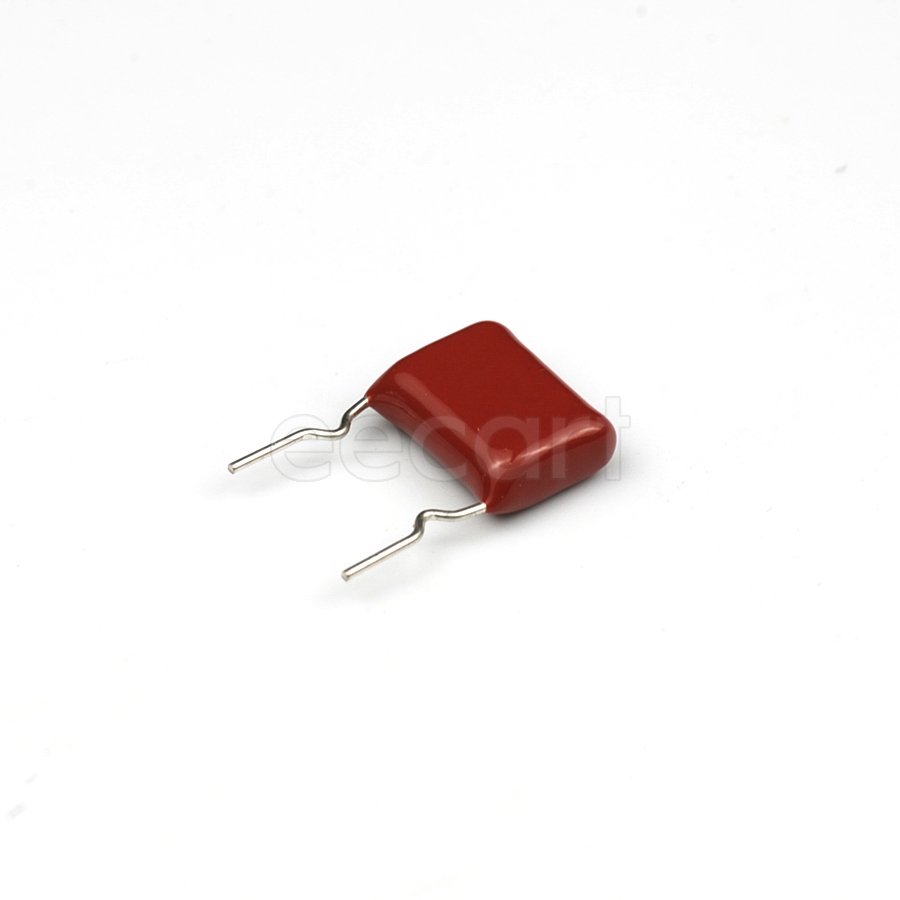

ECW-F2W184JAQ
Manufacturer:
Panasonic
Mfr.Part #:
ECW-F2W184JAQ
Datasheet:
Description:
Film Capacitors Through Hole 180 nF 5 % Polypropylene (PP) Voltage Rating (DC):450 V Voltage Rating (AC):450 V
| Parameter | Value |
|---|---|
| Capacitance | 180 nF |
| Voltage Rating (DC) | 450 V |
| Tolerance | 5 % |
| Height - Seated (Max) | 16.69 mm |
| Length | 13 mm |
| Width | 6.1 mm |
| Termination | PC Pin |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Dielectric | Polypropylene (PP) |
| Voltage Rating (AC) | 450 V |
| Number of Pins | 2 |
| Height | 15.2 mm |
| Packaging | Bulk |
| Voltage Rating | 450 V |
| Depth | 6.1 mm |
| RoHS | Compliant |
| Lead Diameter | 600 µm |
| Lead Pitch | 10 mm |
| Voltage | 450 V |
| REACH SVHC | No SVHC |
| Dielectric Material | PP |
Stock: 117
Distributors
pcbx
pcbxUnit Price$0.53860
Ext.Price$0.53860
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.53860 | $0.53860 |
| 10 | $0.33770 | $3.37700 |
| 25 | $0.31049 | $7.76225 |
| 50 | $0.28547 | $14.27350 |
| 100 | $0.26246 | $26.24600 |
| 300 | $0.21499 | $64.49700 |
| 500 | $0.17611 | $88.05500 |
| 1000 | $0.16500 | $165.00000 |
| 3000 | $0.15577 | $467.31000 |
| 5000 | $0.14705 | $735.25000 |
| 10000 | $0.14620 | $1462.00000 |
