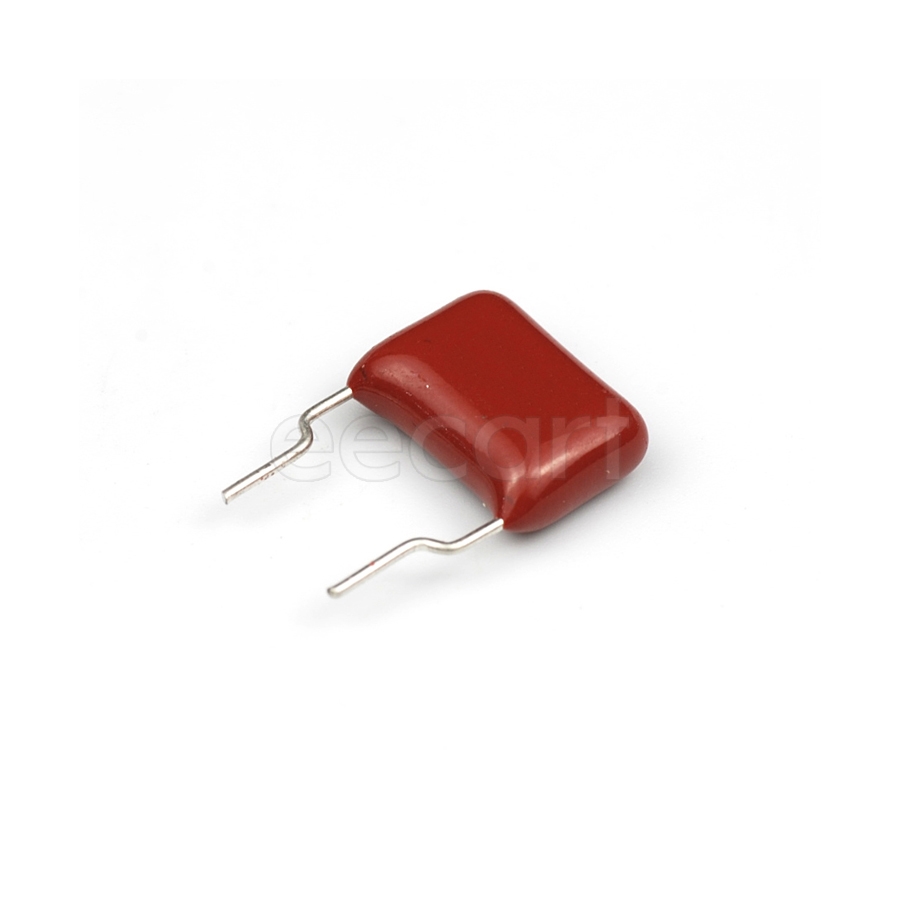

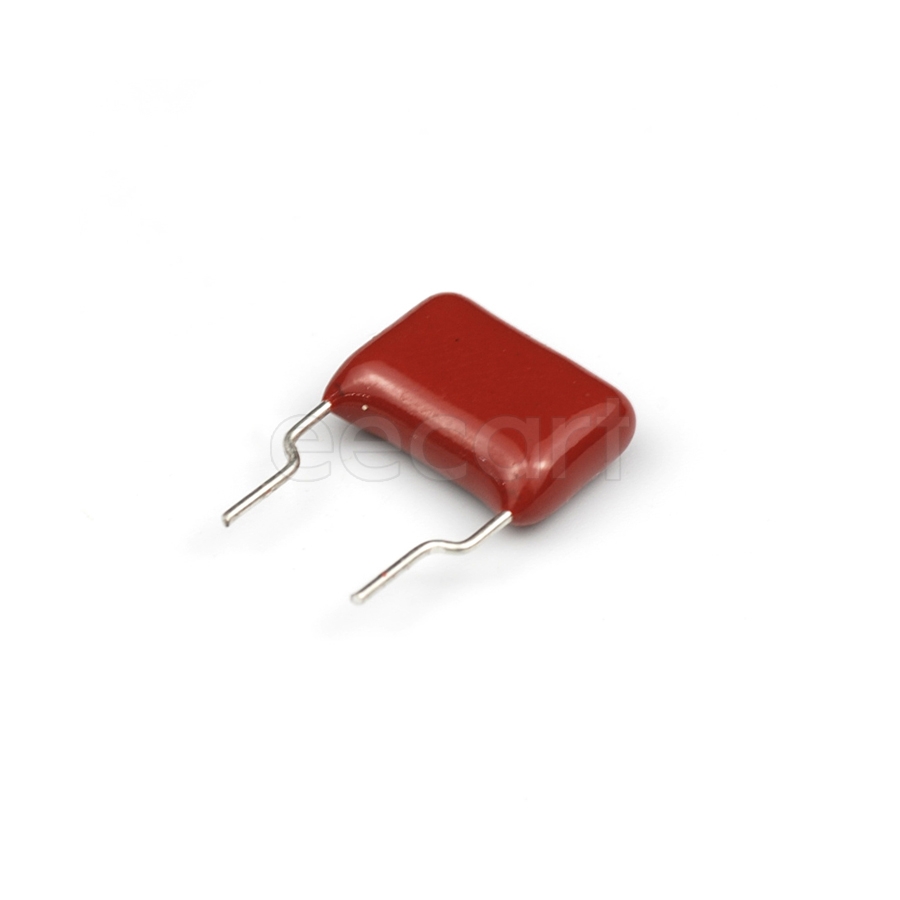

ECW-FD2W224JB
Manufacturer:
Panasonic
Mfr.Part #:
ECW-FD2W224JB
Datasheet:
Description:
Film Capacitors Through Hole 220 nF 5 % Polypropylene (PP) Voltage Rating (DC):450 V
| Parameter | Value |
|---|---|
| Capacitance | 220 nF |
| Voltage Rating (DC) | 450 V |
| Tolerance | 5 % |
| Height - Seated (Max) | 14.6 mm |
| Length | 12.5984 mm |
| Width | 5 mm |
| Termination | PC Pin |
| Max Operating Temperature | 110 °C |
| Min Operating Temperature | -40 °C |
| Dielectric | Polypropylene (PP) |
| Number of Pins | 2 |
| Height | 14.6 mm |
| Packaging | Bulk |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Diameter | 600 µm |
| Lead Pitch | 7.493 mm |
| Dielectric Material | PP |
| Schedule B | 8532250070 |
Stock: 311
Distributors
pcbx
pcbxUnit Price$0.40694
Ext.Price$0.40694
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.40694 | $0.40694 |
| 10 | $0.21544 | $2.15440 |
| 25 | $0.20837 | $5.20925 |
| 50 | $0.20154 | $10.07700 |
| 100 | $0.19493 | $19.49300 |
| 300 | $0.17887 | $53.66100 |
| 500 | $0.16414 | $82.07000 |
| 1000 | $0.12653 | $126.53000 |
