307-010-525-101
Manufacturer:
EDAC
Mfr.Part #:
307-010-525-101
Datasheet:
Description:

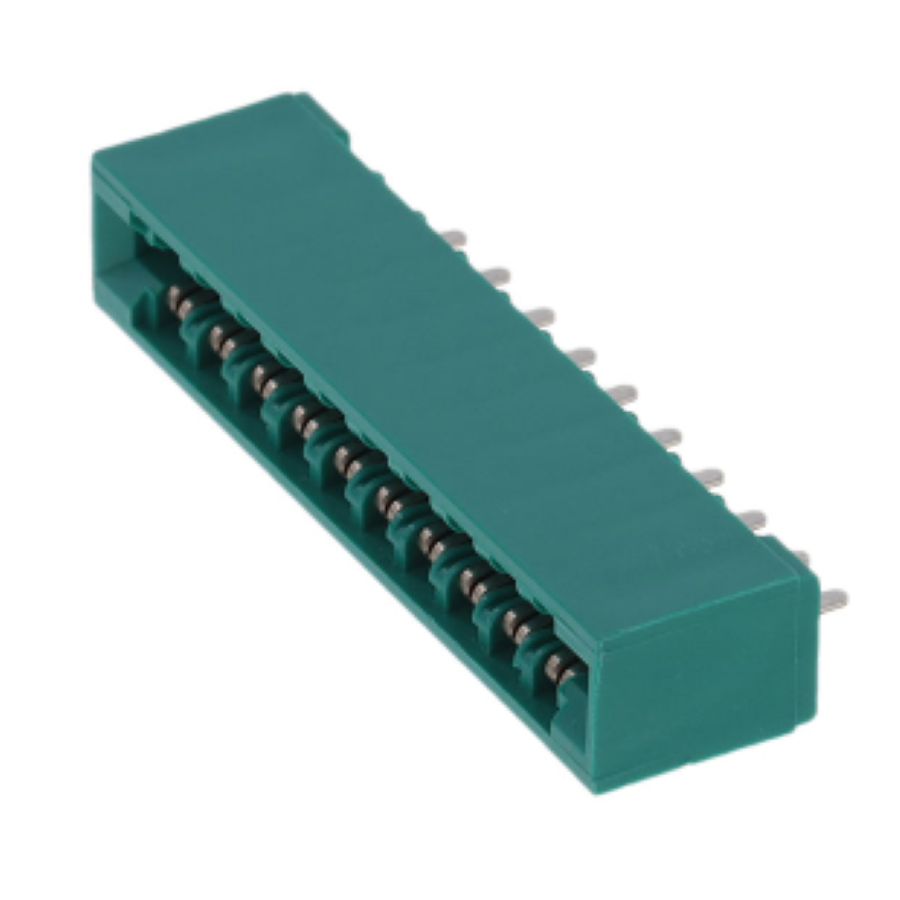

Edgeboard Connectors Through Hole Female Vertical Number of Positions:10
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Voltage Rating | 1800 V (1.8 kV) |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| Contact Plating | Gold over Nickel |
| Contact Material(Contact Finish) | Copper Alloy |
| Pitch | 3.96 mm |
| Current Rating | 5 A |
| Color | Green |
| Gender | Female |
| Contact Type | Semi Bellows |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Insulation Material | Polyester |
| Card Thickness | 1.57 mm |
| Housing Material | Thermoplastic Polyester |
| Board Thickness | 1.57 mm |
| Mounting Angle | Vertical |
| Card Type | Single Edge |
Stock: 2
Distributors
pcbx
pcbxUnit Price$5.58183
Ext.Price$5.58183
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.58183 | $5.58183 |
| 10 | $4.74400 | $47.44000 |
| 25 | $4.44307 | $111.07675 |
| 50 | $4.23019 | $211.50950 |
| 100 | $3.83009 | $383.00900 |
| 300 | $3.50975 | $1052.92500 |
| 500 | $3.21624 | $1608.12000 |
| 1000 | $2.92215 | $2922.15000 |
