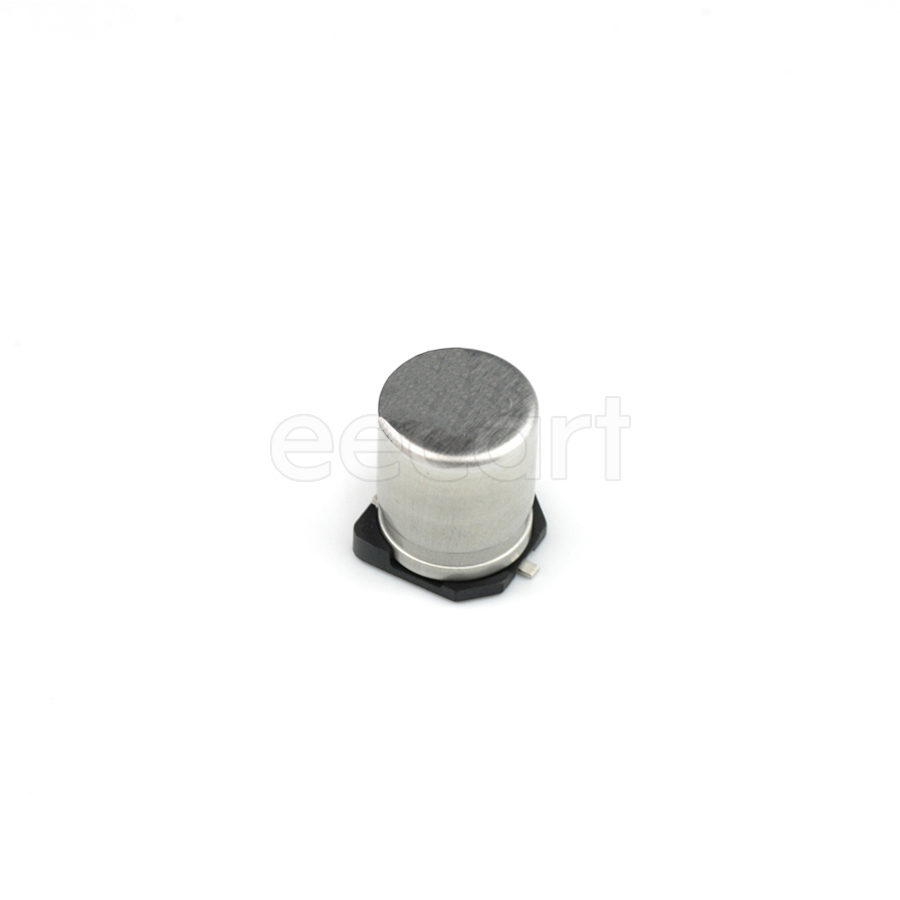

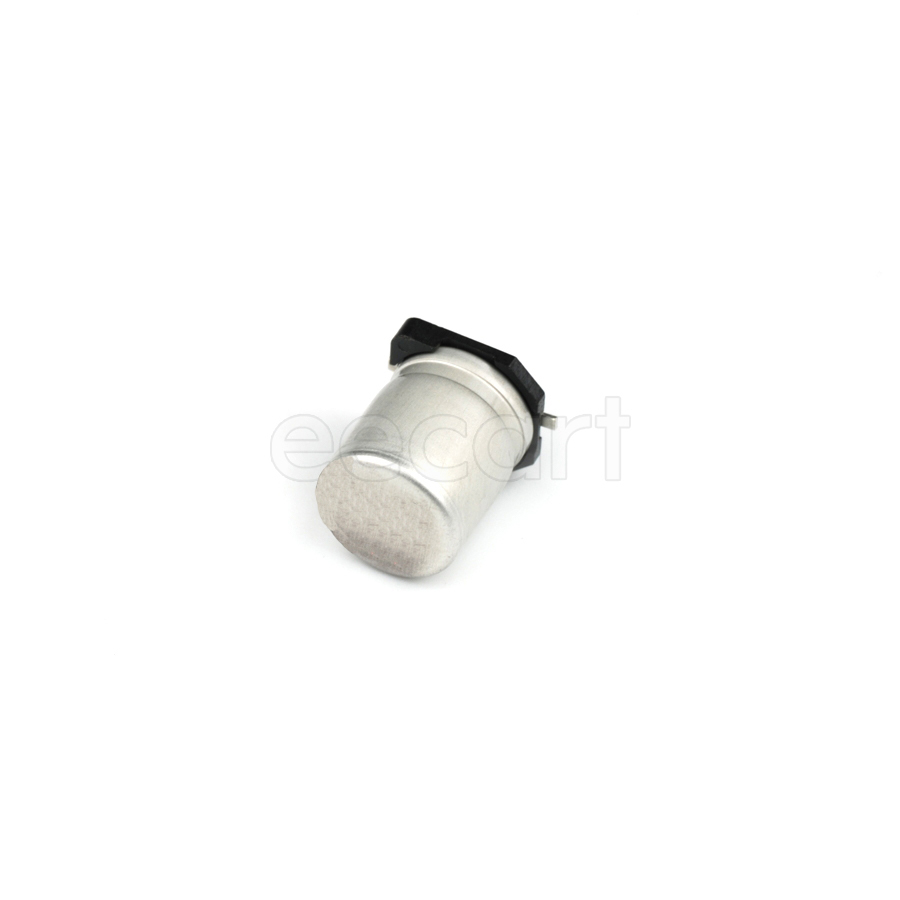

EDK106M016A9BAA
Manufacturer:
KEMET
Mfr.Part #:
EDK106M016A9BAA
Datasheet:
Description:
Aluminum Electrolytic Capacitors 4.00mmD×5.640mmH SMD/SMT 10 µF 20 % 16 V
| Parameter | Value |
|---|---|
| Capacitance | 10 µF |
| Voltage Rating (DC) | 16 V |
| Tolerance | 20 % |
| Life (Hours) | 2000 Hours |
| Ripple Current | 28 mA |
| Height - Seated (Max) | 5.64 mm |
| Length | 5.4 mm |
| Termination | SMD/SMT |
| Diameter | 4 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Leakage Current | 3 µA |
| Dissipation Factor | 16 % |
| Height | 5.4 mm |
| Packaging | Reel |
| Voltage Rating | 16 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Schedule B | 8532220020 |
| Ripple Current @ High Frequency | 35 mA @ 10 kHz |
| Ripple Current @ Low Frequency | 28 mA @ 120 Hz |
Stock: 17344
Distributors
pcbx
pcbxUnit Price$0.16927
Ext.Price$0.16927
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.16927 | $0.16927 |
| 10 | $0.07951 | $0.79510 |
| 50 | $0.07333 | $3.66650 |
| 100 | $0.06763 | $6.76300 |
| 500 | $0.05566 | $27.83000 |
| 1000 | $0.05318 | $53.18000 |
| 3000 | $0.04735 | $142.05000 |
| 5000 | $0.04216 | $210.80000 |
| 10000 | $0.03753 | $375.30000 |
