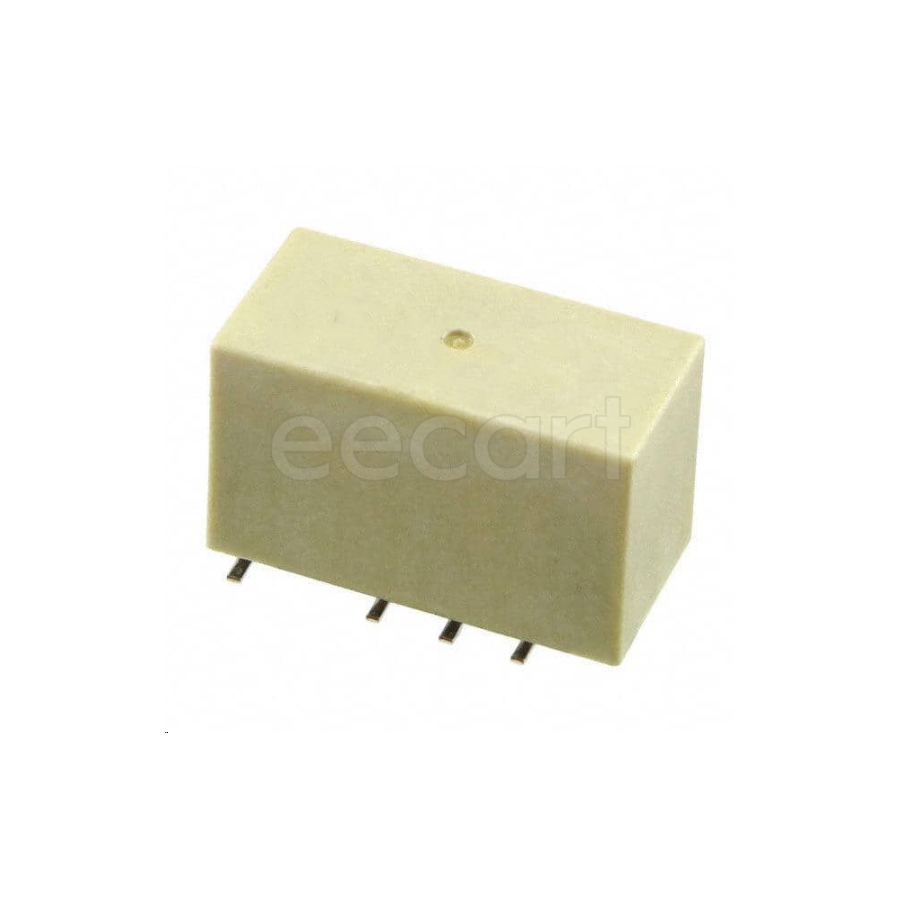

EE2-12NUH-L
Manufacturer:
KEMET
Mfr.Part #:
EE2-12NUH-L
Datasheet:
Description:
Signal Relays SMD/SMT 11.7 mA Non-Latching Coil Voltage (DC):12 V
| Parameter | Value |
|---|---|
| Length | 15 mm |
| Width | 7.5 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Height | 10 mm |
| Packaging | Reel |
| Depth | 7.5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Material(Contact Finish) | Silver Alloy, Gold Alloy |
| Current Rating | 2 A |
| Max Current Rating | 2 A |
| Max Voltage Rating (DC) | 220 V |
| Number of Contacts | 2 |
| Ambient Temperature Range High | 85 °C |
| Number of Poles | 1 |
| Throw Configuration | DPDT |
| Max Voltage Rating (AC) | 250 V |
| Coil Voltage (DC) | 12 V |
| Coil Current | 11.7 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 1.028 kΩ |
| Relay Type | General Purpose |
| Operate Time | 2 ms |
| Release Time | 1 ms |
| Contact Current Rating | 2 A |
| switching current | 2 A |
| power consumption | 140 mW |
| Termination Style | Gull Wing |
| Switching Voltage | 250 V, 220 V |
| Coil Power | 140 mW |
| Must Operate Voltage | 9 V |
| Must Release Voltage | 1.2 V |
| Contact Form | DPDT (2 Form C) |
Stock: 1083
Distributors
pcbx
pcbxUnit Price$1.45167
Ext.Price$1.45167
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.45167 | $1.45167 |
| 10 | $1.29522 | $12.95220 |
| 25 | $1.23880 | $30.97000 |
| 50 | $1.18920 | $59.46000 |
| 100 | $1.15757 | $115.75700 |
| 300 | $1.10956 | $332.86800 |
| 500 | $1.06353 | $531.76500 |
| 1000 | $0.93273 | $932.73000 |
