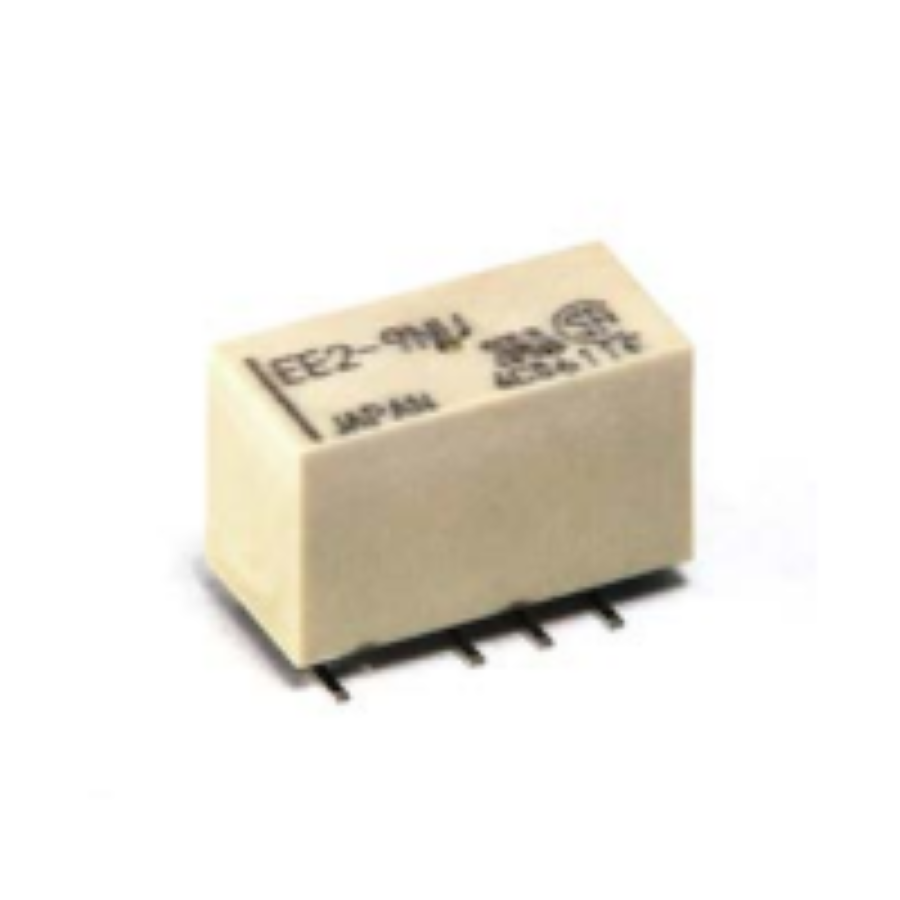

EE2-24NU-L
Manufacturer:
KEMET
Mfr.Part #:
EE2-24NU-L
Datasheet:
Description:
Relays SMD/SMT Coil Current:8.3 mA Contact Current Rating:2 A DPDT Coil Voltage (DC):24 V Coil Voltage (AC):24 V General Purpose 200 mW
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 220 V |
| Length | 15 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 8 |
| Height | 9 mm |
| Circuit Type | DPDT (2 Form C) |
| Packaging | Reel |
| Depth | 7.5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Material(Contact Finish) | Gold, Silver |
| Current Rating | 2 A |
| Max Current Rating | 2 A |
| Max Voltage Rating (DC) | 220 V |
| Number of Poles | 1 |
| Throw Configuration | DPDT |
| Max Voltage Rating (AC) | 250 V |
| Coil Voltage (DC) | 24 V |
| Coil Current | 8.3 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 2.88 kΩ |
| Relay Type | General Purpose |
| Operate Time | 2 ms |
| Release Time | 1 ms |
| Contact Current Rating | 2 A |
| power consumption | 200 mW |
| Termination Style | Gull Wing |
| Switching Voltage | 250 V |
| Coil Power | 200 mW |
| Coil Voltage (AC) | 24 V |
| Must Operate Voltage | 18 V |
| Must Release Voltage | 2.4 V |
Stock: 21777
Distributors
pcbx
pcbxUnit Price$1.62094
Ext.Price$1.62094
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.62094 | $1.62094 |
| 10 | $1.56452 | $15.64520 |
| 25 | $1.49527 | $37.38175 |
| 50 | $1.43970 | $71.98500 |
| 100 | $1.39524 | $139.52400 |
| 300 | $1.33451 | $400.35300 |
| 500 | $1.27641 | $638.20500 |
| 1000 | $1.16441 | $1164.41000 |
| 3000 | $1.15151 | $3454.53000 |
| 5000 | $1.13877 | $5693.85000 |
