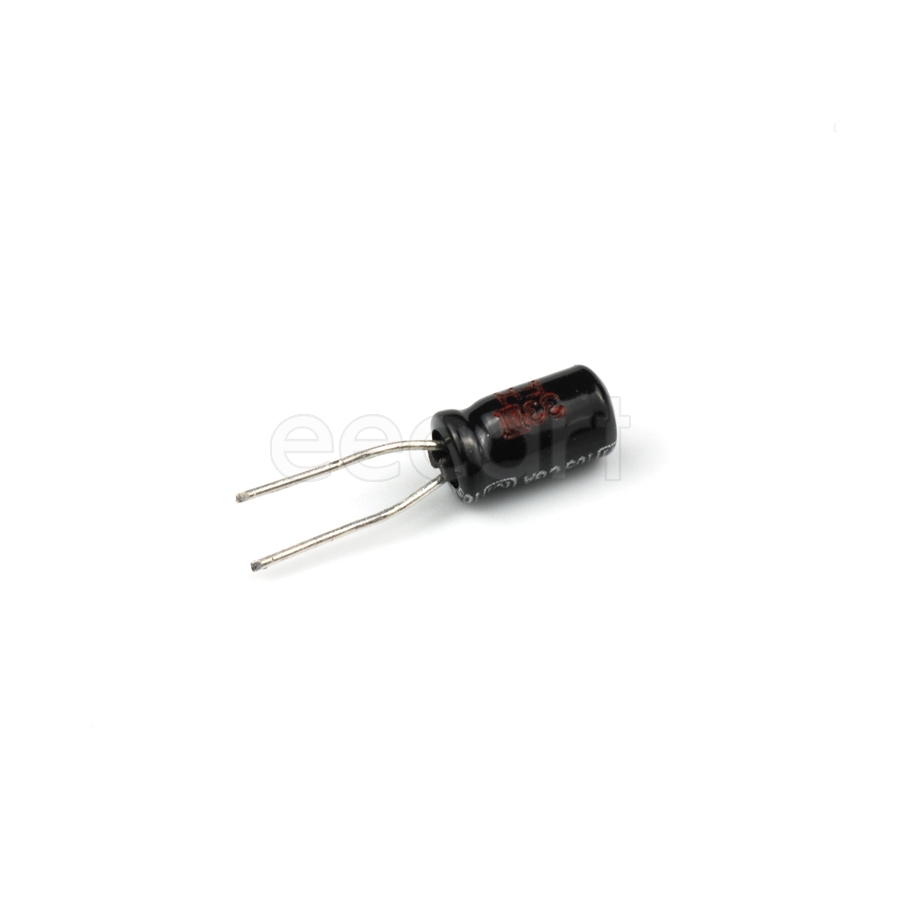

EEA-GA1H1R0H
Manufacturer:
Panasonic
Mfr.Part #:
EEA-GA1H1R0H
Datasheet:
Description:
Aluminum Electrolytic Capacitors Radial,4.00mm×7.00mm Through Hole 1 µF 20 % 50 V
| Parameter | Value |
|---|---|
| Capacitance | 1 µF |
| Voltage Rating (DC) | 50 V |
| Tolerance | 20 % |
| Life (Hours) | 1000 Hours |
| Ripple Current | 10 mA |
| Height - Seated (Max) | 7 mm |
| Length | 7 mm |
| Termination | Radial |
| Diameter | 4 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Leakage Current | 3 µA |
| Height | 7 mm |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 450 µm |
| Lead Pitch | 2.5 mm |
| REACH SVHC | No SVHC |
| Features | General Purpose |
| Lead/Base Style | Straight |
| Ripple Current @ Low Frequency | 10 mA @ 120 Hz |
| Ripple Current @ High Frequency | 15.5 mA @ 100 kHz |
