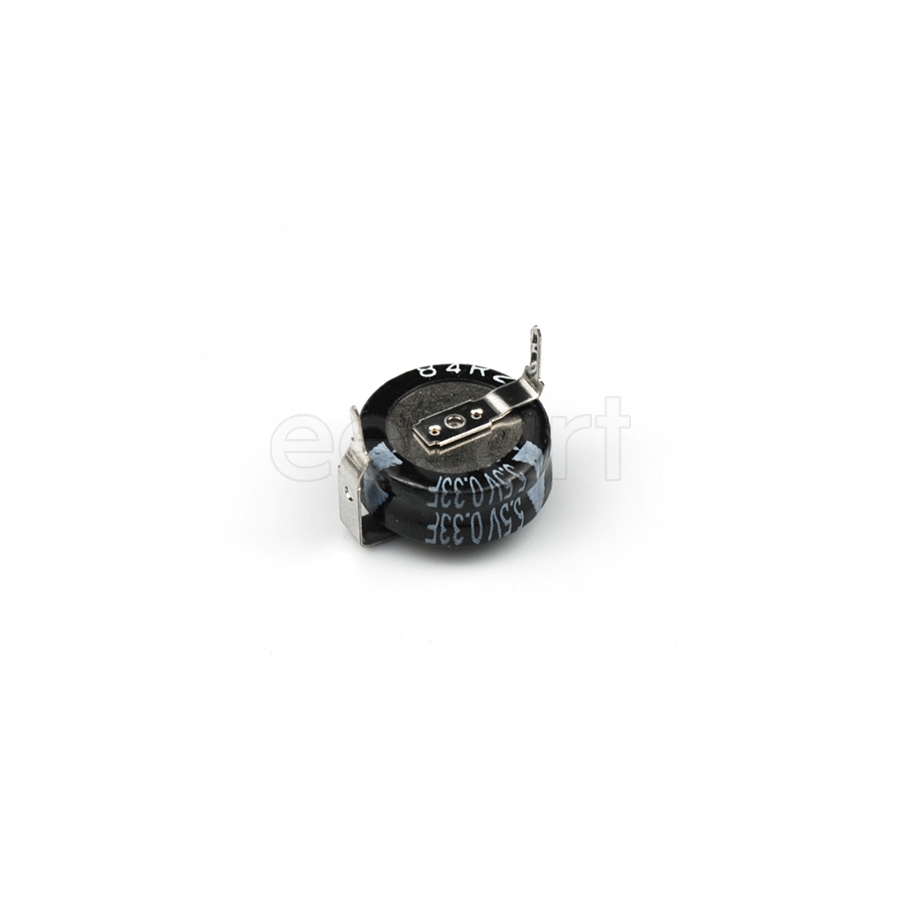

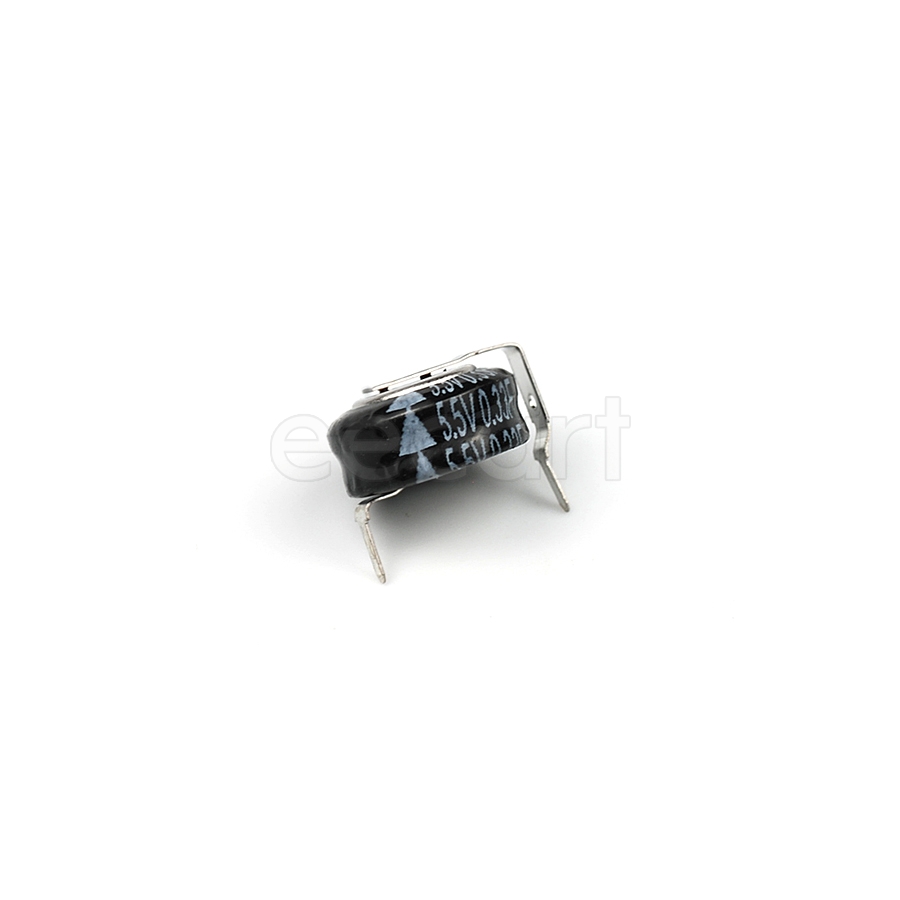

EEC-S0HD334H
Manufacturer:
Panasonic
Mfr.Part #:
EEC-S0HD334H
Datasheet:
Description:
Ceramic Capacitors 10.50mmD×6.50mmH Through Hole 330 mF 80 % 5.5 V
| Parameter | Value |
|---|---|
| Capacitance | 330 mF |
| Voltage Rating (DC) | 5.5 V |
| Tolerance | 80 % |
| ESR (Equivalent Series Resistance) | 75 Ω |
| Life (Hours) | 1000 Hours |
| Height - Seated (Max) | 6.5 mm |
| Length | 11.5 mm |
| Width | 10.5 mm |
| Termination | Radial |
| Diameter | 10.5 mm |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Number of Pins | 2 |
| Height | 6.5 mm |
| Packaging | Bulk |
| Voltage Rating | 5.5 V |
| Depth | 10.5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 800 µm |
| Lead Pitch | 10 mm |
| Voltage | 5.5 V |
| REACH SVHC | No SVHC |
| Dielectric Material | Aluminium |
| Contact Plating | Tin |
| Schedule B | 8532290040 |
