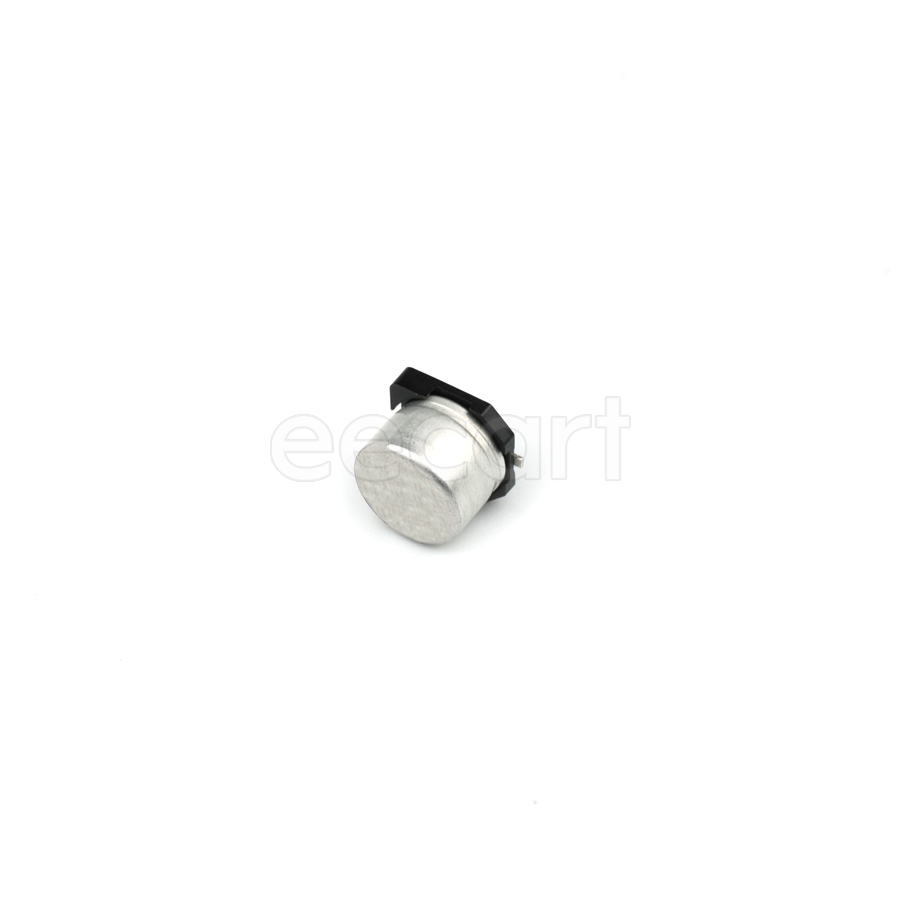

EEE-1CA470SP
Manufacturer:
Panasonic
Mfr.Part #:
EEE-1CA470SP
Datasheet:
Description:
Aluminum Electrolytic Capacitors SMD,6.30mm×5.40mm SMD/SMT 47 µF 20 % 16 V
| Parameter | Value |
|---|---|
| Capacitance | 47 µF |
| Voltage Rating (DC) | 16 V |
| Tolerance | 20 % |
| Life (Hours) | 2000 Hours |
| Ripple Current | 70 mA |
| Height - Seated (Max) | 5.4 mm |
| Length | 5.5 mm |
| Width | 6.6 mm |
| Termination | SMD/SMT |
| Diameter | 6.3 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 16 V |
| Number of Pins | 2 |
| Leakage Current | 3 µA |
| Dissipation Factor | 16 % |
| Height | 5.4 mm |
| Packaging | Reel |
| Voltage Rating | 16 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 16 V |
| REACH SVHC | No SVHC |
| Dielectric Material | Aluminium |
| Contact Plating | Tin |
| Ripple Current (AC) | 70 mA |
| Lead Length | 2.6 mm |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Schedule B | 8532220020 |
| Ripple Current @ High Frequency | 119 mA @ 10 kHz |
| Ripple Current @ Low Frequency | 70 mA @ 120 Hz |
Stock: 17043
Distributors
pcbx
pcbxUnit Price$0.21287
Ext.Price$0.21287
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.21287 | $0.21287 |
| 10 | $0.09490 | $0.94900 |
| 50 | $0.08922 | $4.46100 |
| 100 | $0.08387 | $8.38700 |
| 500 | $0.06635 | $33.17500 |
| 1000 | $0.04822 | $48.22000 |
| 3000 | $0.04430 | $132.90000 |
| 5000 | $0.04069 | $203.45000 |
