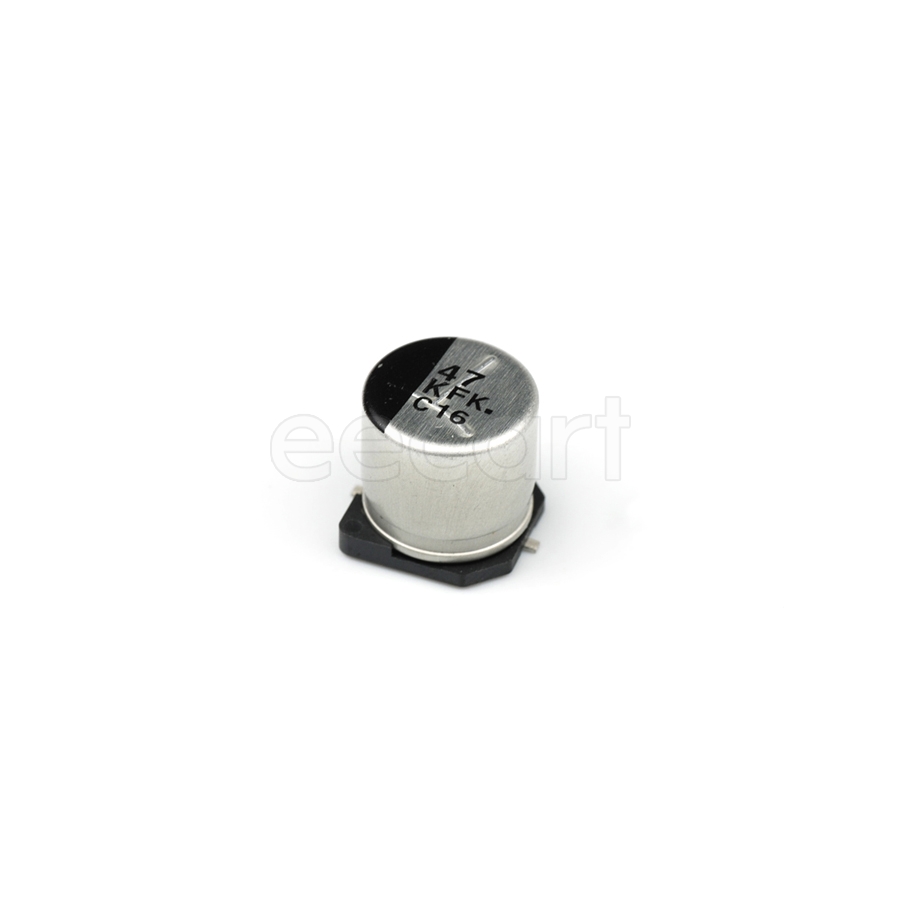

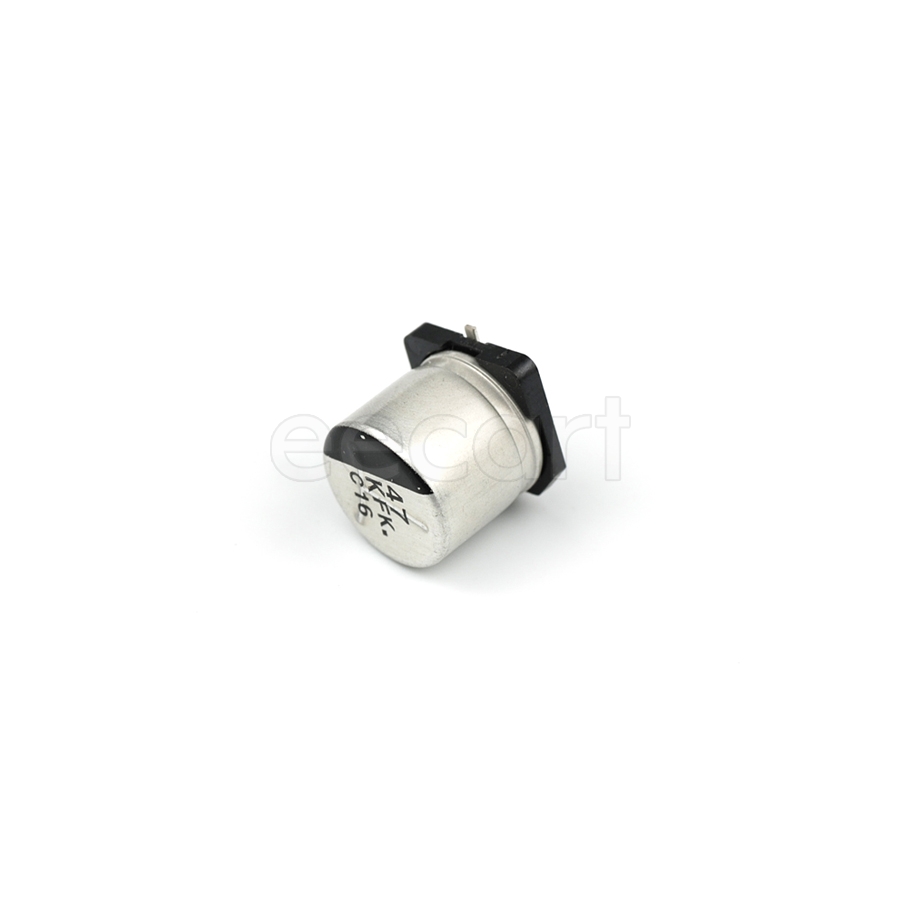

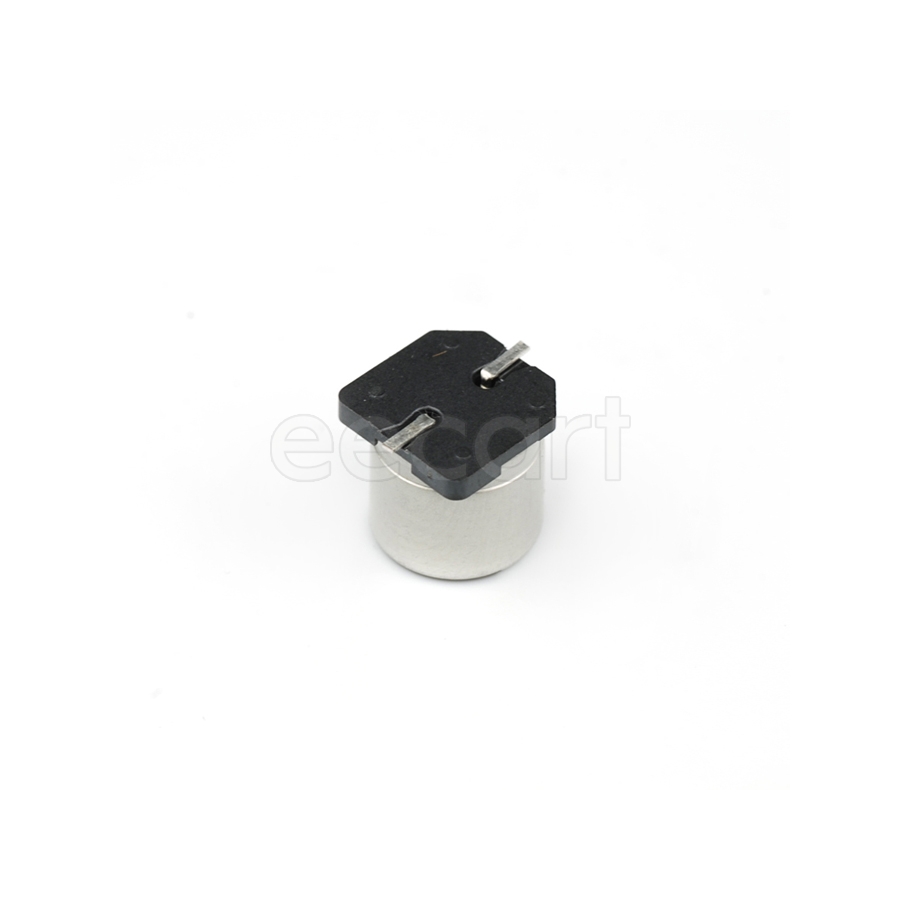

EEE-1EA471UAP
Manufacturer:
Panasonic
Mfr.Part #:
EEE-1EA471UAP
Datasheet:
Description:
Aluminum Electrolytic Capacitors SMD,10.00mm×10.20mm SMD/SMT 470 µF 20 % 25 V
| Parameter | Value |
|---|---|
| Capacitance | 470 µF |
| Voltage Rating (DC) | 25 V |
| Tolerance | 20 % |
| Life (Hours) | 1000 Hours |
| Ripple Current | 380 mA |
| Height - Seated (Max) | 10.2 mm |
| Length | 10.5 mm |
| Termination | SMD/SMT |
| Diameter | 10 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Leakage Current | 3 µA |
| Dissipation Factor | 0.25 % |
| Height | 10.2 mm |
| Packaging | Reel |
| Voltage Rating | 25 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 900 µm |
| Voltage | 25 V |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Ripple Current (AC) | 380 mA |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Schedule B | 8532220020 |
| Ripple Current @ Low Frequency | 380 mA @ 120 Hz |
| Ripple Current @ High Frequency | 646 mA @ 10 kHz |
Stock: 7019
Distributors
pcbx
pcbxUnit Price$0.54459
Ext.Price$0.54459
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.54459 | $0.54459 |
| 10 | $0.26076 | $2.60760 |
| 25 | $0.24403 | $6.10075 |
| 50 | $0.22838 | $11.41900 |
| 100 | $0.21373 | $21.37300 |
| 300 | $0.17521 | $52.56300 |
| 500 | $0.14363 | $71.81500 |
| 1000 | $0.13850 | $138.50000 |
| 3000 | $0.13559 | $406.77000 |
| 5000 | $0.13274 | $663.70000 |
| 10000 | $0.12995 | $1299.50000 |
