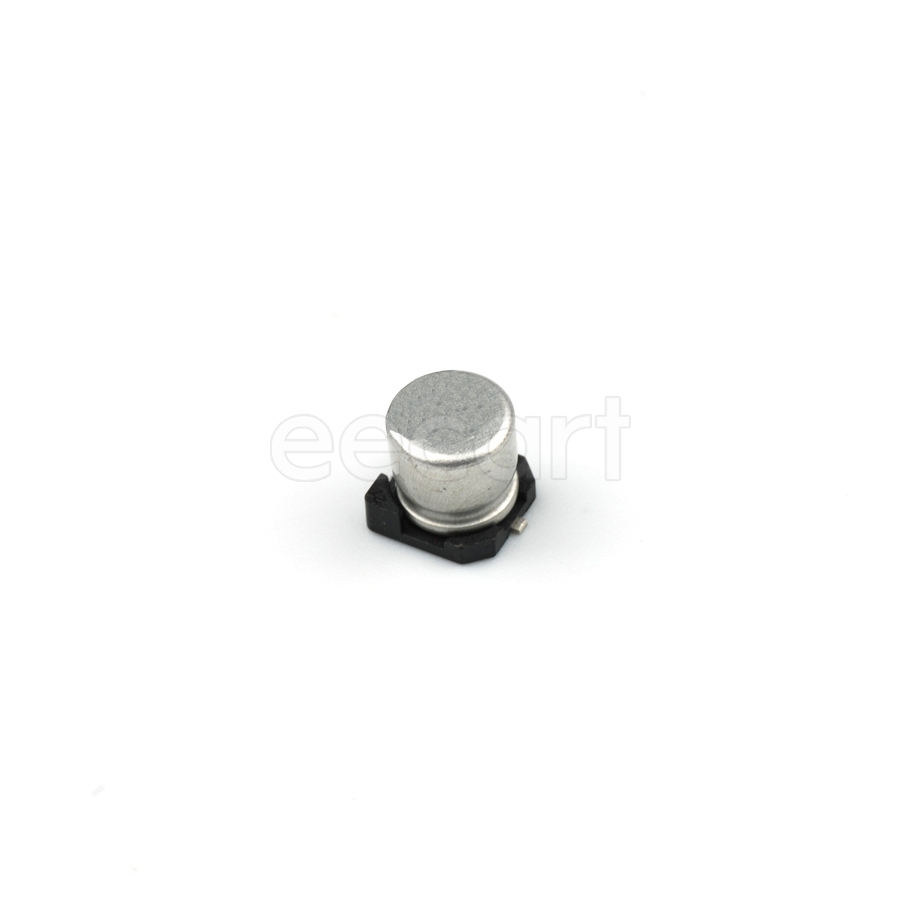

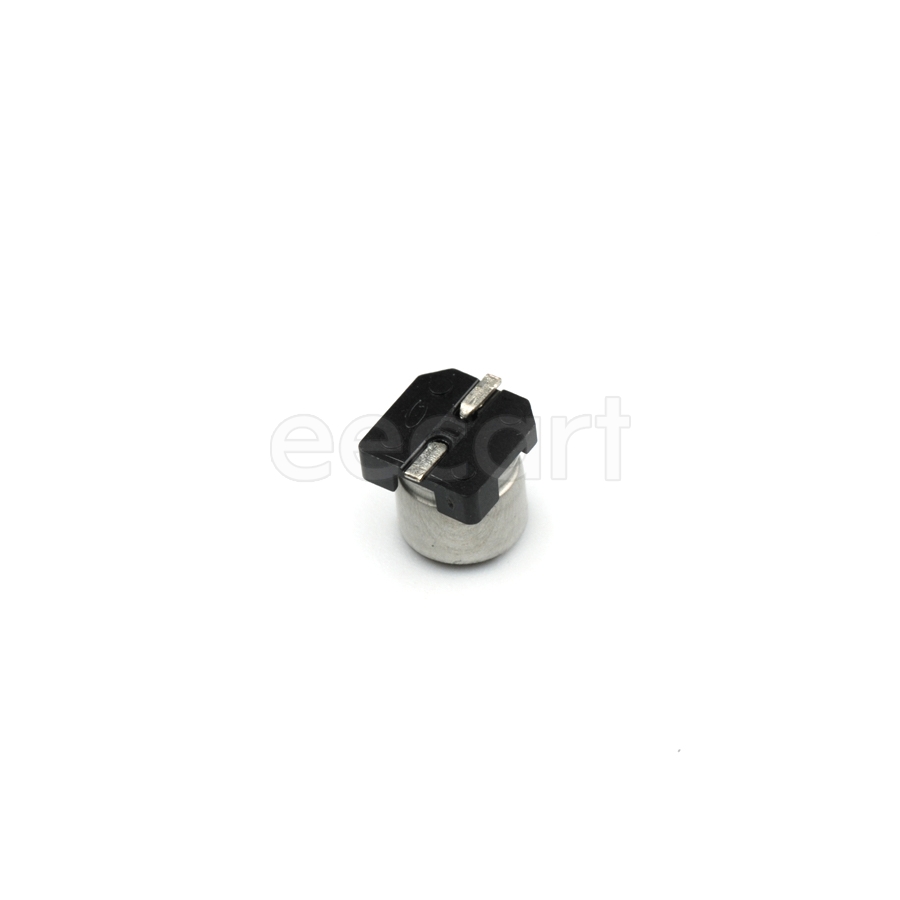

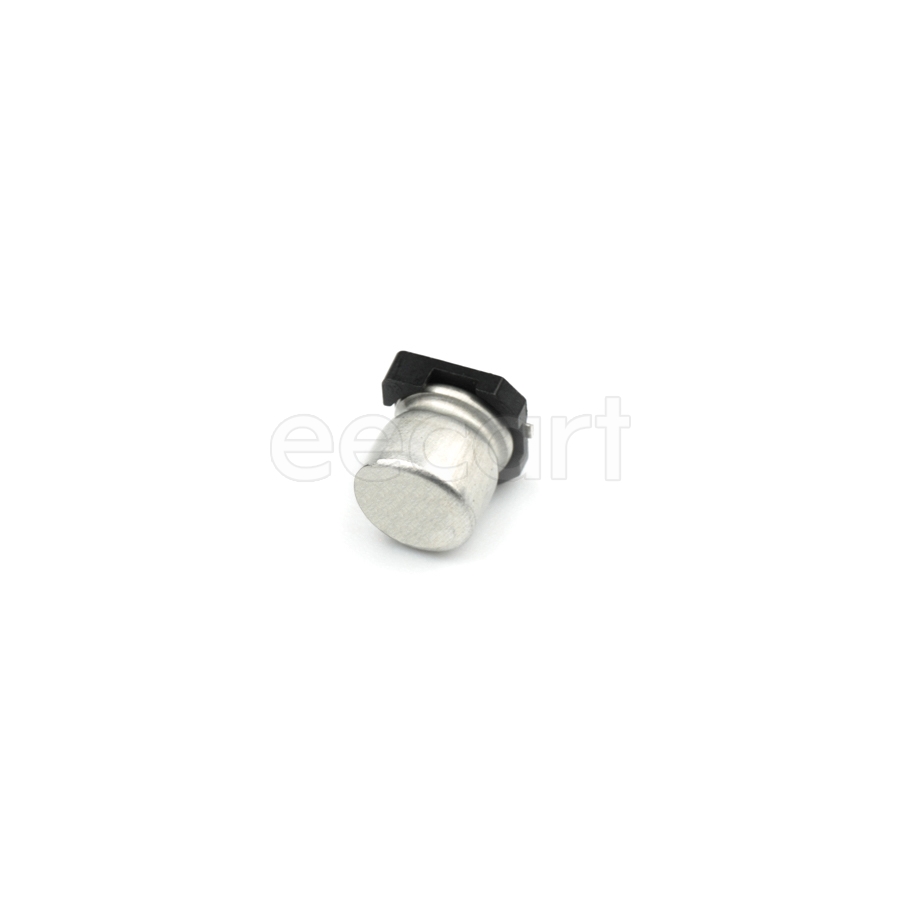

EEE-1VA100AR
Manufacturer:
Panasonic
Mfr.Part #:
EEE-1VA100AR
Datasheet:
Description:
Aluminum Electrolytic Capacitors SMD,5.00mm×5.40mm SMD/SMT 10 µF 20 % 35 V
| Parameter | Value |
|---|---|
| Capacitance | 10 µF |
| Voltage Rating (DC) | 35 V |
| Tolerance | 20 % |
| Life (Hours) | 2000 Hours |
| Ripple Current | 30 mA |
| Height - Seated (Max) | 5.4 mm |
| Length | 5.5 mm |
| Termination | SMD/SMT |
| Diameter | 5 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Leakage Current | 3 µA |
| Dissipation Factor | 0.12 % |
| Height | 6.5 mm |
| Packaging | Reel |
| Voltage Rating | 35 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Contact Plating | Tin |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Ripple Current @ High Frequency | 51 mA @ 10 kHz |
| Ripple Current @ Low Frequency | 30 mA @ 120 Hz |
Stock: 774
Distributors
pcbx
pcbxUnit Price$0.23169
Ext.Price$0.23169
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.23169 | $0.23169 |
| 10 | $0.10430 | $1.04300 |
| 50 | $0.09813 | $4.90650 |
| 100 | $0.09233 | $9.23300 |
| 500 | $0.07130 | $35.65000 |
| 1000 | $0.05070 | $50.70000 |
| 3000 | $0.05040 | $151.20000 |
| 5000 | $0.05010 | $250.50000 |
| 10000 | $0.04634 | $463.40000 |
