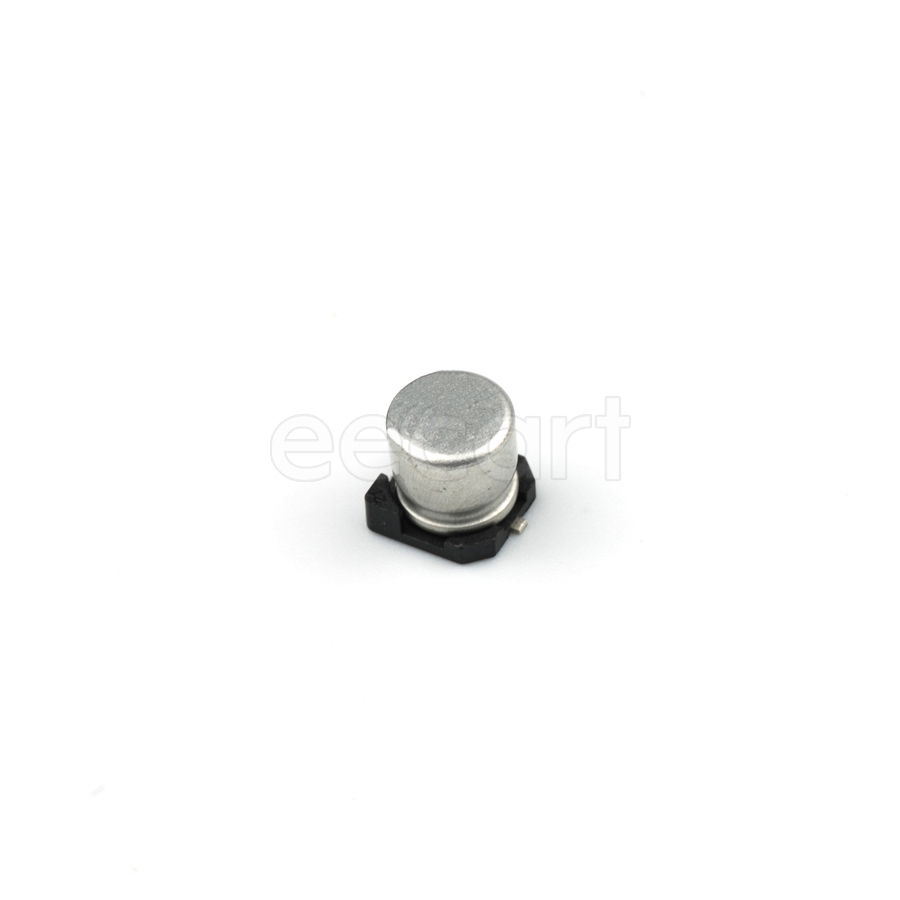

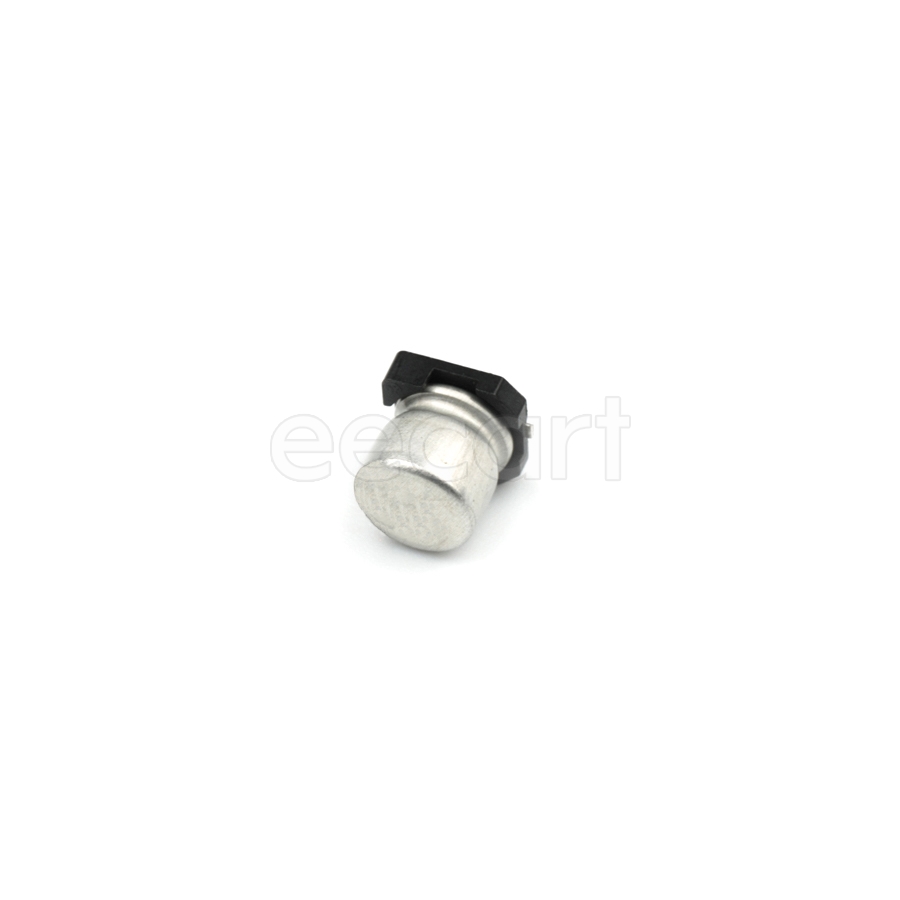

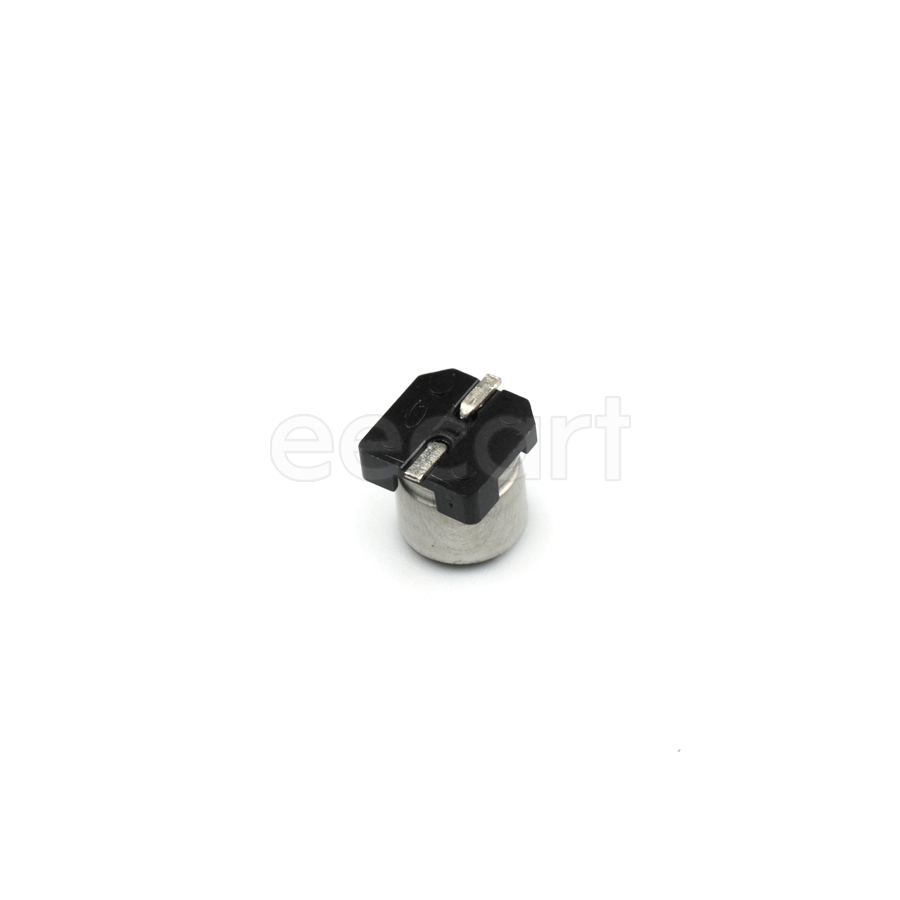

EEE-FC1C100R
Manufacturer:
Panasonic
Mfr.Part #:
EEE-FC1C100R
Datasheet:
Description:
Aluminum Electrolytic Capacitors SMD,4.00mm×5.40mm SMD/SMT 10 µF 20 % 16 V
| Parameter | Value |
|---|---|
| Capacitance | 10 µF |
| Voltage Rating (DC) | 16 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 3 Ω |
| Life (Hours) | 1000 Hours |
| Ripple Current | 60 mA |
| Height - Seated (Max) | 5.4 mm |
| Length | 5.5 mm |
| Width | 4.3 mm |
| Termination | SMD/SMT |
| Diameter | 4 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 16 V |
| Number of Pins | 2 |
| Leakage Current | 3 µA |
| Height | 5.4 mm |
| Material | Aluminium |
| Packaging | Reel |
| Voltage Rating | 16 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1 mm |
| Voltage | 16 V |
| REACH SVHC | No SVHC |
| Dielectric Material | Aluminium |
| Contact Plating | Tin |
| Impedance | 3 Ω |
| Ripple Current (AC) | 50 mA |
| Lead Length | 1.8 mm |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Schedule B | 8532220020 |
| Ripple Current @ Low Frequency | 45 mA @ 120 Hz |
| Ripple Current @ High Frequency | 60 mA @ 100 kHz |
Stock: 26369
Distributors
pcbx
pcbxUnit Price$0.21287
Ext.Price$0.21287
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.21287 | $0.21287 |
| 10 | $0.08387 | $0.83870 |
| 50 | $0.07733 | $3.86650 |
| 100 | $0.07130 | $7.13000 |
| 500 | $0.06574 | $32.87000 |
| 1000 | $0.05942 | $59.42000 |
| 3000 | $0.05237 | $157.11000 |
| 5000 | $0.04616 | $230.80000 |
| 10000 | $0.04069 | $406.90000 |
