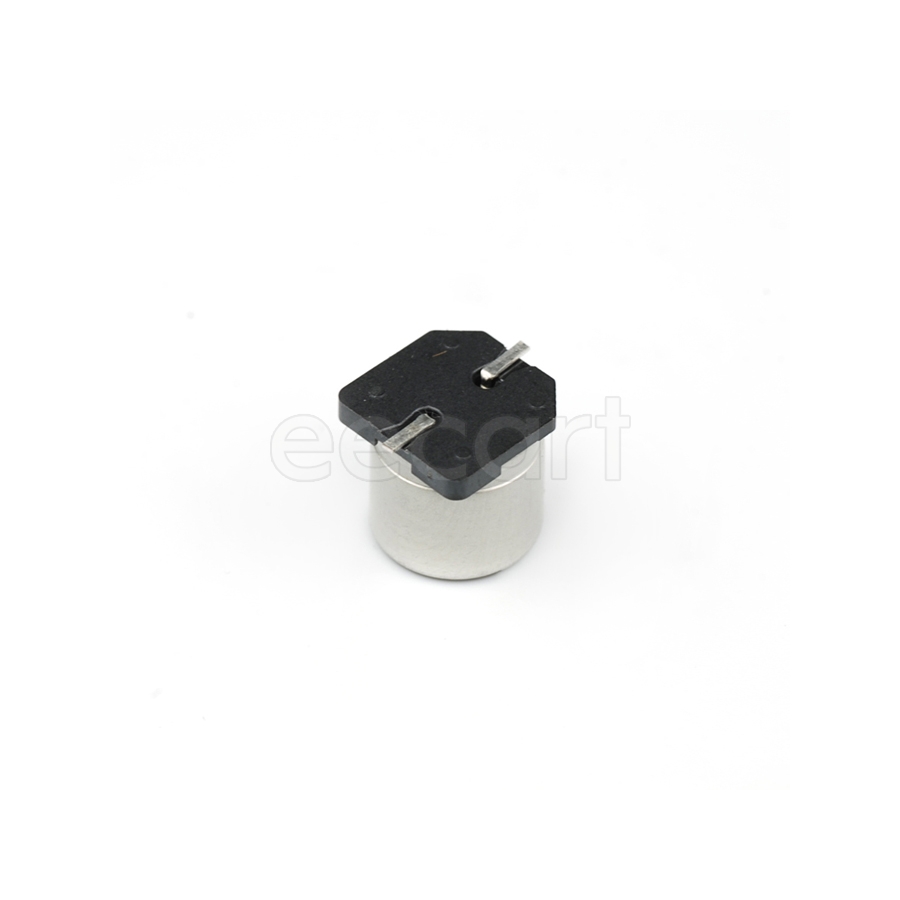

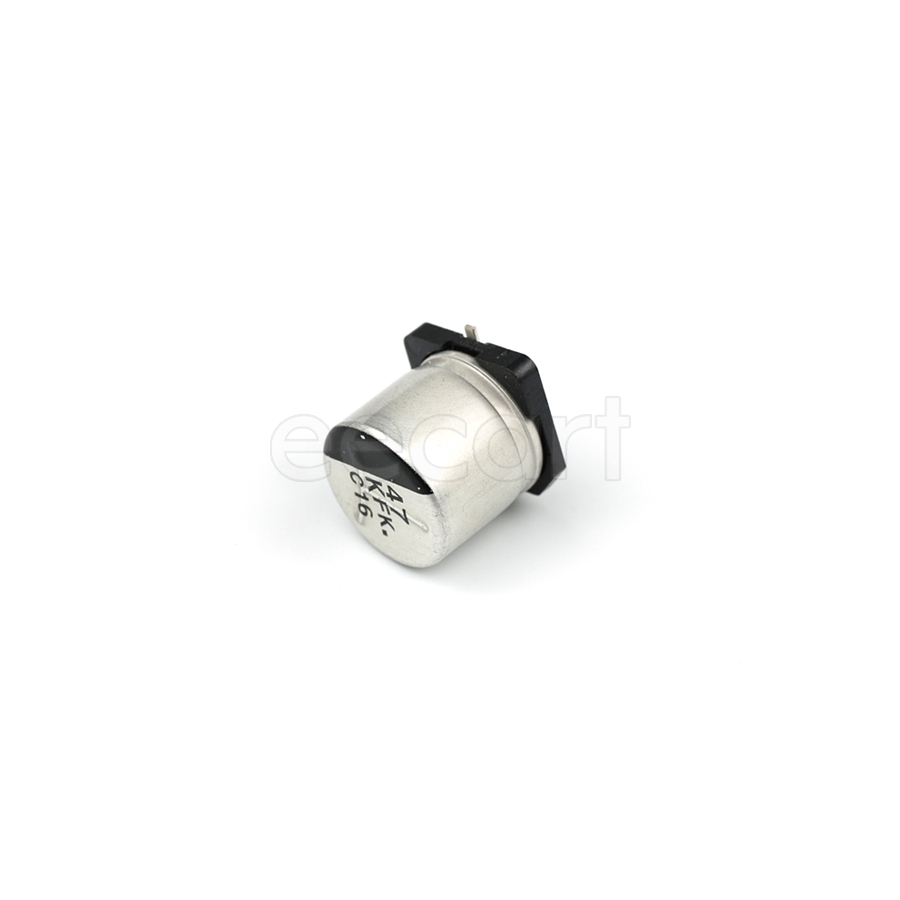

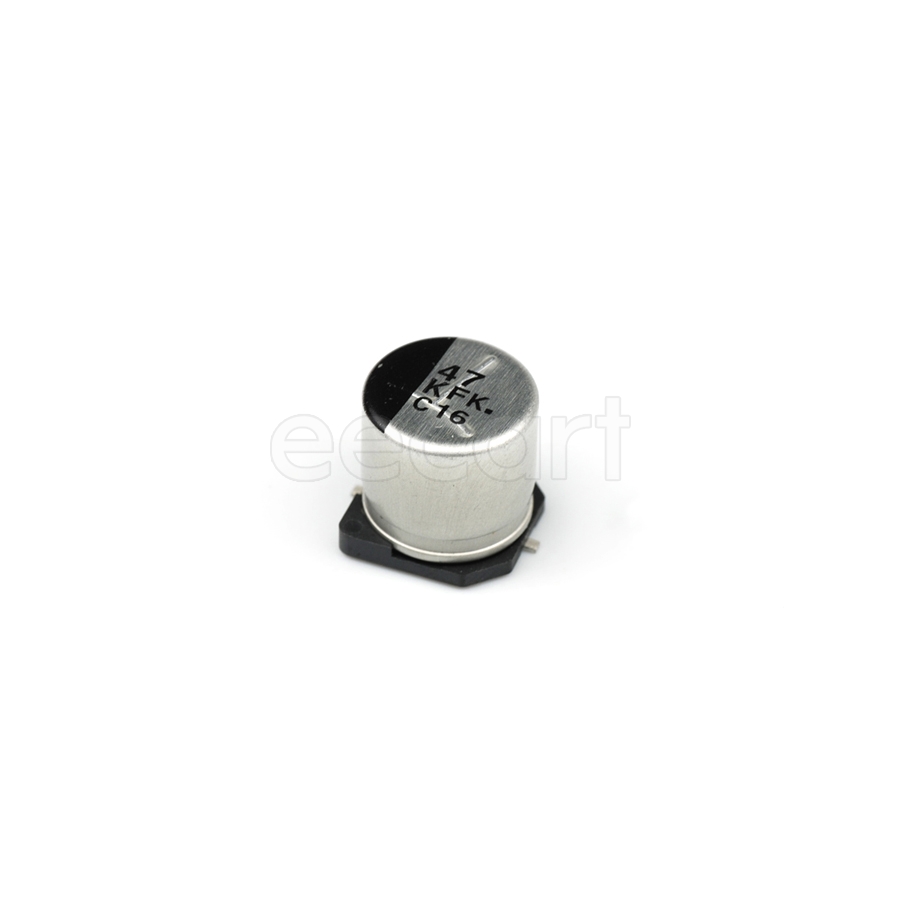

EEE-FC1H101P
Manufacturer:
Panasonic
Mfr.Part #:
EEE-FC1H101P
Datasheet:
Description:
Aluminum Electrolytic Capacitors SMD,10.00mm×10.20mm SMD/SMT 100 µF 20 % 50 V
| Parameter | Value |
|---|---|
| Capacitance | 100 µF |
| Voltage Rating (DC) | 50 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 300 mΩ |
| Life (Hours) | 1000 Hours |
| Ripple Current | 500 mA |
| Height - Seated (Max) | 10.2 mm |
| Length | 10.5 mm |
| Width | 900 µm |
| Termination | SMD/SMT |
| Diameter | 10 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Leakage Current | 3 µA |
| Height | 10.2 mm |
| Material | Aluminium |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Voltage | 50 V |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Impedance | 300 mΩ |
| Ripple Current (AC) | 500 mA |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Schedule B | 8532220020 |
| Ripple Current @ Low Frequency | 375 mA @ 120 Hz |
| Ripple Current @ High Frequency | 500 mA @ 100 kHz |
Stock: 44
Distributors
pcbx
pcbxUnit Price$0.54459
Ext.Price$0.54459
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.54459 | $0.54459 |
| 10 | $0.26076 | $2.60760 |
| 25 | $0.25130 | $6.28250 |
| 50 | $0.24218 | $12.10900 |
| 100 | $0.23340 | $23.34000 |
| 300 | $0.18740 | $56.22000 |
| 500 | $0.15047 | $75.23500 |
| 1000 | $0.14448 | $144.48000 |
| 3000 | $0.14058 | $421.74000 |
| 5000 | $0.13679 | $683.95000 |
