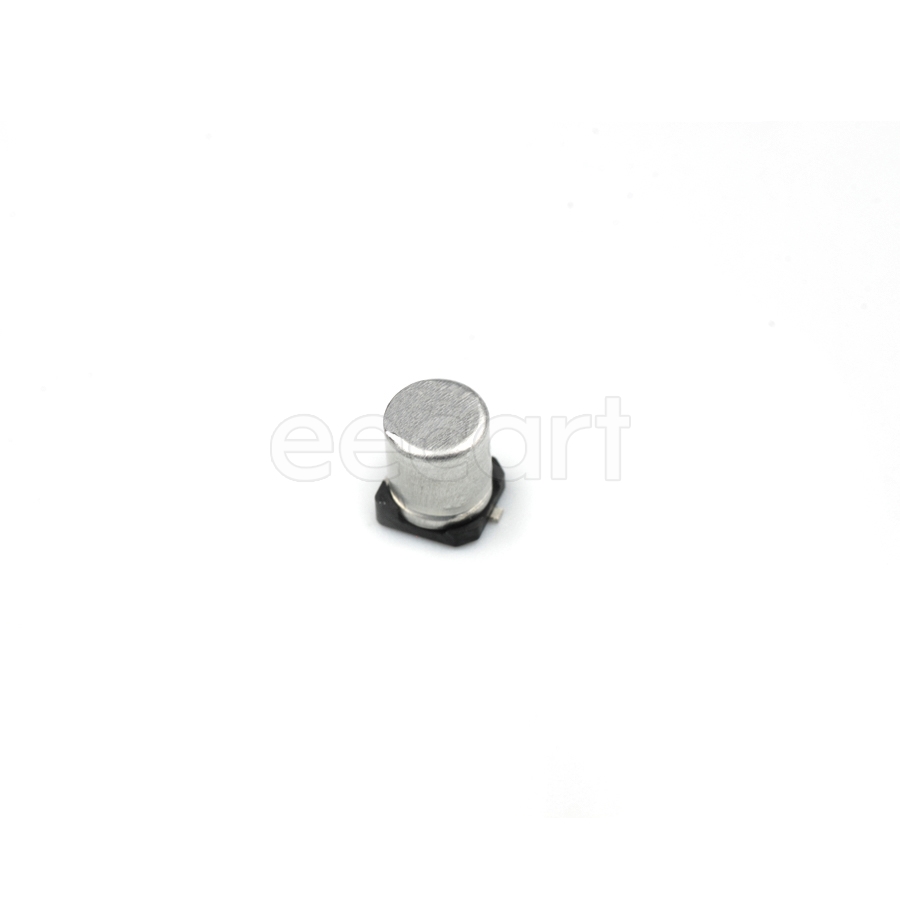

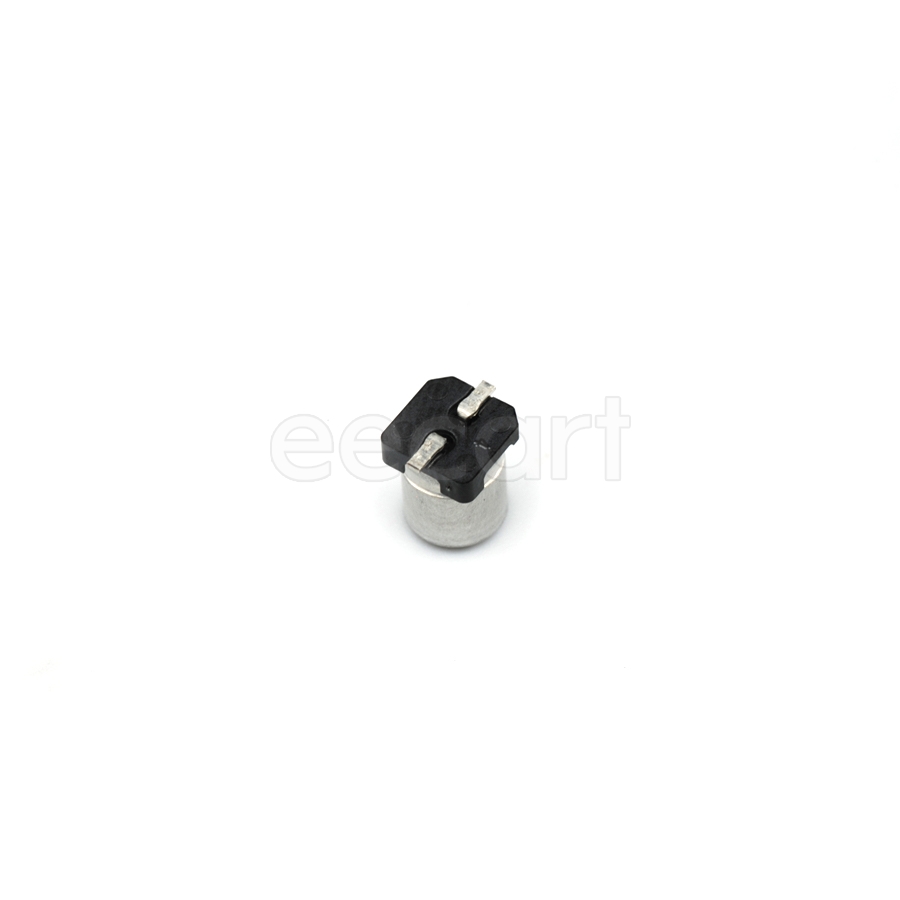

EEE-FK0J220R
Manufacturer:
Panasonic
Mfr.Part #:
EEE-FK0J220R
Datasheet:
Description:
Aluminum Electrolytic Capacitors SMD,4.00mm×5.80mm SMD/SMT 22 µF 20 % 6.3 V
| Parameter | Value |
|---|---|
| Capacitance | 22 µF |
| Voltage Rating (DC) | 6.3 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 1.35 Ω |
| Life (Hours) | 2000 Hours |
| Ripple Current | 90 mA |
| Height - Seated (Max) | 5.8 mm |
| Length | 5.8 mm |
| Width | 5.5 mm |
| Termination | SMD/SMT |
| Diameter | 4 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Leakage Current | 3 µA |
| Height | 5.8 mm |
| Packaging | Reel |
| Voltage Rating | 6.3 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Voltage | 6.3 V |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Impedance | 1.35 Ω |
| Ripple Current (AC) | 90 mA |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Schedule B | 8532220020 |
| Ripple Current @ Low Frequency | 67.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 90 mA @ 100 kHz |
Stock: 3170
Distributors
pcbx
pcbxUnit Price$0.26246
Ext.Price$0.26246
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.26246 | $0.26246 |
| 10 | $0.11798 | $1.17980 |
| 50 | $0.11139 | $5.56950 |
| 100 | $0.10516 | $10.51600 |
| 500 | $0.08139 | $40.69500 |
| 1000 | $0.07447 | $74.47000 |
| 3000 | $0.06709 | $201.27000 |
| 5000 | $0.06044 | $302.20000 |
| 10000 | $0.05446 | $544.60000 |
