EEE-FK0J221P
Manufacturer:
Panasonic
Mfr.Part #:
EEE-FK0J221P
Datasheet:
Description:

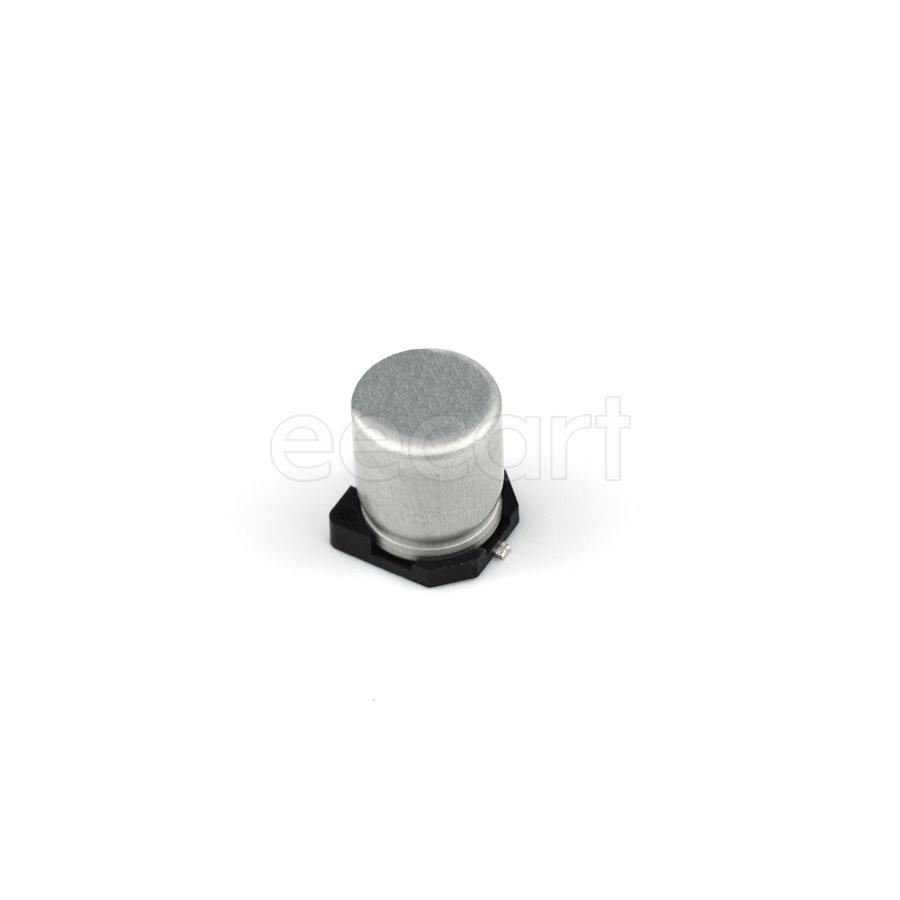

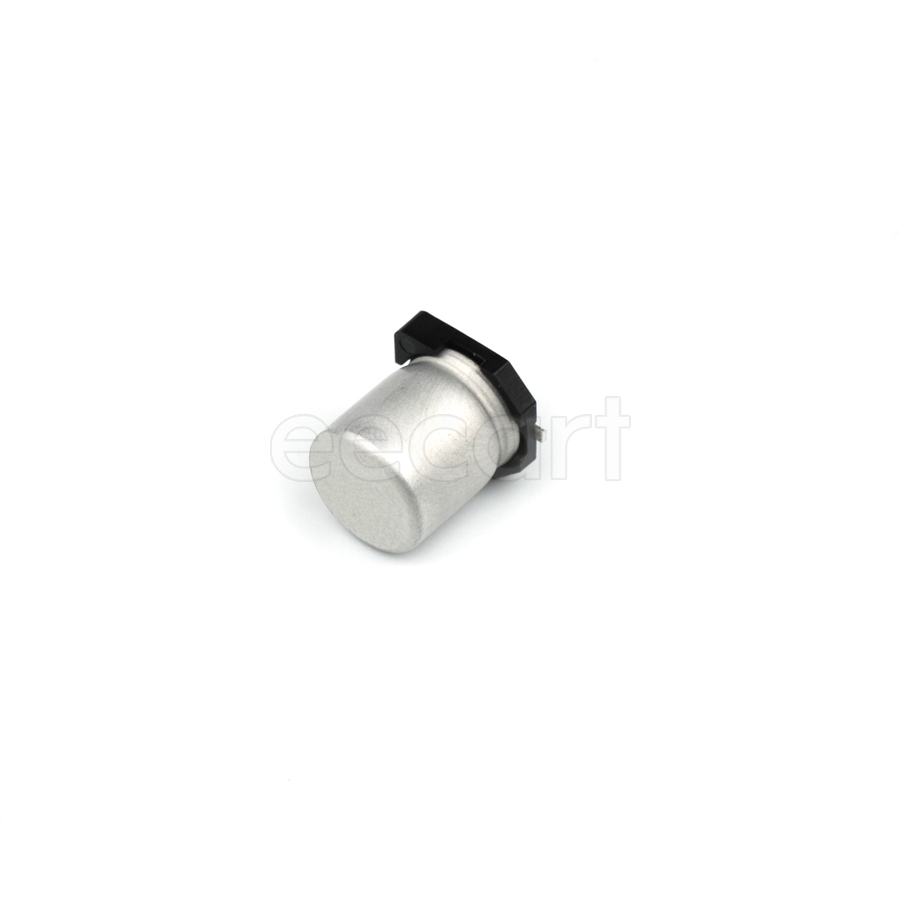

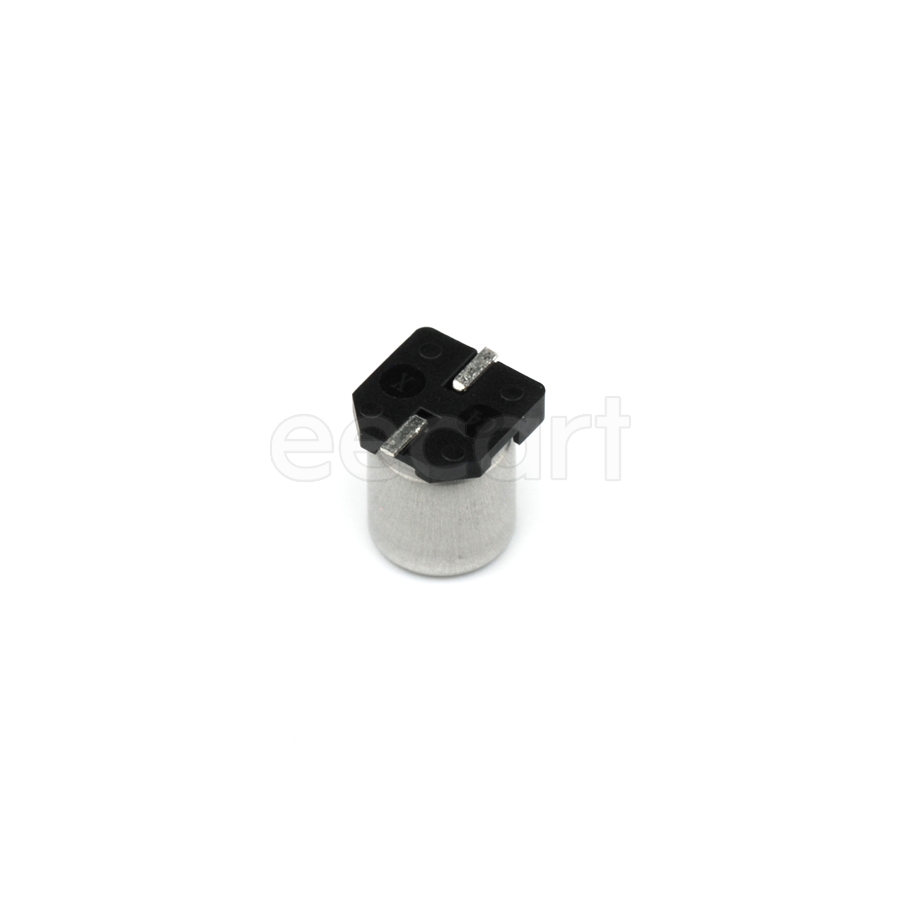

Aluminum Electrolytic Capacitors SMD,6.30mm×5.80mm SMD/SMT 220 µF 20 % 6.3 V
| Parameter | Value |
|---|---|
| Capacitance | 220 µF |
| Voltage Rating (DC) | 6.3 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 360 mΩ |
| Life (Hours) | 2000 Hours |
| Ripple Current | 240 mA |
| Height - Seated (Max) | 5.8 mm |
| Length | 5.8 mm |
| Width | 7.8 mm |
| Termination | SMD/SMT |
| Diameter | 6.3 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Leakage Current | 3 µA |
| Dissipation Factor | 26 % |
| Height | 5.8 mm |
| Material | Aluminium |
| Packaging | Reel |
| Voltage Rating | 6.3 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Voltage | 6.3 V |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Impedance | 360 mΩ |
| Ripple Current (AC) | 240 mA |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Schedule B | 8532220020 |
| Ripple Current @ Low Frequency | 180 mA @ 120 Hz |
| Ripple Current @ High Frequency | 240 mA @ 100 kHz |
Stock: 247
Distributors
pcbx
pcbxUnit Price$0.30692
Ext.Price$0.30692
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.30692 | $0.30692 |
| 10 | $0.14021 | $1.40210 |
| 50 | $0.13229 | $6.61450 |
| 100 | $0.12482 | $12.48200 |
| 500 | $0.09746 | $48.73000 |
| 1000 | $0.07447 | $74.47000 |
| 3000 | $0.07060 | $211.80000 |
| 5000 | $0.06694 | $334.70000 |
| 10000 | $0.06386 | $638.60000 |
