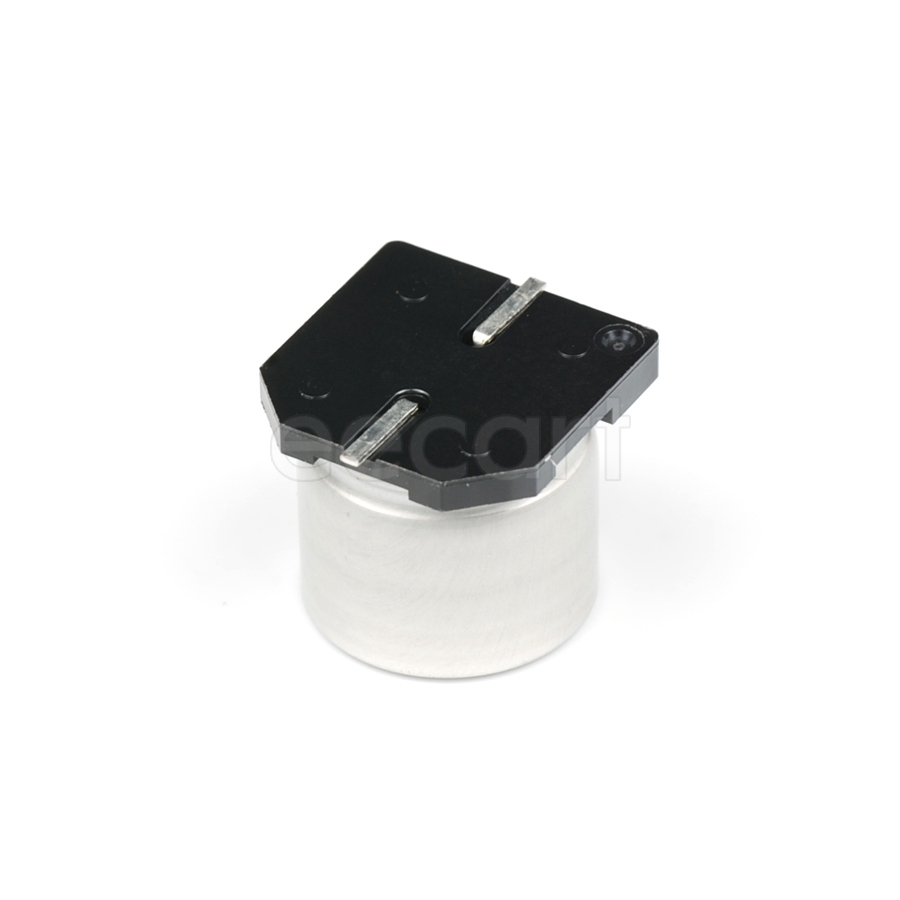

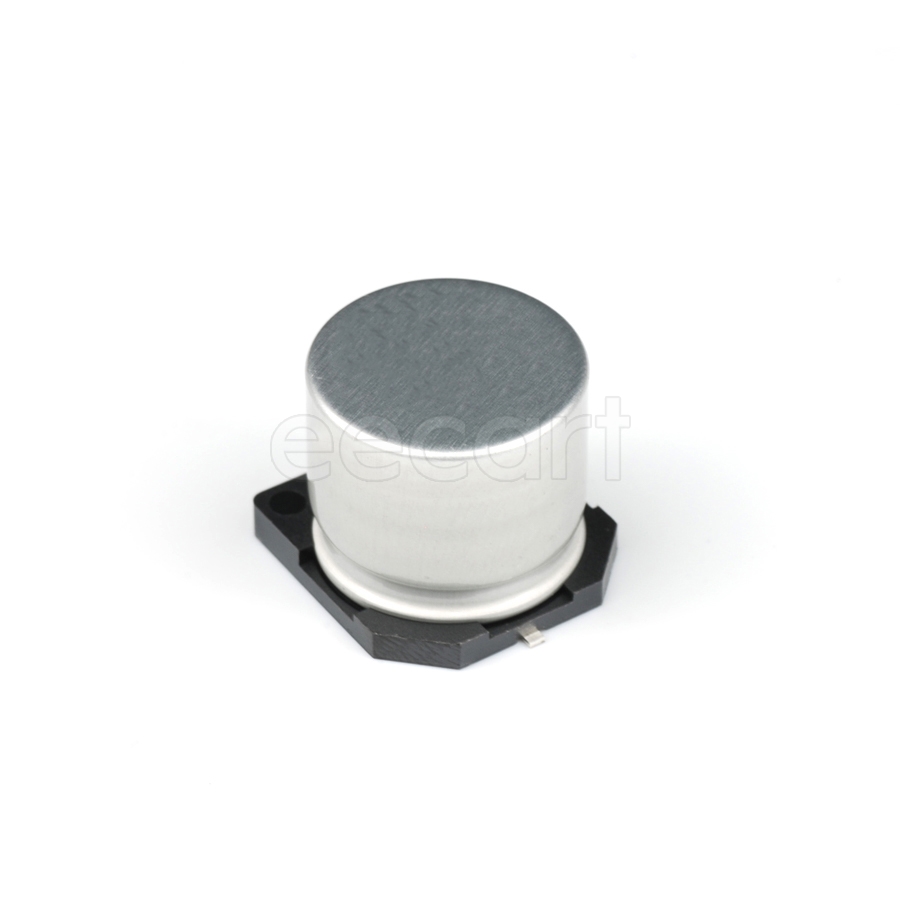

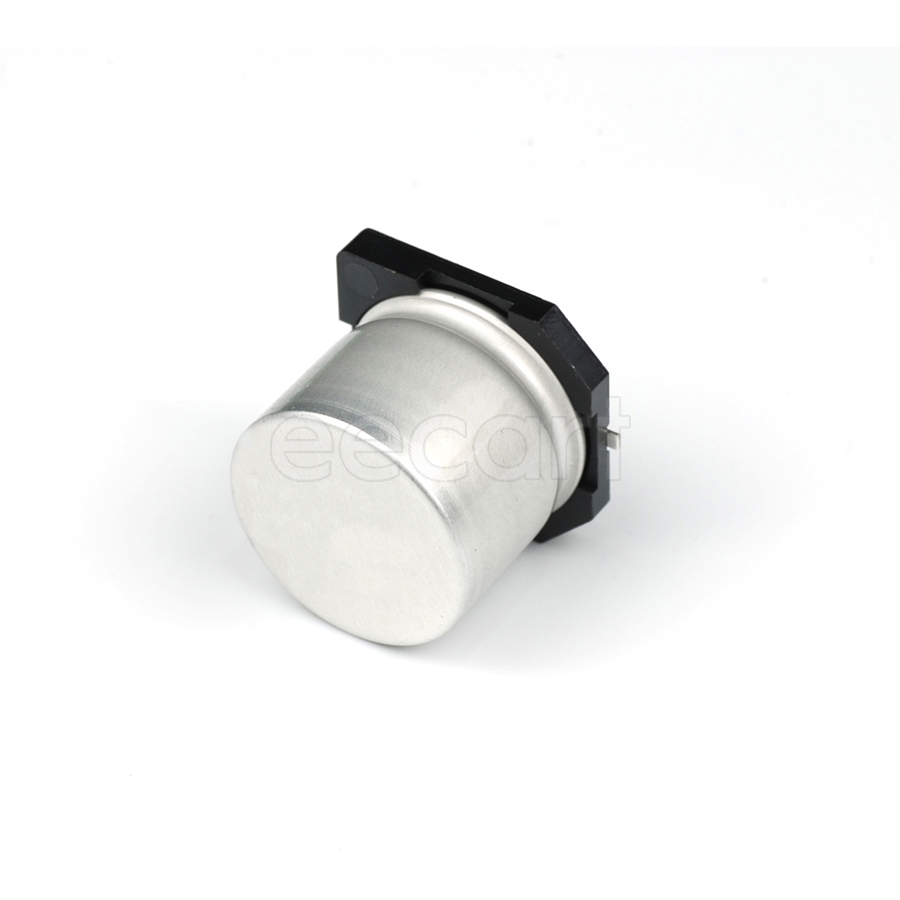

EEE-FK1E332AM
Manufacturer:
Panasonic
Mfr.Part #:
EEE-FK1E332AM
Datasheet:
Description:
Aluminum Electrolytic Capacitors SMD,18.00mm×16.50mm SMD/SMT 3.3 mF 20 % 25 V
| Parameter | Value |
|---|---|
| Capacitance | 3.3 mF |
| Voltage Rating (DC) | 25 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 33 mΩ |
| Life (Hours) | 5000 Hours |
| Ripple Current | 2.06 A |
| Height - Seated (Max) | 16.5 mm |
| Length | 16.5 mm |
| Termination | SMD/SMT |
| Diameter | 18 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Dissipation Factor | 0.18 % |
| Height | 16.5 mm |
| Packaging | Reel |
| Voltage Rating | 25 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Voltage | 25 V |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Impedance | 33 mΩ |
| Ripple Current (AC) | 2.06 A |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Schedule B | 8532220020 |
| Ripple Current @ Low Frequency | 1.545 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.06 A @ 100 kHz |
Stock: 1146
Distributors
pcbx
pcbxUnit Price$1.80817
Ext.Price$1.80817
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.80817 | $1.80817 |
| 10 | $0.98231 | $9.82310 |
| 25 | $0.92787 | $23.19675 |
| 50 | $0.87645 | $43.82250 |
| 100 | $0.82788 | $82.78800 |
| 300 | $0.78200 | $234.60000 |
| 500 | $0.73866 | $369.33000 |
| 1000 | $0.67625 | $676.25000 |
