EEE-FK1E471GP
Manufacturer:
Panasonic
Mfr.Part #:
EEE-FK1E471GP
Datasheet:
Description:

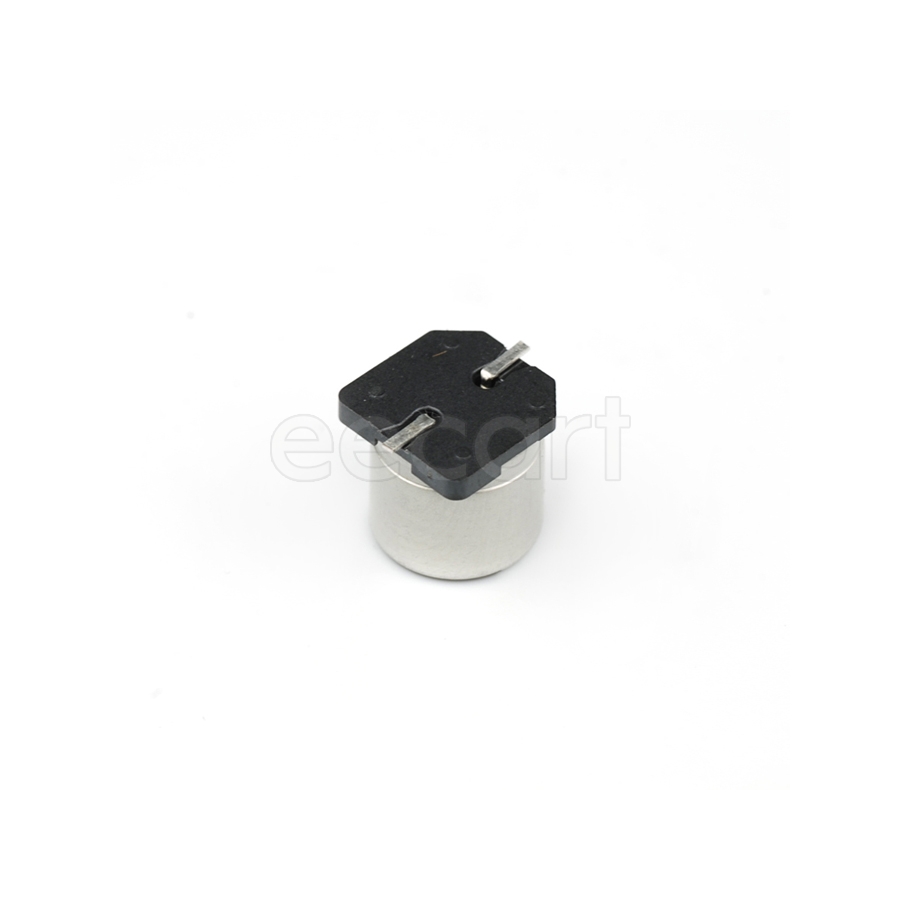

Aluminum Electrolytic Capacitors SMD,10.00mm×10.20mm SMD/SMT 470 µF 20 % 25 V
| Parameter | Value |
|---|---|
| Capacitance | 470 µF |
| Voltage Rating (DC) | 25 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 80 mΩ |
| Life (Hours) | 5000 Hours |
| Ripple Current | 850 mA |
| Height - Seated (Max) | 10.2 mm |
| Length | 10.2 mm |
| Width | 12 mm |
| Termination | SMD/SMT |
| Diameter | 10 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Leakage Current | 3 µA |
| Dissipation Factor | 0.14 % |
| Height | 10.2 mm |
| Packaging | Reel |
| Voltage Rating | 25 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Voltage | 25 V |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Impedance | 80 mΩ |
| Ripple Current (AC) | 850 mA |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Schedule B | 8532220020 |
| Ripple Current @ Low Frequency | 637.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 850 mA @ 100 kHz |
Stock: 2563
Distributors
pcbx
pcbxUnit Price$0.70104
Ext.Price$0.70104
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.70104 | $0.70104 |
| 10 | $0.34197 | $3.41970 |
| 25 | $0.33047 | $8.26175 |
| 50 | $0.31936 | $15.96800 |
| 100 | $0.30863 | $30.86300 |
| 300 | $0.25477 | $76.43100 |
| 500 | $0.21031 | $105.15500 |
| 1000 | $0.19065 | $190.65000 |
