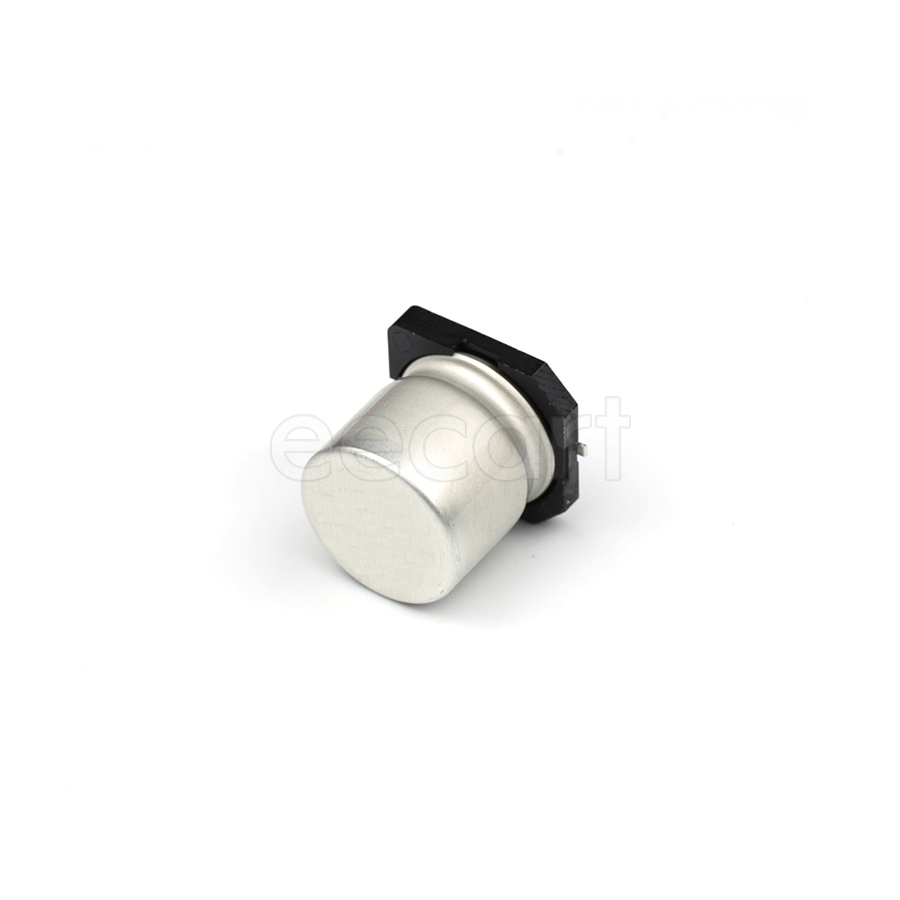

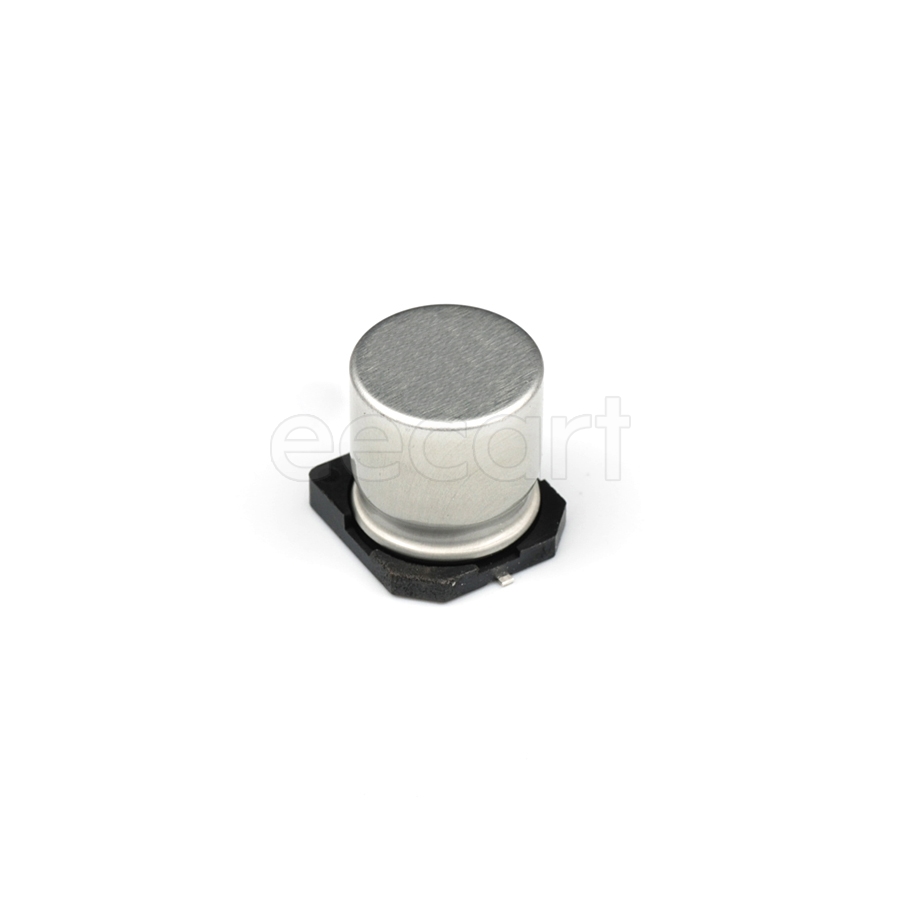

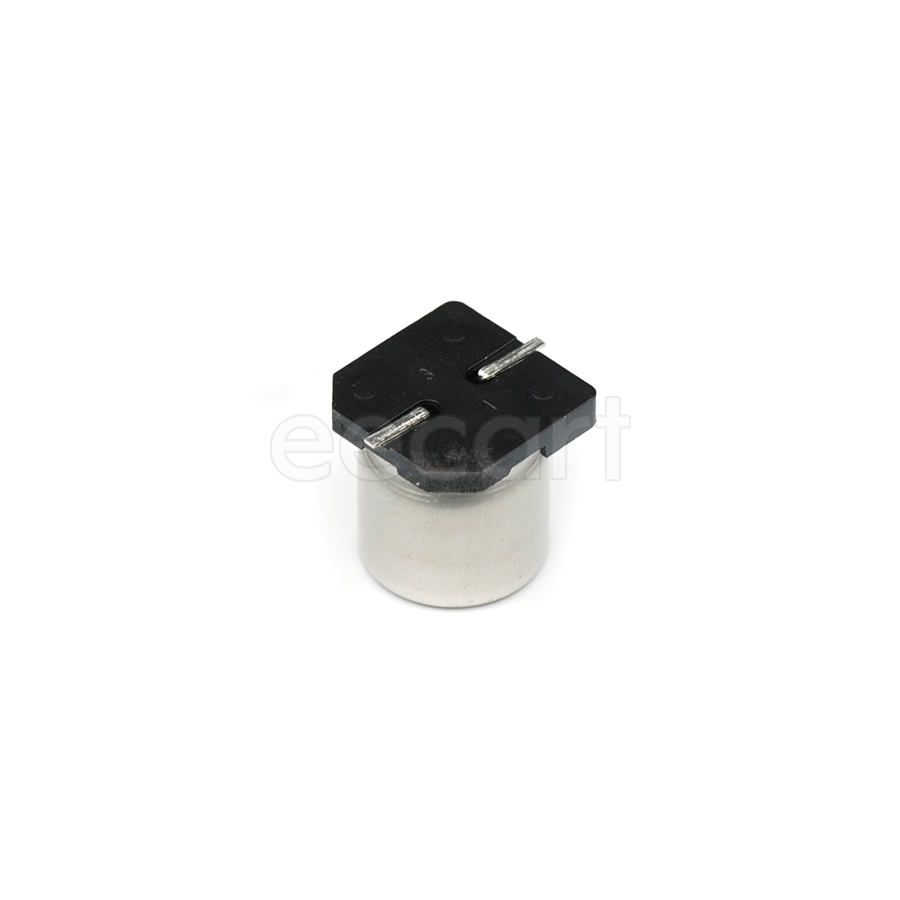

EEE-FK1H331AQ
Manufacturer:
Panasonic
Mfr.Part #:
EEE-FK1H331AQ
Datasheet:
Description:
Aluminum Electrolytic Capacitors SMD,12.50mm×13.50mm SMD/SMT 330 µF 20 % 50 V
| Parameter | Value |
|---|---|
| Capacitance | 330 µF |
| Voltage Rating (DC) | 50 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 120 mΩ |
| Life (Hours) | 5000 Hours |
| Ripple Current | 900 mA |
| Height - Seated (Max) | 13.5 mm |
| Length | 13.5 mm |
| Termination | SMD/SMT |
| Diameter | 12.5 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Dissipation Factor | 0.12 % |
| Height | 13.5 mm |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Voltage | 50 V |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Impedance | 120 mΩ |
| Ripple Current (AC) | 900 mA |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Schedule B | 8532220020 |
| Ripple Current @ Low Frequency | 675 mA @ 120 Hz |
| Ripple Current @ High Frequency | 900 mA @ 100 kHz |
