EEE-HA1C470WR
Manufacturer:
Panasonic
Mfr.Part #:
EEE-HA1C470WR
Datasheet:
Description:

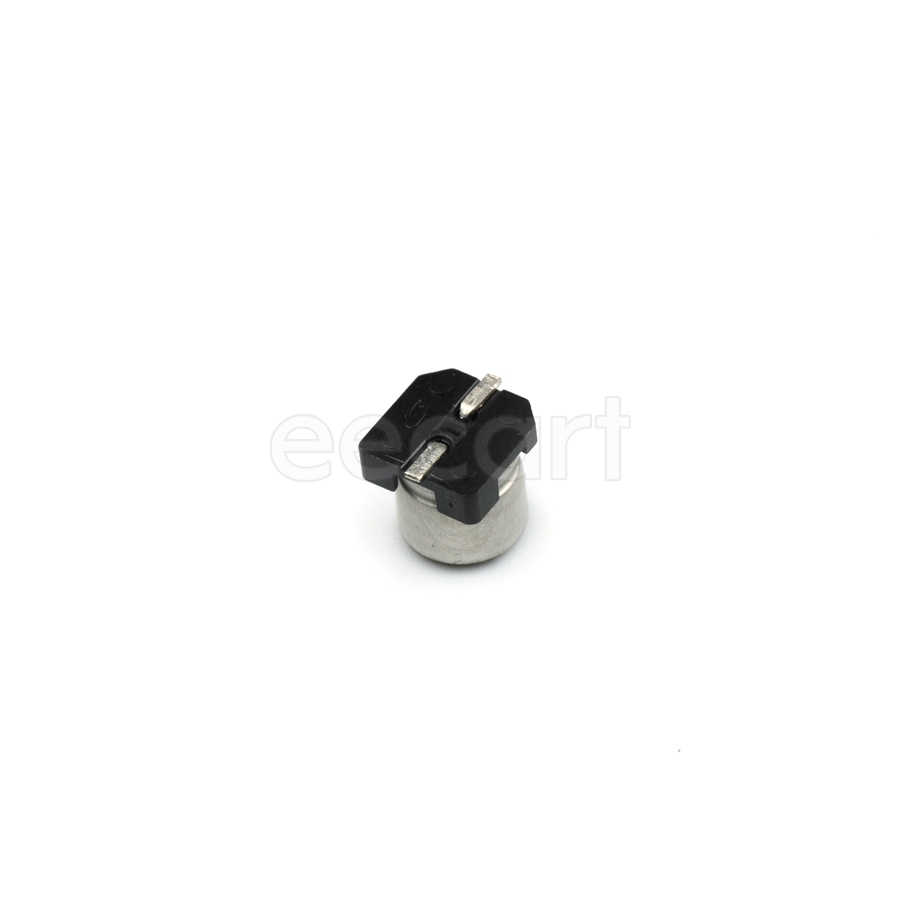

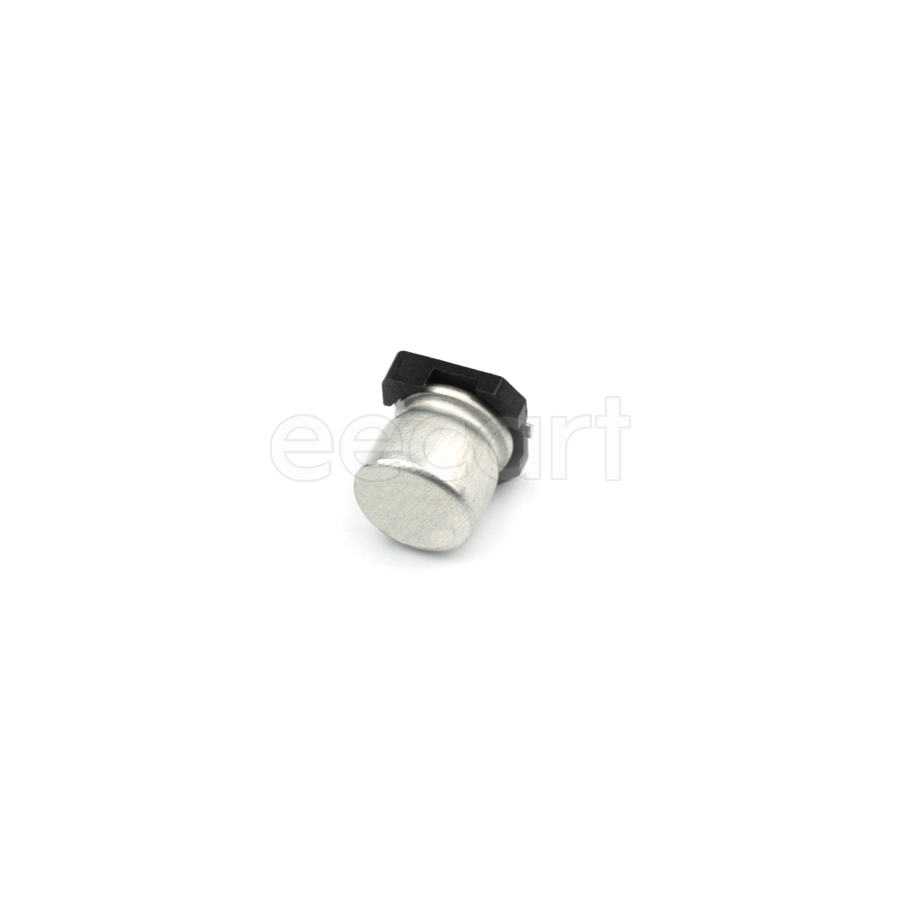

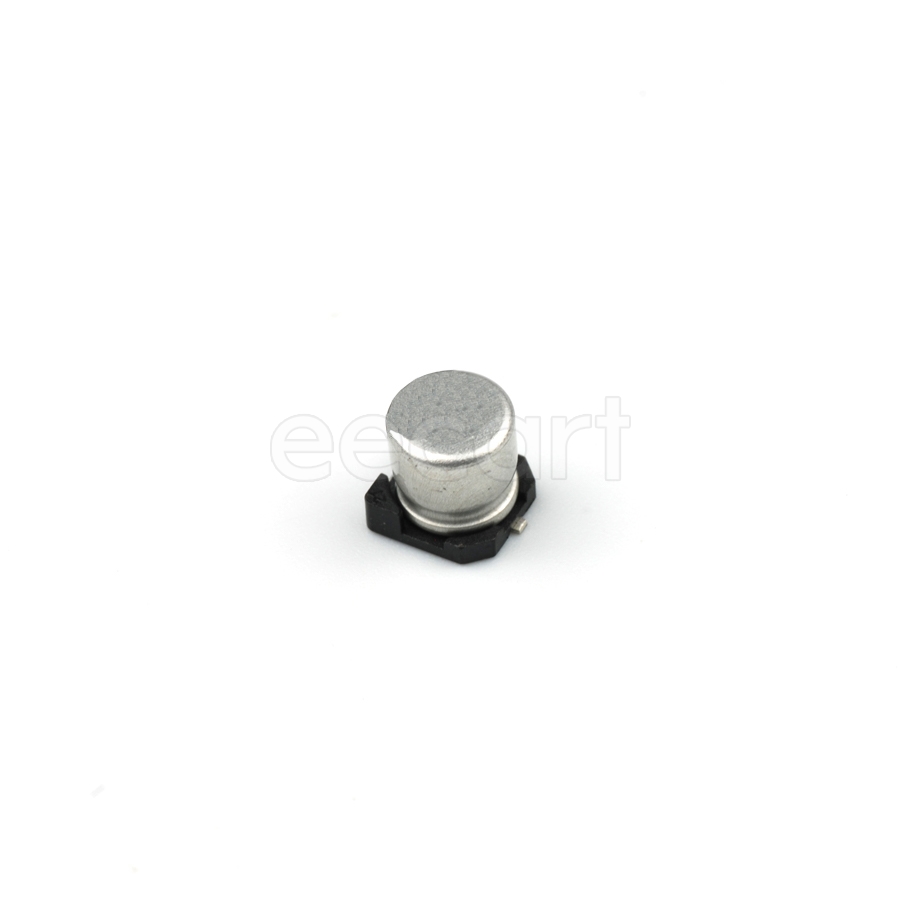

Aluminum Electrolytic Capacitors SMD,5.00mm×5.40mm SMD/SMT 47 µF 20 % 16 V
| Parameter | Value |
|---|---|
| Capacitance | 47 µF |
| Voltage Rating (DC) | 16 V |
| Tolerance | 20 % |
| Life (Hours) | 1000 Hours |
| Ripple Current | 39 mA |
| Height - Seated (Max) | 5.4 mm |
| Length | 5.5 mm |
| Width | 650 µm |
| Termination | SMD/SMT |
| Diameter | 5 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Leakage Current | 7.5 µA |
| Height | 5.4 mm |
| Packaging | Reel |
| Voltage Rating | 16 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Lead Diameter | 650 µm |
| Voltage | 16 V |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Ripple Current (AC) | 39 mA |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Schedule B | 8532220020 |
| Ripple Current @ High Frequency | 66.3 mA @ 10 kHz |
| Ripple Current @ Low Frequency | 39 mA @ 120 Hz |
Stock: 796
Distributors
pcbx
pcbxUnit Price$0.19407
Ext.Price$0.19407
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.19407 | $0.19407 |
| 10 | $0.10857 | $1.08570 |
| 50 | $0.09730 | $4.86500 |
| 100 | $0.08720 | $8.72000 |
| 500 | $0.07318 | $36.59000 |
| 1000 | $0.06386 | $63.86000 |
| 3000 | $0.05549 | $166.47000 |
| 5000 | $0.04822 | $241.10000 |
| 10000 | $0.04634 | $463.40000 |
