EEE-HC1V221P
Manufacturer:
Panasonic
Mfr.Part #:
EEE-HC1V221P
Datasheet:
Description:

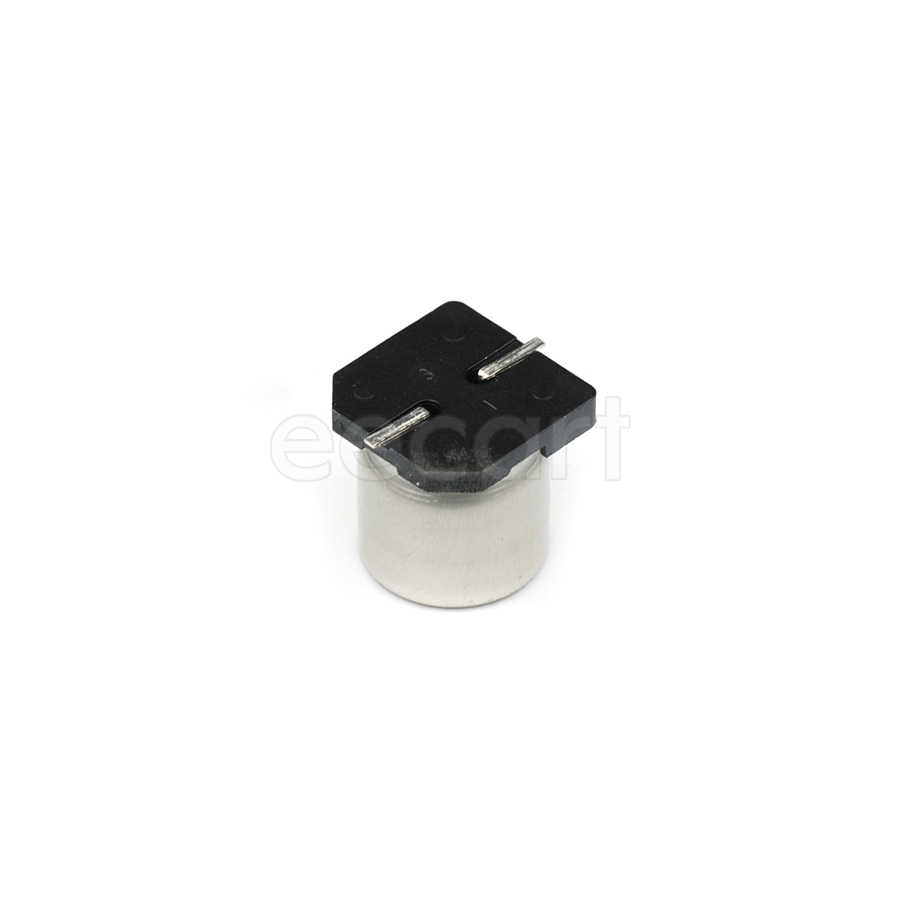

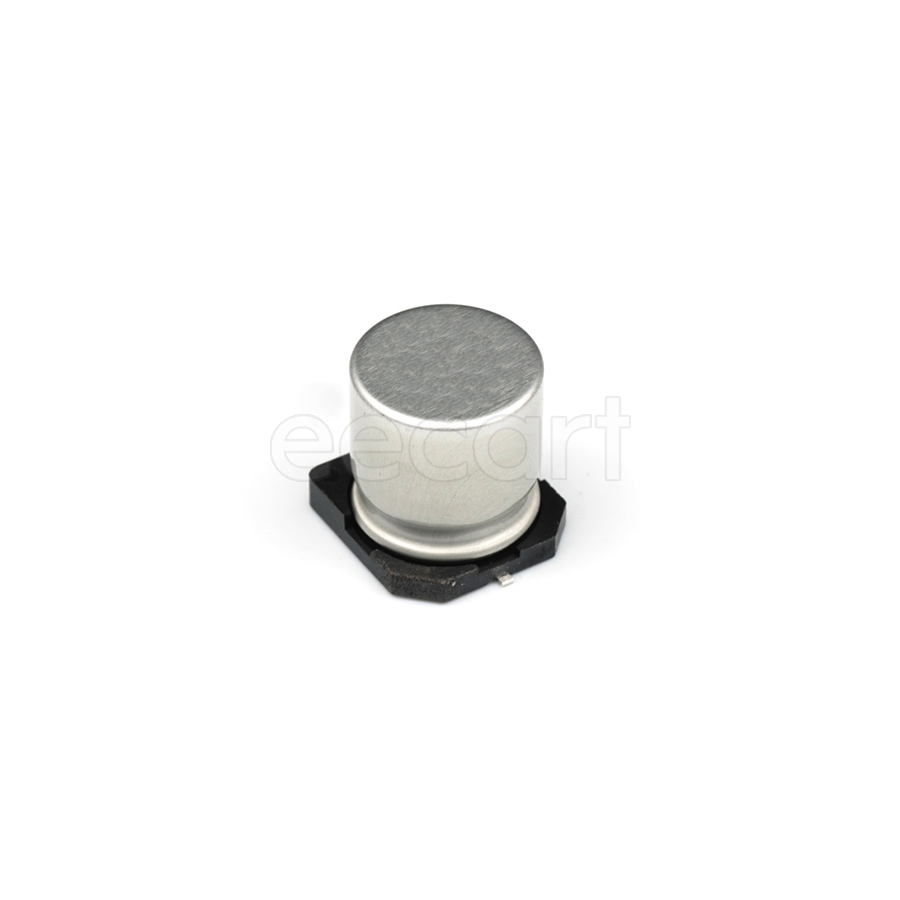

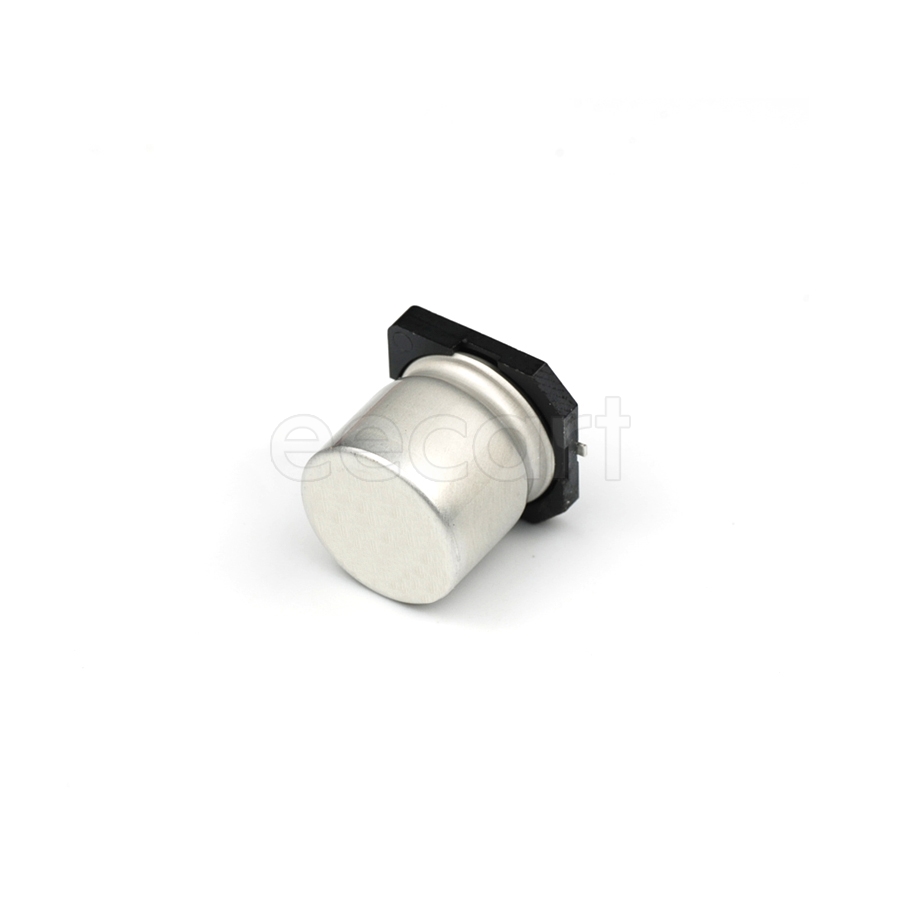

Aluminum Electrolytic Capacitors SMD,10.00mm×10.20mm SMD/SMT 220 µF 20 % 35 V
| Parameter | Value |
|---|---|
| Capacitance | 220 µF |
| Voltage Rating (DC) | 35 V |
| Tolerance | 20 % |
| Life (Hours) | 5000 Hours |
| Ripple Current | 220 mA |
| Height - Seated (Max) | 10.2 mm |
| Length | 10.2 mm |
| Width | 900 µm |
| Termination | SMD/SMT |
| Diameter | 10 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Leakage Current | 3 µA |
| Height | 10.2 mm |
| Packaging | Reel |
| Voltage Rating | 35 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Voltage | 35 V |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Ripple Current (AC) | 220 mA |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Schedule B | 8532220020 |
| Ripple Current @ Low Frequency | 220 mA @ 120 Hz |
| Ripple Current @ High Frequency | 374 mA @ 10 kHz |
Stock: 627
Distributors
pcbx
pcbxUnit Price$0.55656
Ext.Price$0.55656
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.55656 | $0.55656 |
| 10 | $0.29324 | $2.93240 |
| 25 | $0.27792 | $6.94800 |
| 50 | $0.26340 | $13.17000 |
| 100 | $0.24964 | $24.96400 |
| 300 | $0.21570 | $64.71000 |
| 500 | $0.18637 | $93.18500 |
| 1000 | $0.16927 | $169.27000 |
| 3000 | $0.16273 | $488.19000 |
| 5000 | $0.15645 | $782.25000 |
| 10000 | $0.15389 | $1538.90000 |
