EEE2AA100UP
Manufacturer:
Panasonic
Mfr.Part #:
EEE2AA100UP
Datasheet:
Description:

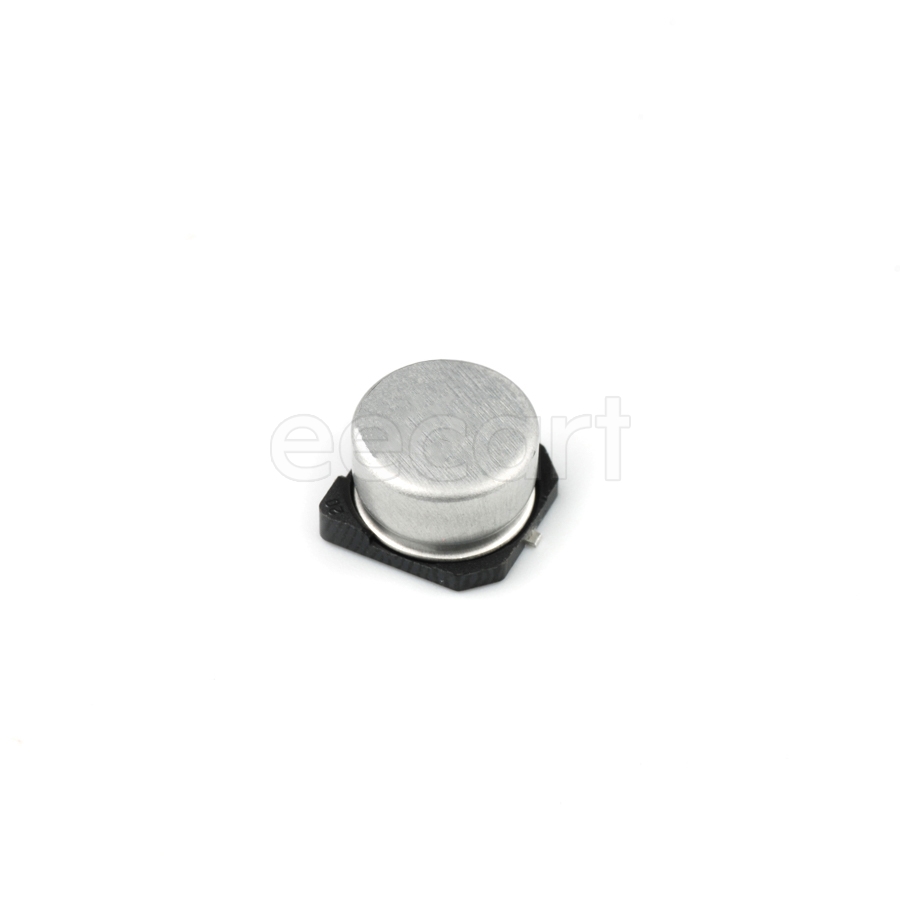

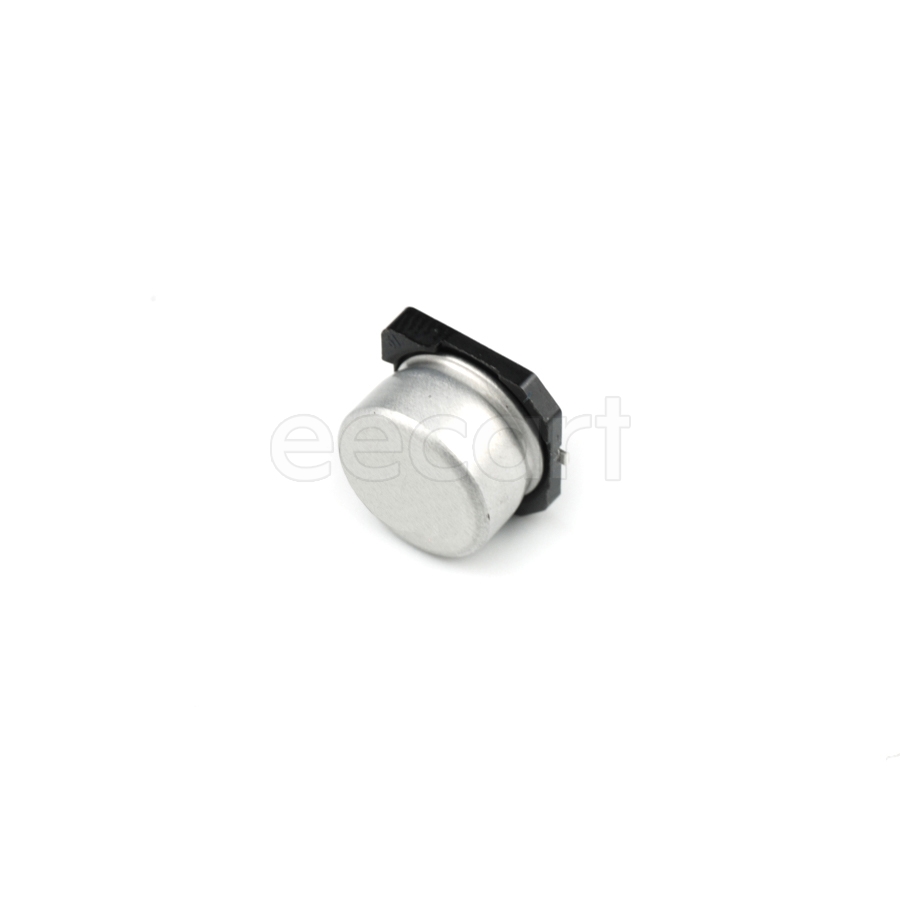

Aluminum Electrolytic Capacitors SMD,8.00mm×6.20mm SMD/SMT 10 µF 20 % 100 V
| Parameter | Value |
|---|---|
| Contact Plating | Tin |
| Height - Seated (Max) | 6.2 mm |
| Lead Free | Lead Free |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Ripple Current | 50 mA |
| Min Operating Temperature | -40 °C |
| Diameter | 8 mm |
| Voltage Rating | 100 V |
| Tolerance | 20 % |
| Height | 6.2 mm |
| Schedule B | 8532220020 |
| Termination | SMD/SMT |
| Capacitance | 10 µF |
| Life (Hours) | 2000 Hours |
| Voltage Rating (DC) | 100 V |
| Length | 6.5 mm |
| Packaging | Reel |
| Mount | PCB, Surface Mount |
| Voltage | 100 V |
| Ripple Current (AC) | 50 mA |
| Max Operating Temperature | 85 °C |
| Manufacturer Package Identifier | CASE_8DIA |
| Case/Package | Radial |
| Leakage Current | 3 µA |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| RoHS | Compliant |
| Ratings | AEC-Q200 |
| Ripple Current @ Low Frequency | 50 mA @ 120 Hz |
| Ripple Current @ High Frequency | 85 mA @ 10 kHz |
