EEEFK1V470P
Manufacturer:
Panasonic
Mfr.Part #:
EEEFK1V470P
Datasheet:
Description:

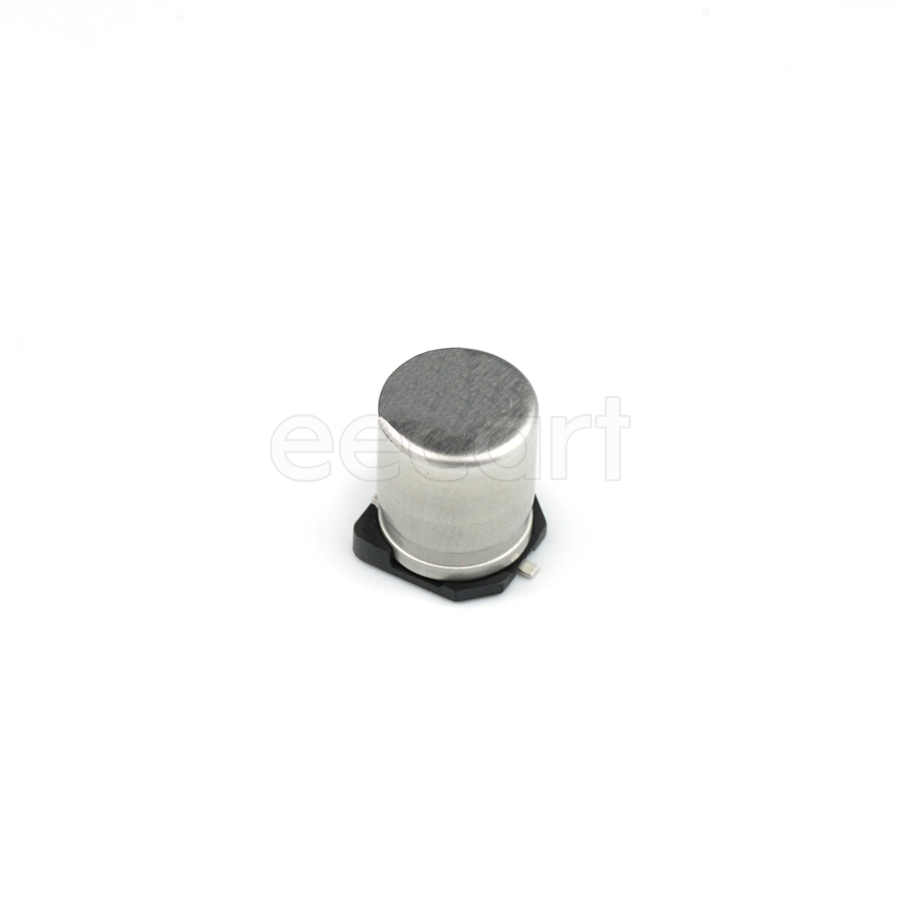

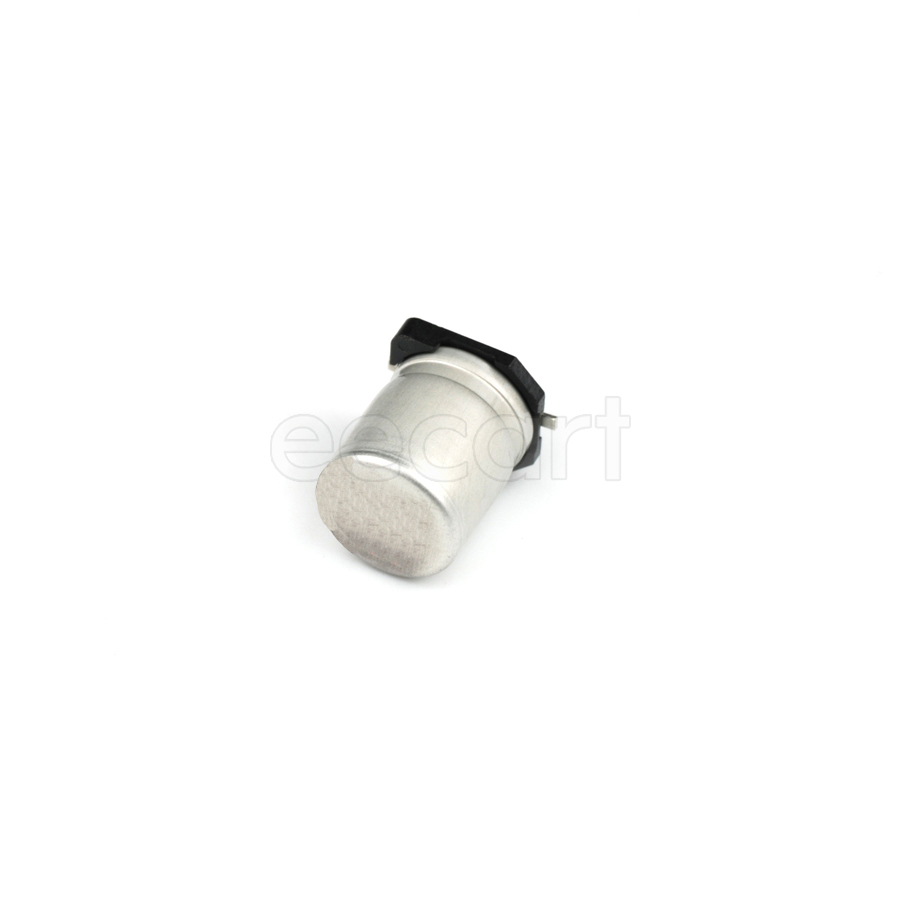

Aluminum Electrolytic Capacitors SMD,6.30mm×5.80mm SMD/SMT 47 µF 20 % 35 V
| Parameter | Value |
|---|---|
| Capacitance | 47 µF |
| Voltage Rating (DC) | 35 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 360 mΩ |
| Life (Hours) | 2000 Hours |
| Ripple Current | 240 mA |
| Height - Seated (Max) | 5.8 mm |
| Length | 5.8 mm |
| Width | 7.8 mm |
| Termination | SMD/SMT |
| Diameter | 6.3 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 35 V |
| Number of Pins | 2 |
| Leakage Current | 3 µA |
| Dissipation Factor | 12 % |
| Height | 5.8 mm |
| Case/Package | Radial |
| Material | Aluminium |
| Mount | PCB, Surface Mount |
| Packaging | Reel |
| Voltage Rating | 35 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Voltage | 35 V |
| REACH SVHC | No SVHC |
| Dielectric Material | Aluminium |
| Ratings | AEC-Q200 |
| Contact Plating | Tin |
| Impedance | 360 mΩ |
| Ripple Current (AC) | 240 mA |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Schedule B | 8532220020 |
| Ripple Current @ Low Frequency | 450 mA @ 120 Hz |
| Ripple Current @ High Frequency | 600 mA @ 100 kHz |
