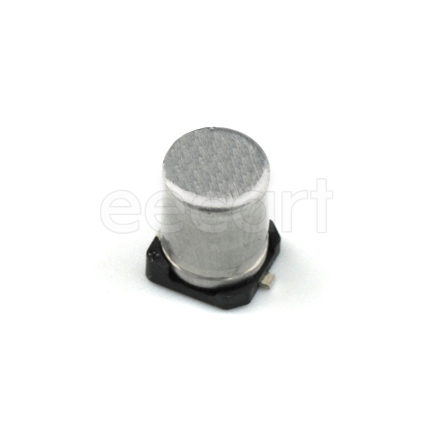

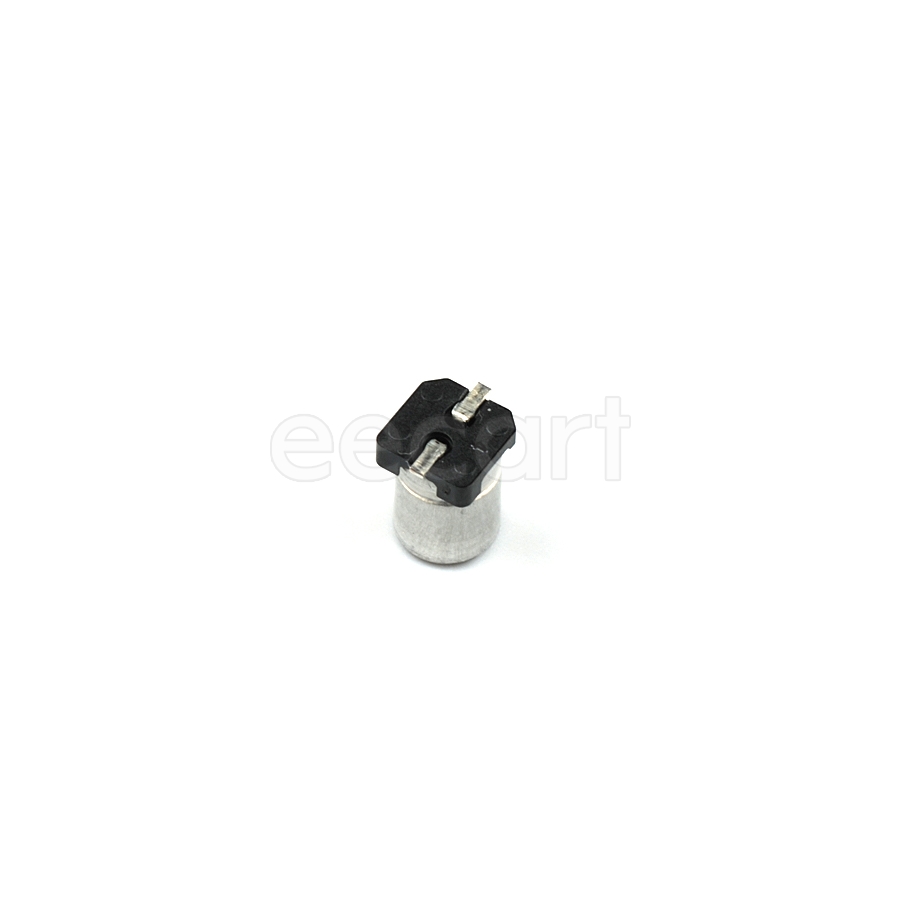

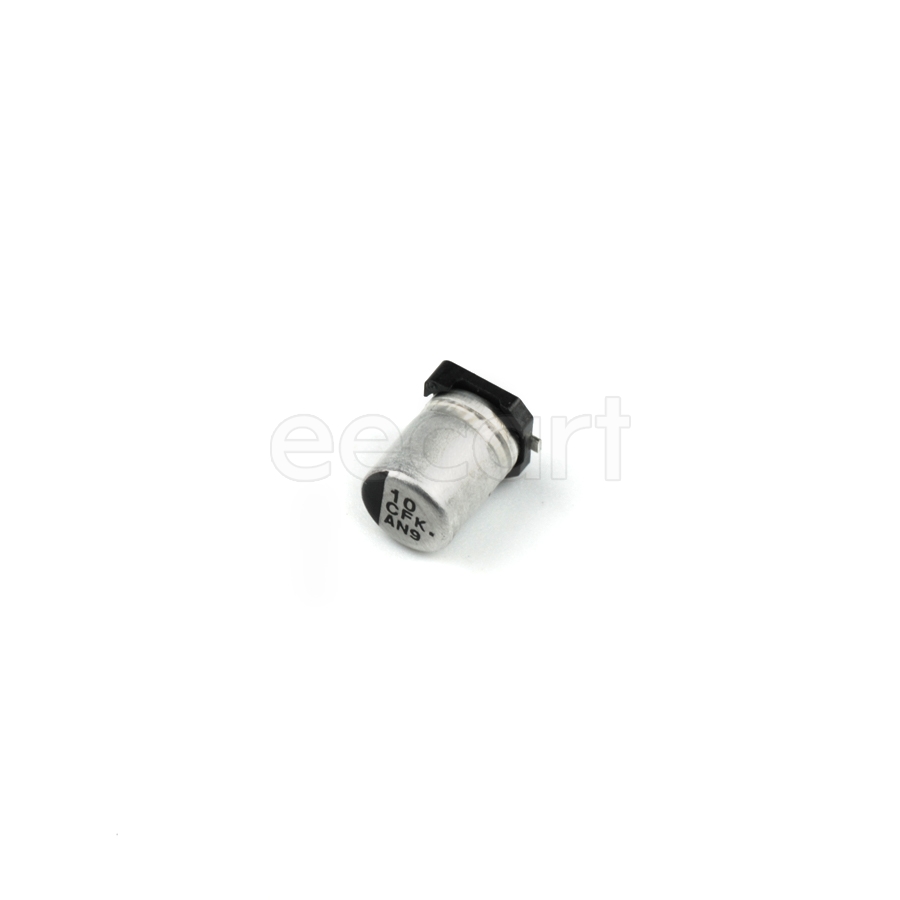

EEEFT0J101AR
Manufacturer:
Panasonic
Mfr.Part #:
EEEFT0J101AR
Datasheet:
Description:
Aluminum Electrolytic Capacitors SMD,4.00mm×5.80mm SMD/SMT 100 µF 20 % 6.3 V
| Parameter | Value |
|---|---|
| Capacitance | 100 µF |
| Voltage Rating (DC) | 6.3 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 850 mΩ |
| Life (Hours) | 2000 Hours |
| Ripple Current | 160 mA |
| Height - Seated (Max) | 5.8 mm |
| Length | 5.8 mm |
| Termination | SMD/SMT |
| Diameter | 4 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Leakage Current | 6.3 µA |
| Height | 5.8 mm |
| Case/Package | Radial |
| Mount | SMD/SMT |
| Packaging | Reel |
| Voltage Rating | 6.3 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Lead Diameter | 650 µm |
| Voltage | 6.3 V |
| REACH SVHC | No SVHC |
| Ratings | AEC-Q200 |
| Contact Plating | Tin |
| Ripple Current (AC) | 160 mA |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Schedule B | 8532220020 |
| Ripple Current @ Low Frequency | 104 mA @ 120 Hz |
| Ripple Current @ High Frequency | 160 mA @ 100 kHz |
