EEEFT1C101AR
Manufacturer:
Panasonic
Mfr.Part #:
EEEFT1C101AR
Datasheet:
Description:

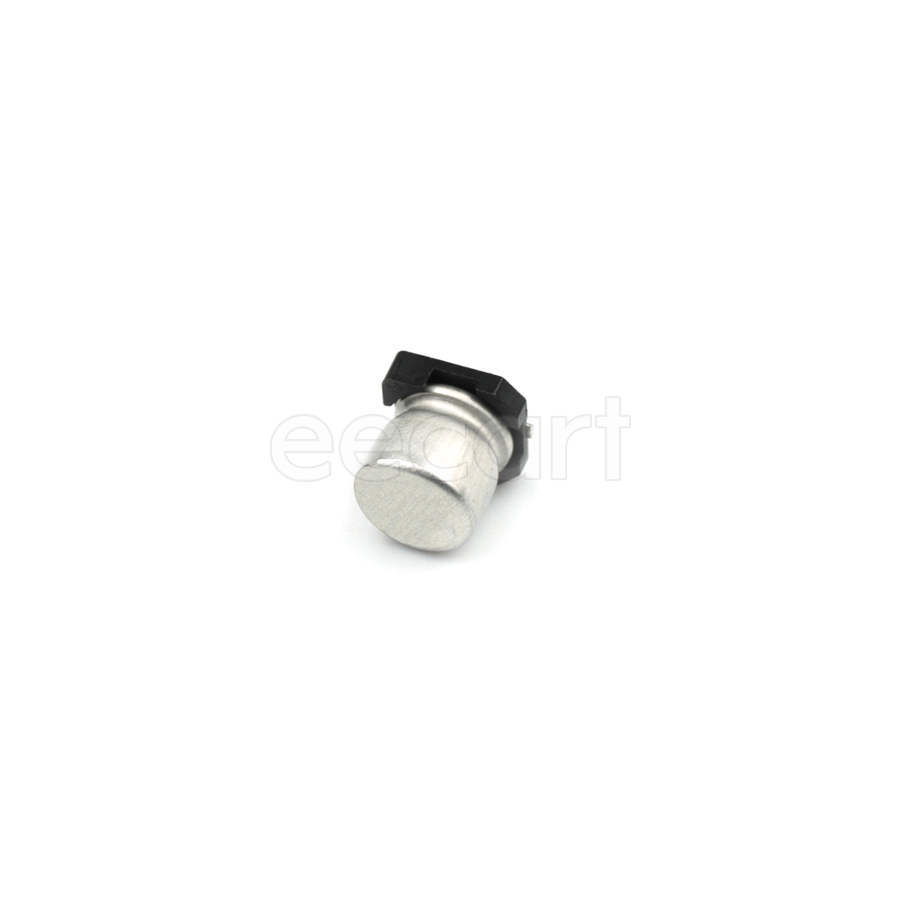

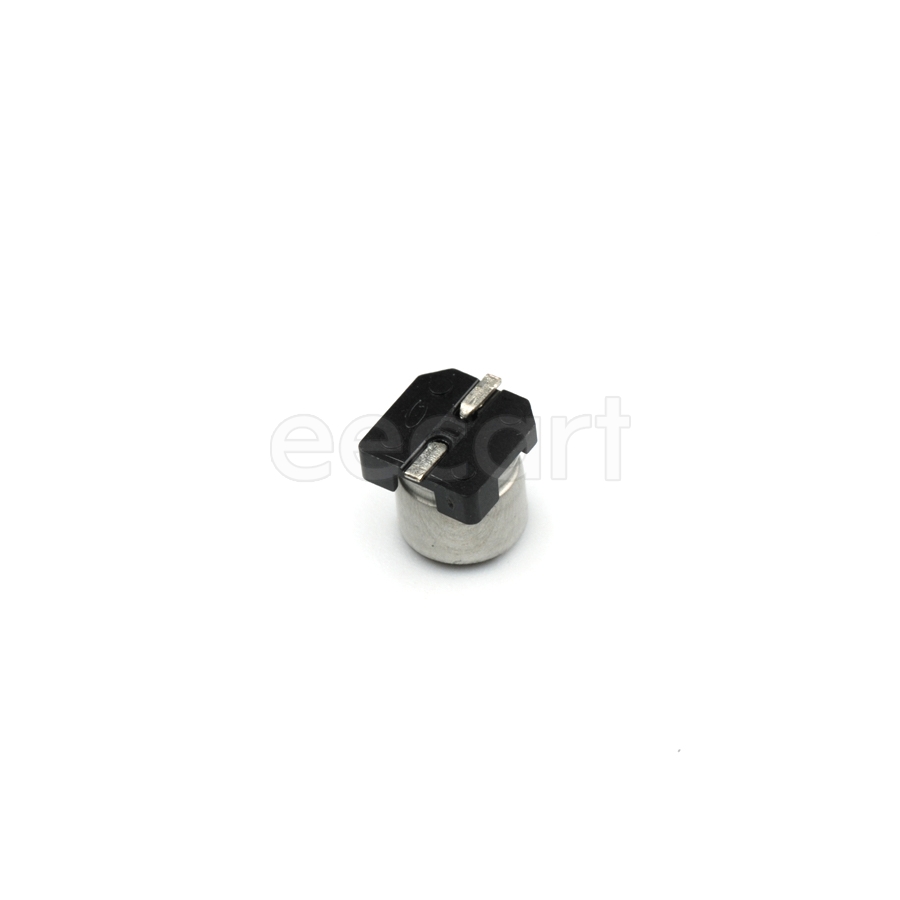

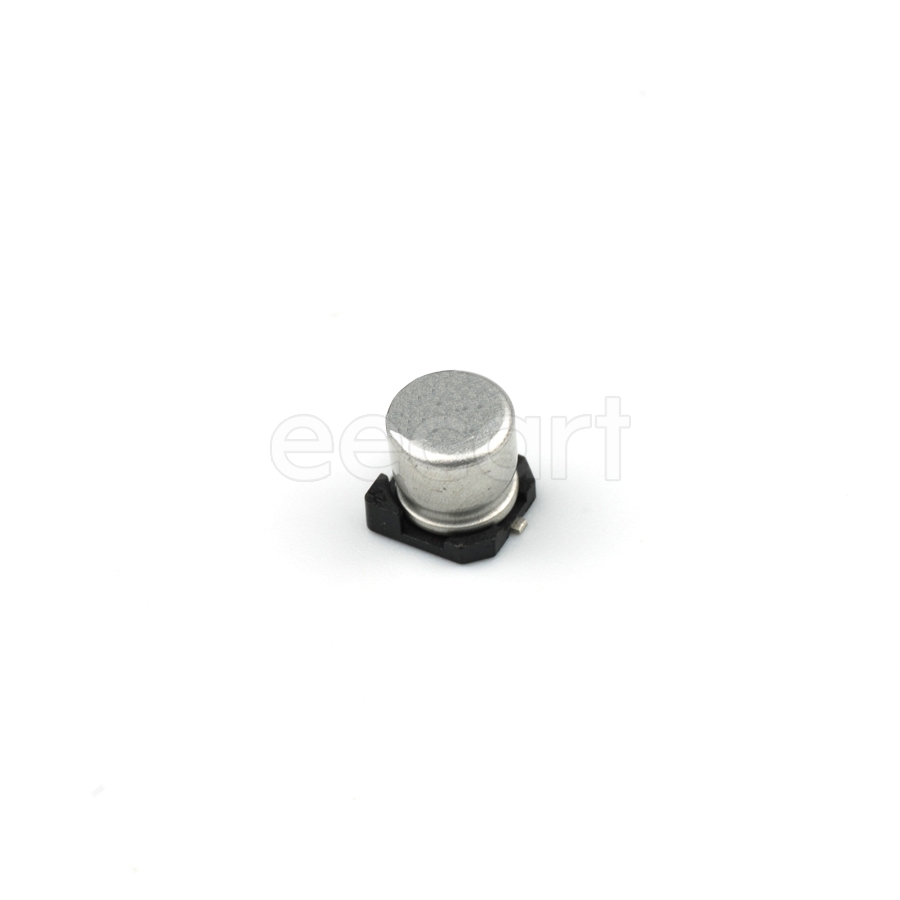

Aluminum Electrolytic Capacitors SMD,5.00mm×5.80mm SMD/SMT 100 µF 20 % 16 V
| Parameter | Value |
|---|---|
| Capacitance | 100 µF |
| Voltage Rating (DC) | 16 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 360 mΩ |
| Life (Hours) | 2000 Hours |
| Ripple Current | 240 mA |
| Height - Seated (Max) | 5.8 mm |
| Length | 5.8 mm |
| Termination | SMD/SMT |
| Diameter | 5 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Leakage Current | 16 µA |
| Dissipation Factor | 16 % |
| Height | 5.8 mm |
| Case/Package | Radial |
| Mount | SMD/SMT |
| Packaging | Reel |
| Voltage Rating | 16 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 650 µm |
| Voltage | 16 V |
| REACH SVHC | No SVHC |
| Ratings | AEC-Q200 |
| Contact Plating | Tin |
| Ripple Current (AC) | 240 mA |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Schedule B | 8532220020 |
| Ripple Current @ Low Frequency | 156 mA @ 120 Hz |
| Ripple Current @ High Frequency | 240 mA @ 100 kHz |
Stock: 3201
Distributors
pcbx
pcbxUnit Price$0.18317
Ext.Price$0.18317
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.18317 | $0.18317 |
| 10 | $0.16138 | $1.61380 |
| 50 | $0.14218 | $7.10900 |
| 100 | $0.12802 | $12.80200 |
| 500 | $0.11527 | $57.63500 |
| 1000 | $0.10379 | $103.79000 |
| 3000 | $0.09605 | $288.15000 |
| 5000 | $0.08889 | $444.45000 |
