EEEFT1V331GP
Manufacturer:
Panasonic
Mfr.Part #:
EEEFT1V331GP
Datasheet:
Description:

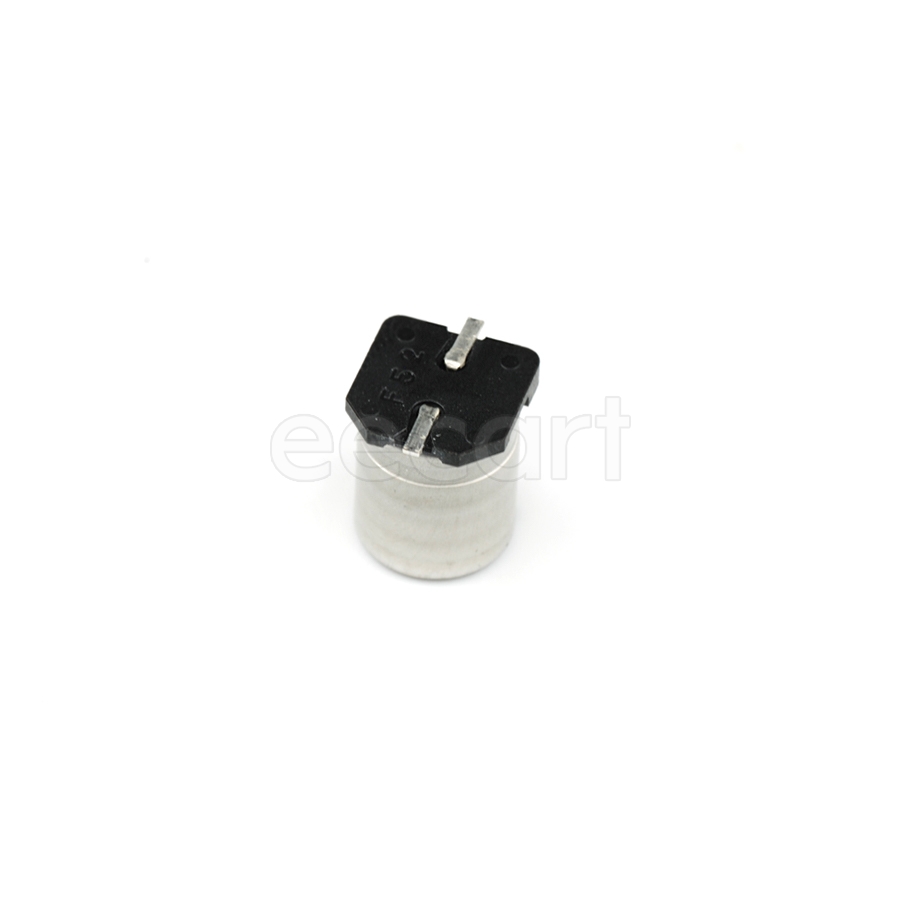

Aluminum Electrolytic Capacitors SMD,8.00mm×10.20mm SMD/SMT 330 µF 20 % 35 V
| Parameter | Value |
|---|---|
| Capacitance | 330 µF |
| Voltage Rating (DC) | 35 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 80 mΩ |
| Life (Hours) | 5000 Hours |
| Ripple Current | 552.5 mA |
| Height - Seated (Max) | 10.5 mm |
| Diameter | 8 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 10.2 mm |
| Case/Package | Radial |
| Mount | SMD/SMT |
| Packaging | Reel |
| Voltage Rating | 35 V |
| RoHS | Compliant |
| Polarity | Polar |
| REACH SVHC | No SVHC |
| Ratings | AEC-Q200 |
| Ripple Current (AC) | 850 mA |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Schedule B | 8532220020 |
| Ripple Current @ Low Frequency | 552.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 850 mA @ 100 kHz |
Stock: 309
Distributors
pcbx
pcbxUnit Price$0.73699
Ext.Price$0.73699
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.73699 | $0.73699 |
| 10 | $0.59702 | $5.97020 |
| 25 | $0.54862 | $13.71550 |
| 50 | $0.50414 | $25.20700 |
| 100 | $0.46327 | $46.32700 |
| 300 | $0.41367 | $124.10100 |
| 500 | $0.36938 | $184.69000 |
| 1000 | $0.34852 | $348.52000 |
