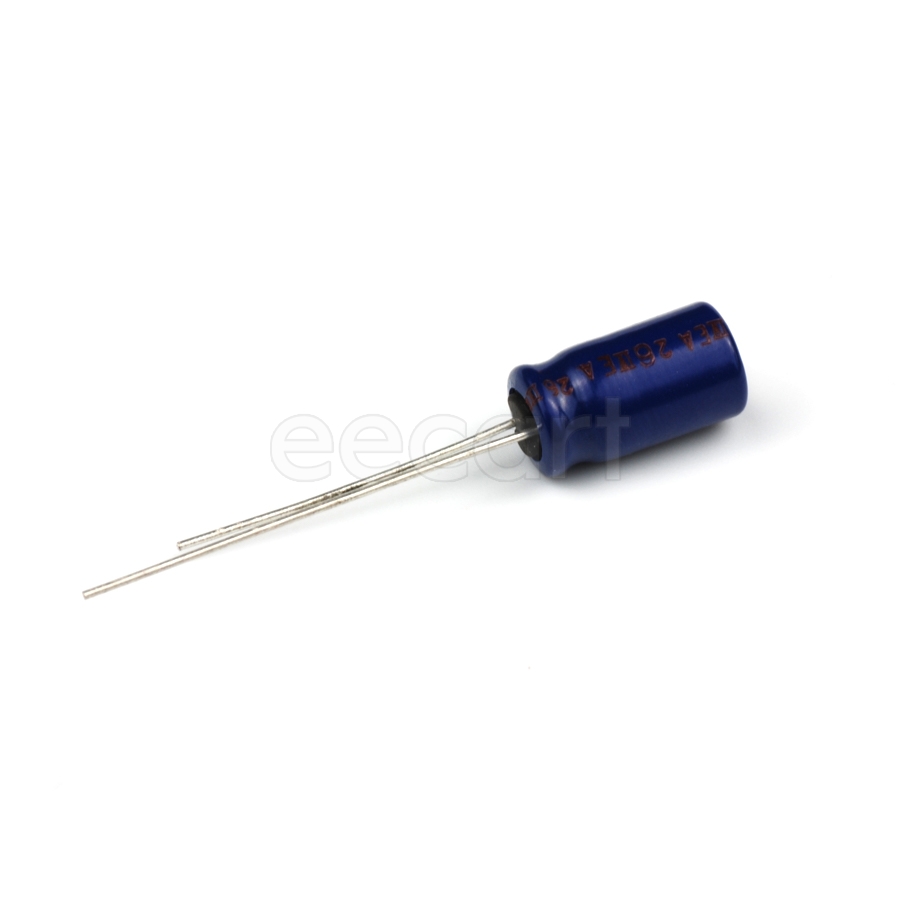

EEU-FC1E101S
Manufacturer:
Panasonic
Mfr.Part #:
EEU-FC1E101S
Datasheet:
Description:
Aluminum Electrolytic Capacitors Radial,6.30mm×11.20mm Through Hole 100 µF 20 % 25 V
| Parameter | Value |
|---|---|
| Capacitance | 100 µF |
| Voltage Rating (DC) | 25 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 350 mΩ |
| Life (Hours) | 1000 Hours |
| Ripple Current | 290 mA |
| Height - Seated (Max) | 11.2 mm |
| Length | 11 mm |
| Termination | Radial |
| Diameter | 6.3 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Leakage Current | 3 µA |
| Height | 11.2 mm |
| Packaging | Bulk |
| Voltage Rating | 25 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 500 µm |
| Lead Pitch | 2.5 mm |
| Voltage | 25 V |
| REACH SVHC | No SVHC |
| Dielectric Material | Aluminium |
| Contact Plating | Tin |
| Features | General Purpose |
| Impedance | 350 mΩ |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Schedule B | 8532220020 |
| Ripple Current @ Low Frequency | 188.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 290 mA @ 100 kHz |
Stock: 9980
Distributors
pcbx
pcbxUnit Price$0.23767
Ext.Price$0.23767
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.23767 | $0.23767 |
| 10 | $0.10088 | $1.00880 |
| 50 | $0.08776 | $4.38800 |
| 100 | $0.07634 | $7.63400 |
| 500 | $0.06945 | $34.72500 |
| 1000 | $0.06318 | $63.18000 |
| 3000 | $0.05966 | $178.98000 |
| 5000 | $0.05634 | $281.70000 |
| 10000 | $0.05446 | $544.60000 |
