EEU-FM1E821L
Manufacturer:
Panasonic
Mfr.Part #:
EEU-FM1E821L
Datasheet:
Description:

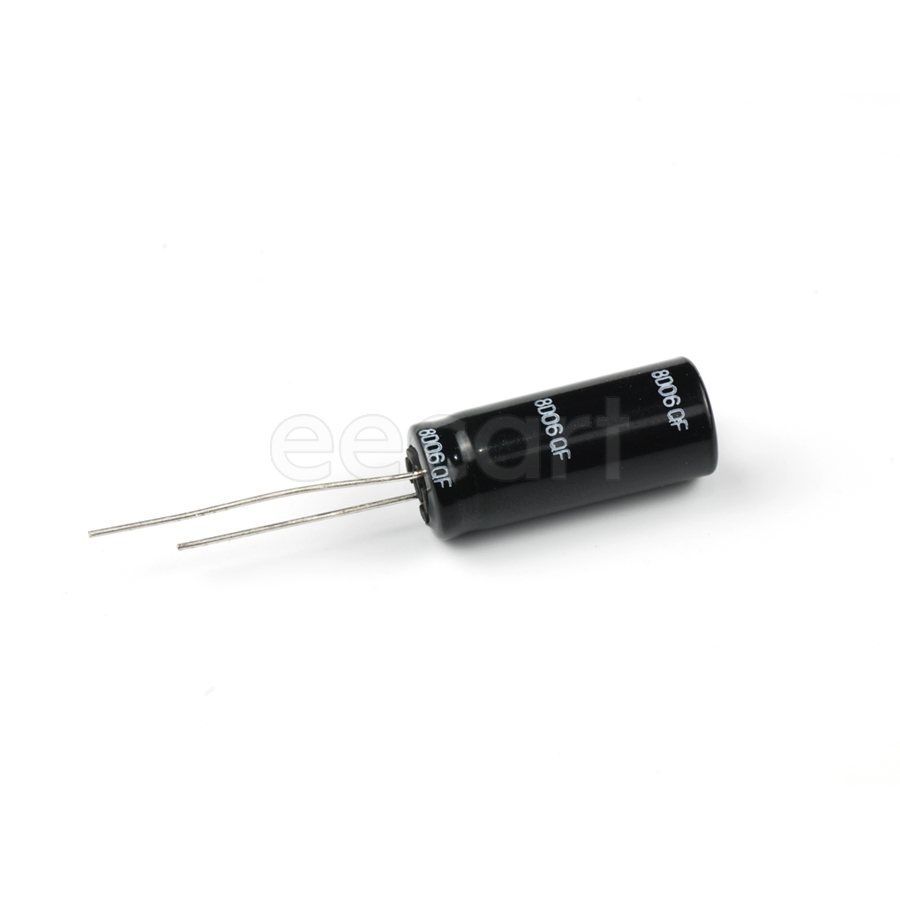

Aluminum Electrolytic Capacitors Radial,10.00mm×25.00mm Through Hole 820 µF 20 % 25 V
| Parameter | Value |
|---|---|
| Capacitance | 820 µF |
| Voltage Rating (DC) | 25 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 18 mΩ |
| Life (Hours) | 5000 Hours |
| Ripple Current | 2.47 A |
| Height - Seated (Max) | 25 mm |
| Length | 25 mm |
| Termination | Radial |
| Diameter | 10 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Dissipation Factor | 0.14 % |
| Height | 25 mm |
| Packaging | Bulk |
| Voltage Rating | 25 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 600 µm |
| Lead Pitch | 5 mm |
| Voltage | 25 V |
| REACH SVHC | Yes |
| Dielectric Material | Aluminium |
| Impedance | 18 mΩ |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Ripple Current @ Low Frequency | 1.853 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.47 A @ 100 kHz |
Stock: 24
Distributors
pcbx
pcbxUnit Price$0.60101
Ext.Price$0.60101
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.60101 | $0.60101 |
| 10 | $0.28982 | $2.89820 |
| 25 | $0.26898 | $6.72450 |
| 50 | $0.24964 | $12.48200 |
| 100 | $0.23169 | $23.16900 |
| 300 | $0.21808 | $65.42400 |
| 500 | $0.20527 | $102.63500 |
| 1000 | $0.19321 | $193.21000 |
