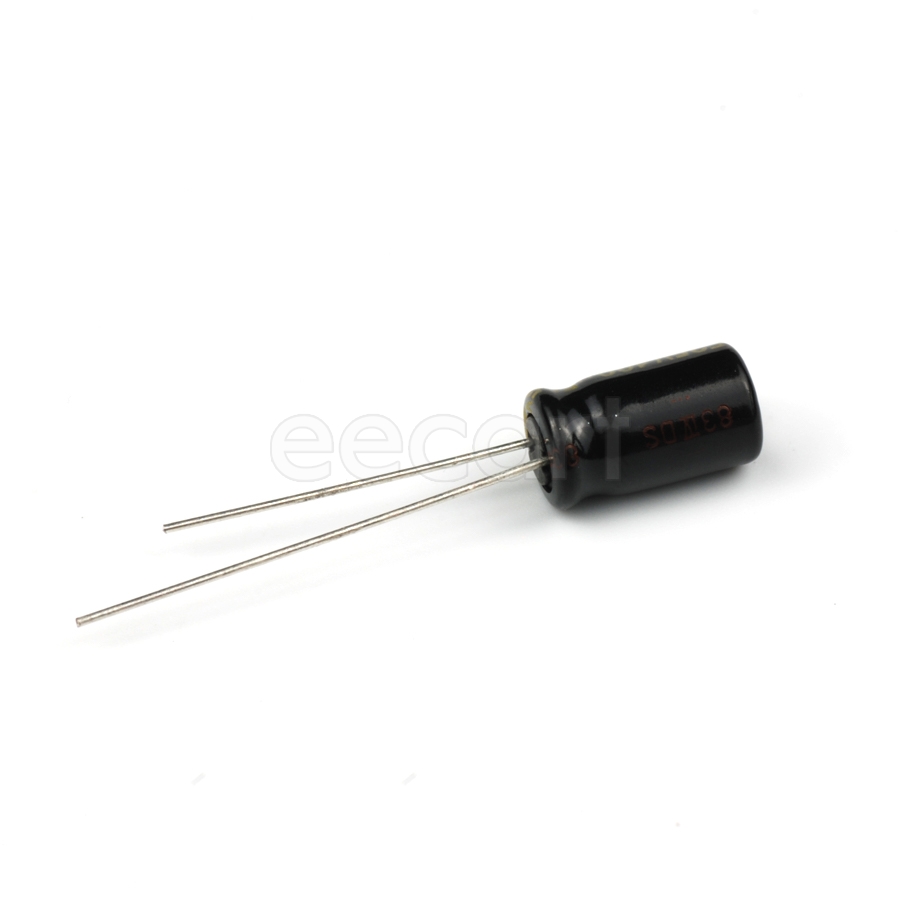

EEU-FR1C221
Manufacturer:
Panasonic
Mfr.Part #:
EEU-FR1C221
Datasheet:
Description:
Aluminum Electrolytic Capacitors Radial,6.30mm×11.20mm Through Hole 220 µF 20 % 16 V
| Parameter | Value |
|---|---|
| Capacitance | 220 µF |
| Voltage Rating (DC) | 16 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 130 mΩ |
| Life (Hours) | 5000 Hours |
| Ripple Current | 455 mA |
| Height - Seated (Max) | 11.2 mm |
| Length | 11.2 mm |
| Termination | Radial |
| Diameter | 6.3 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Leakage Current | 35.2 µA |
| Height | 11.2 mm |
| Packaging | Bulk |
| Voltage Rating | 16 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Lead Diameter | 500 µm |
| Lead Pitch | 2.5 mm |
| Voltage | 16 V |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Impedance | 130 mΩ |
| Lead/Base Style | Straight |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Schedule B | 8532220020 |
| Ripple Current @ Low Frequency | 318.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 455 mA @ 100 kHz |
Stock: 3857
Distributors
pcbx
pcbxUnit Price$0.28145
Ext.Price$0.28145
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.28145 | $0.28145 |
| 10 | $0.17583 | $1.75830 |
| 50 | $0.12939 | $6.46950 |
| 100 | $0.11086 | $11.08600 |
| 500 | $0.09498 | $47.49000 |
| 1000 | $0.08137 | $81.37000 |
| 3000 | $0.07416 | $222.48000 |
| 5000 | $0.06758 | $337.90000 |
