EEU-FS1C622
Manufacturer:
Panasonic
Mfr.Part #:
EEU-FS1C622
Datasheet:
Description:

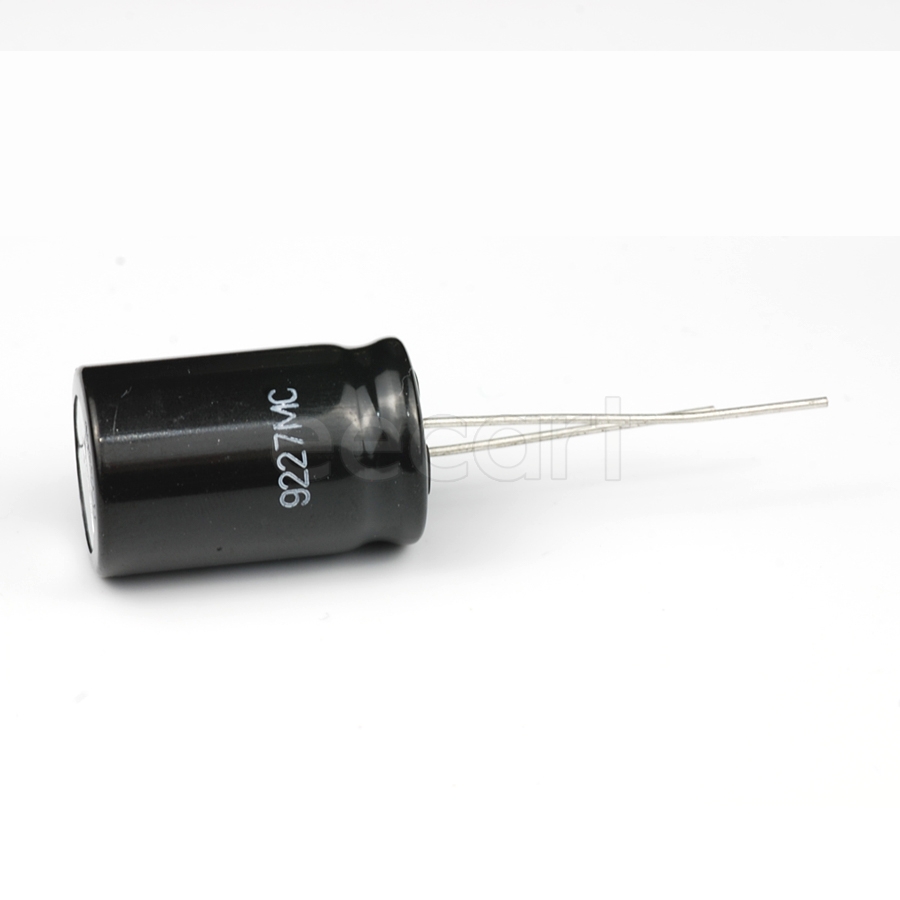

Aluminum Electrolytic Capacitors Radial,16.00mm×25.00mm Through Hole 6.2 mF 20 % 16 V
| Parameter | Value |
|---|---|
| Capacitance | 6.2 mF |
| Voltage Rating (DC) | 16 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 14 mΩ |
| Life (Hours) | 10000 Hours |
| Height - Seated (Max) | 25 mm |
| Diameter | 16 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 25 mm |
| Packaging | Bulk |
| Voltage Rating | 16 V |
| RoHS | Compliant |
| Lead Pitch | 7.5 mm |
| Impedance | 14 mΩ |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Schedule B | 8532220020 |
| Ripple Current @ Low Frequency | 3.056 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.82 A @ 100 kHz |
Stock: 433
Distributors
pcbx
pcbxUnit Price$1.38907
Ext.Price$1.38907
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.38907 | $1.38907 |
| 10 | $0.82777 | $8.27770 |
| 25 | $0.76941 | $19.23525 |
| 50 | $0.71517 | $35.75850 |
| 100 | $0.65273 | $65.27300 |
| 300 | $0.59667 | $179.00100 |
| 500 | $0.54543 | $272.71500 |
| 1000 | $0.51166 | $511.66000 |
| 3000 | $0.48608 | $1458.24000 |
| 5000 | $0.46177 | $2308.85000 |
