EEU-FS1E222B
Manufacturer:
Panasonic
Mfr.Part #:
EEU-FS1E222B
Datasheet:
Description:

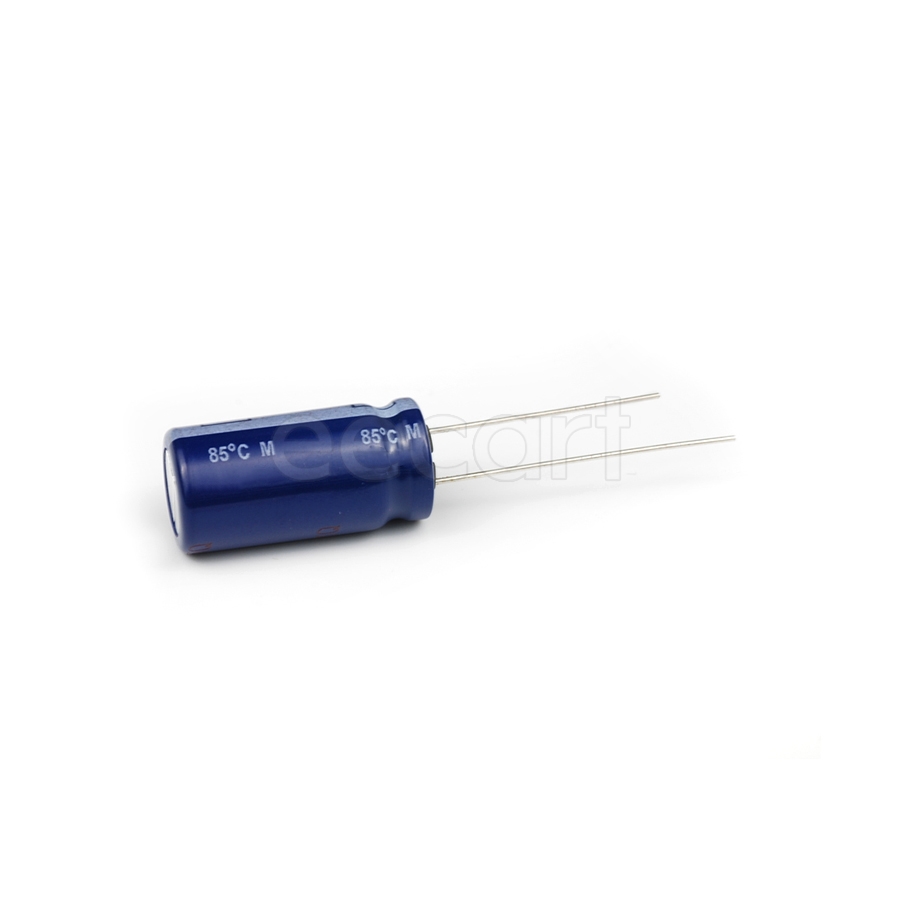

Aluminum Electrolytic Capacitors Radial,12.50mm×25.00mm Through Hole 2.2 mF 20 % 25 V
| Parameter | Value |
|---|---|
| Capacitance | 2.2 mF |
| Voltage Rating (DC) | 25 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 15 mΩ |
| Life (Hours) | 10000 Hours |
| Height - Seated (Max) | 25 mm |
| Diameter | 12.5 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 25 mm |
| Packaging | Ammo Pack |
| Voltage Rating | 25 V |
| RoHS | Compliant |
| Lead Pitch | 5 mm |
| Impedance | 15 mΩ |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Schedule B | 8532220020 |
| Ripple Current @ Low Frequency | 2.552 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.19 A @ 100 kHz |
Stock: 1495
Distributors
pcbx
pcbxUnit Price$1.02591
Ext.Price$1.02591
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.02591 | $1.02591 |
| 10 | $0.44371 | $4.43710 |
| 25 | $0.42683 | $10.67075 |
| 50 | $0.41059 | $20.52950 |
| 100 | $0.39497 | $39.49700 |
| 300 | $0.37570 | $112.71000 |
| 500 | $0.35736 | $178.68000 |
| 1000 | $0.33770 | $337.70000 |
| 3000 | $0.32684 | $980.52000 |
| 5000 | $0.31633 | $1581.65000 |
| 10000 | $0.30179 | $3017.90000 |
