EEV-EB2D330SM
Manufacturer:
Panasonic
Mfr.Part #:
EEV-EB2D330SM
Datasheet:
Description:

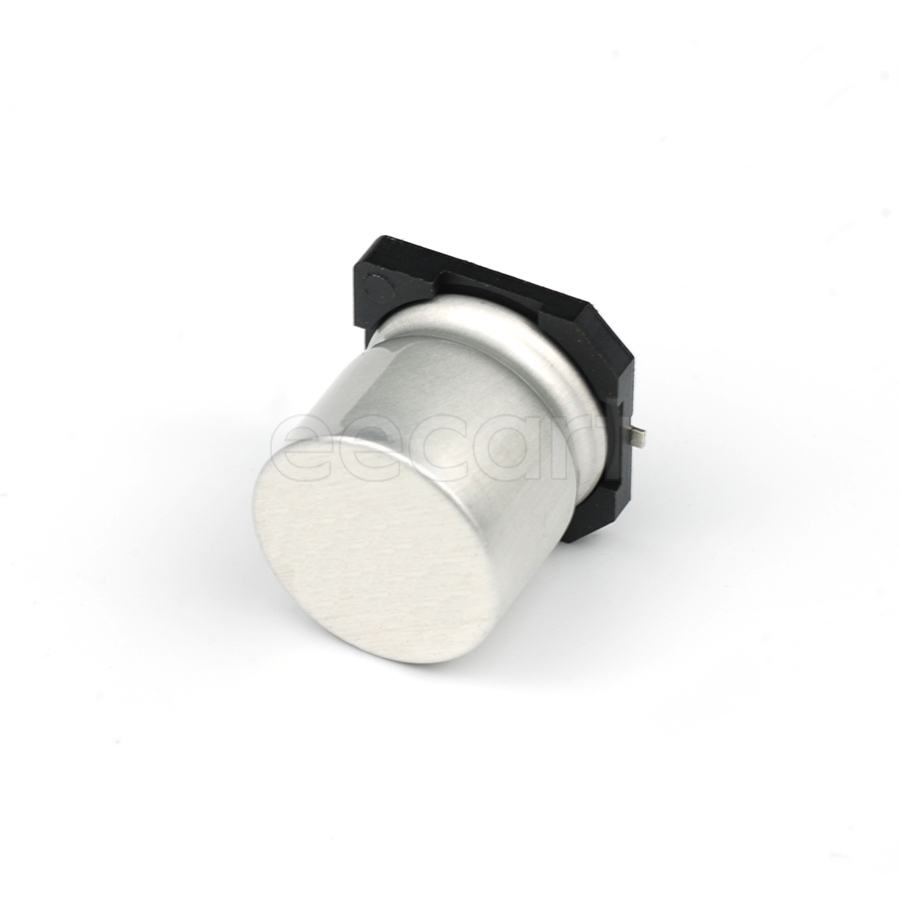

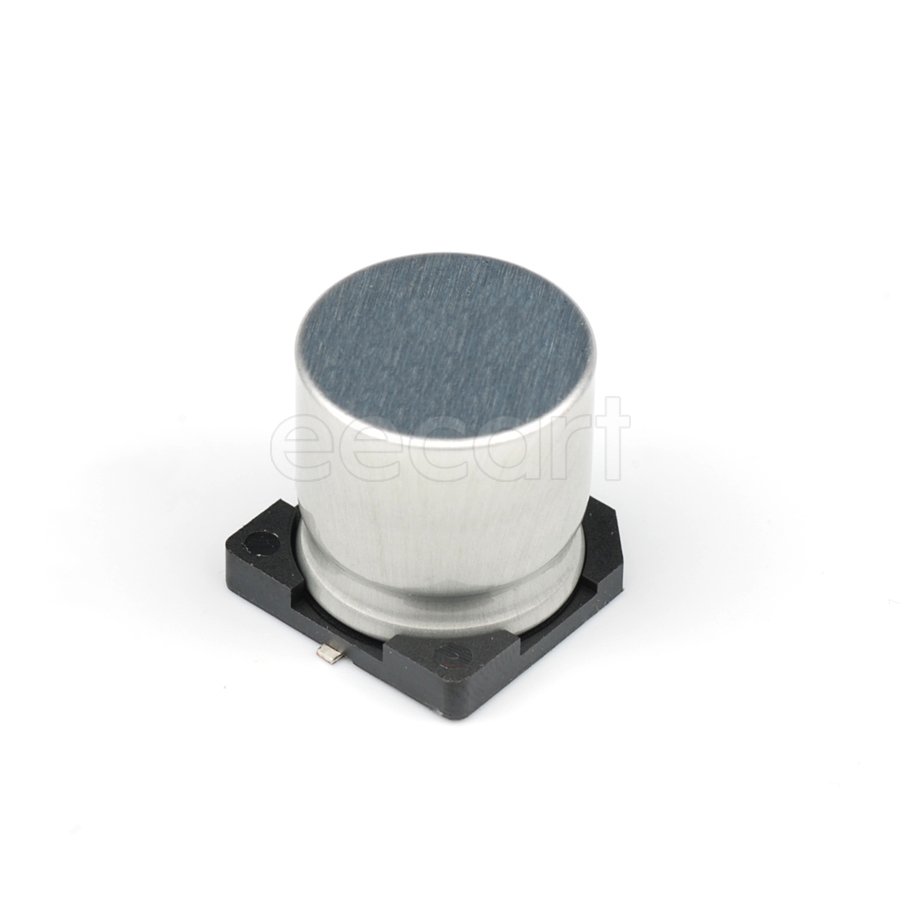

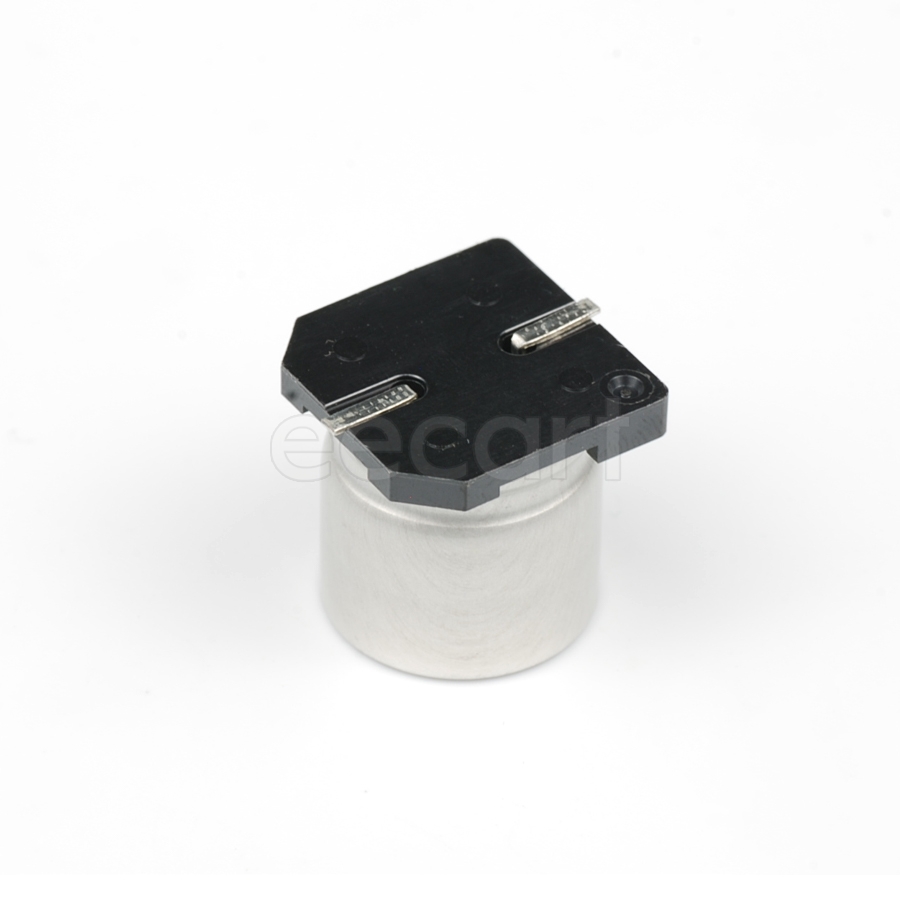

Aluminum Electrolytic Capacitors SMD,16.00mm×16.50mm SMD/SMT 33 µF 20 % 200 V
| Parameter | Value |
|---|---|
| Capacitance | 33 µF |
| Voltage Rating (DC) | 200 V |
| Tolerance | 20 % |
| Life (Hours) | 2000 Hours |
| Ripple Current | 600 mA |
| Height - Seated (Max) | 16.5 mm |
| Length | 16.5 mm |
| Width | 1.2 mm |
| Termination | SMD/SMT |
| Diameter | 16 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -25 °C |
| Height | 16.5 mm |
| Packaging | Reel |
| Voltage Rating | 200 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Features | General Purpose |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Ripple Current @ Low Frequency | 330 mA @ 120 Hz |
| Ripple Current @ High Frequency | 600 mA @ 100 kHz |
