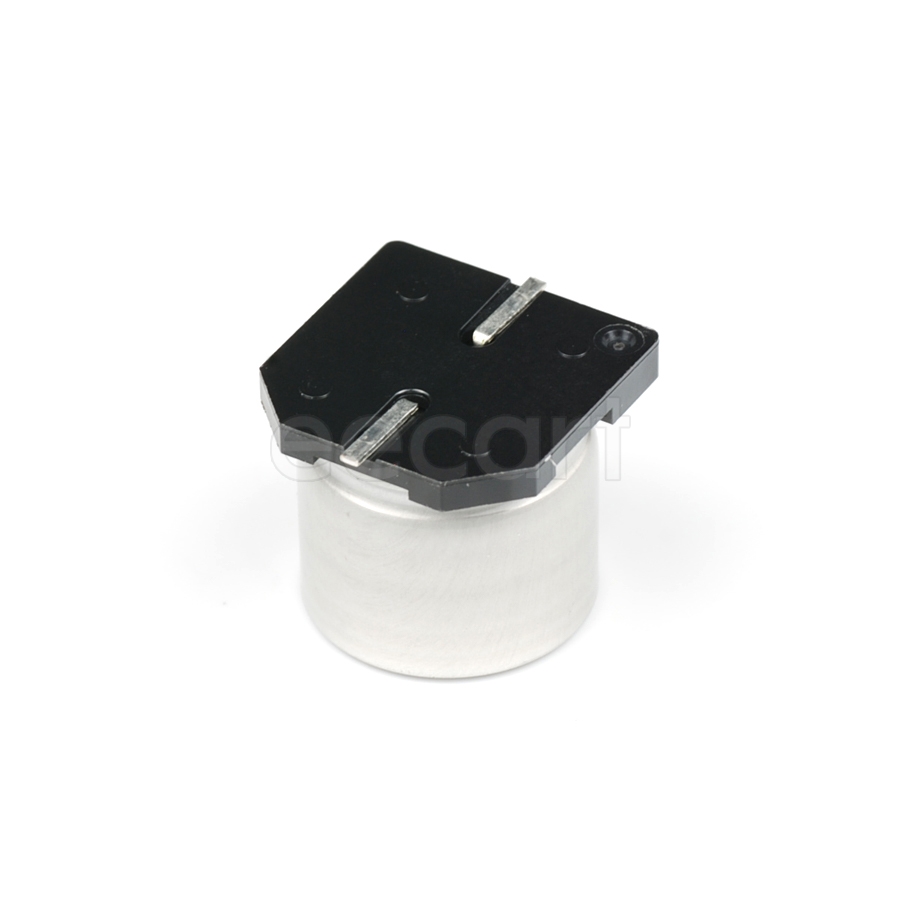

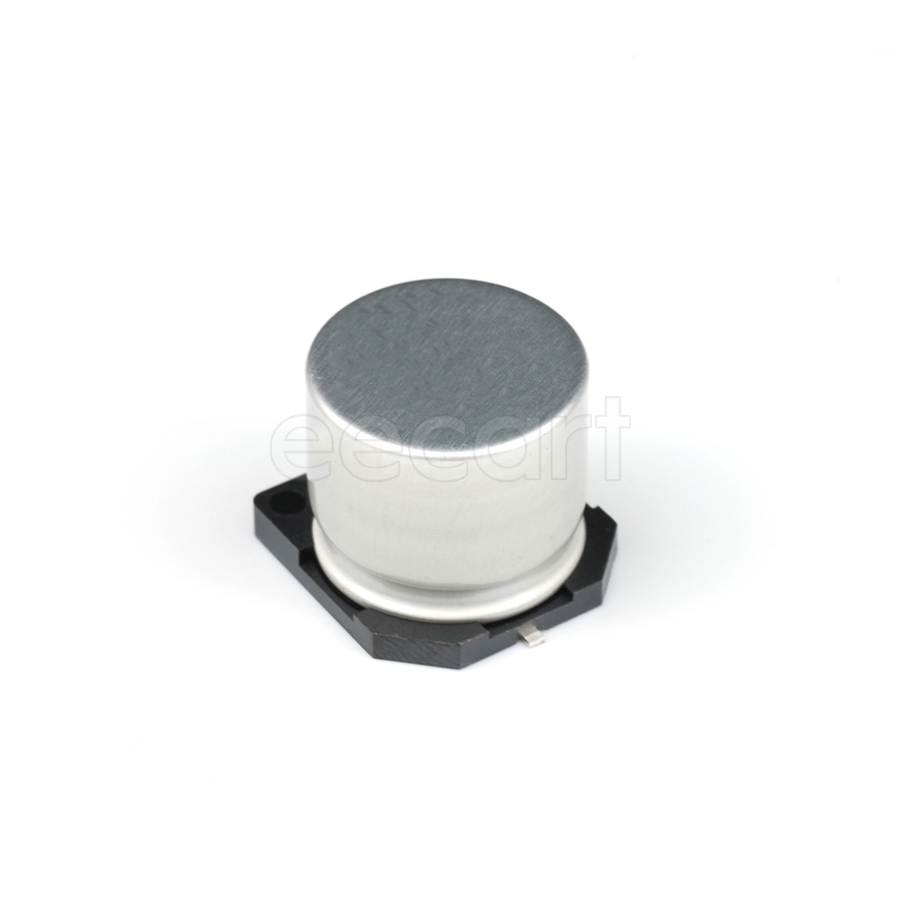

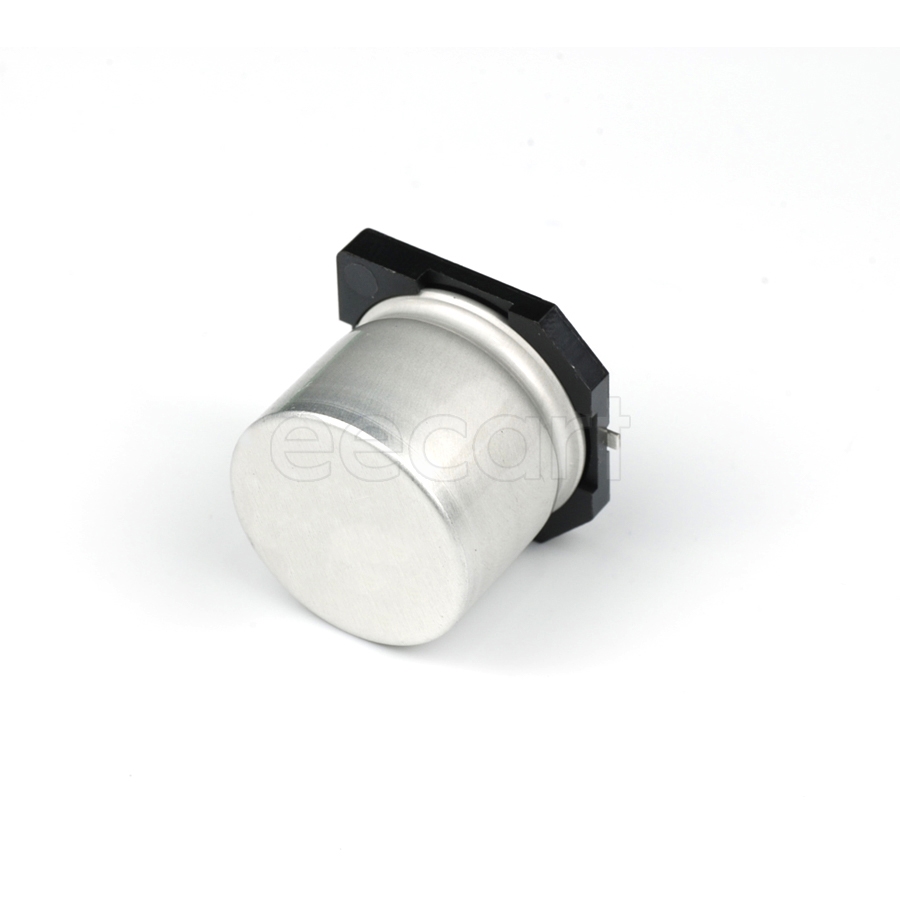

EEV-FK1V102M
Manufacturer:
Panasonic
Mfr.Part #:
EEV-FK1V102M
Datasheet:
Description:
Aluminum Electrolytic Capacitors SMD,16.00mm×16.50mm SMD/SMT 1 mF 20 % 35 V
| Parameter | Value |
|---|---|
| Capacitance | 1 mF |
| Voltage Rating (DC) | 35 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 35 mΩ |
| Life (Hours) | 5000 Hours |
| Ripple Current | 1.8 A |
| Height - Seated (Max) | 16.5 mm |
| Length | 17 mm |
| Termination | SMD/SMT |
| Diameter | 16 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Leakage Current | 3 µA |
| Height | 16.5 mm |
| Material | Aluminium |
| Packaging | Reel |
| Voltage Rating | 35 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Voltage | 35 V |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Impedance | 35 mΩ |
| Ripple Current (AC) | 1.8 A |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Schedule B | 8532220020 |
| Ripple Current @ Low Frequency | 1.35 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.8 A @ 100 kHz |
Stock: 1637
Distributors
pcbx
pcbxUnit Price$1.38327
Ext.Price$1.38327
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.38327 | $1.38327 |
| 10 | $0.71985 | $7.19850 |
| 25 | $0.66275 | $16.56875 |
| 50 | $0.61018 | $30.50900 |
| 100 | $0.56178 | $56.17800 |
| 300 | $0.51722 | $155.16600 |
| 500 | $0.47620 | $238.10000 |
| 1000 | $0.45910 | $459.10000 |
| 3000 | $0.45437 | $1363.11000 |
| 5000 | $0.44970 | $2248.50000 |
| 10000 | $0.44114 | $4411.40000 |
