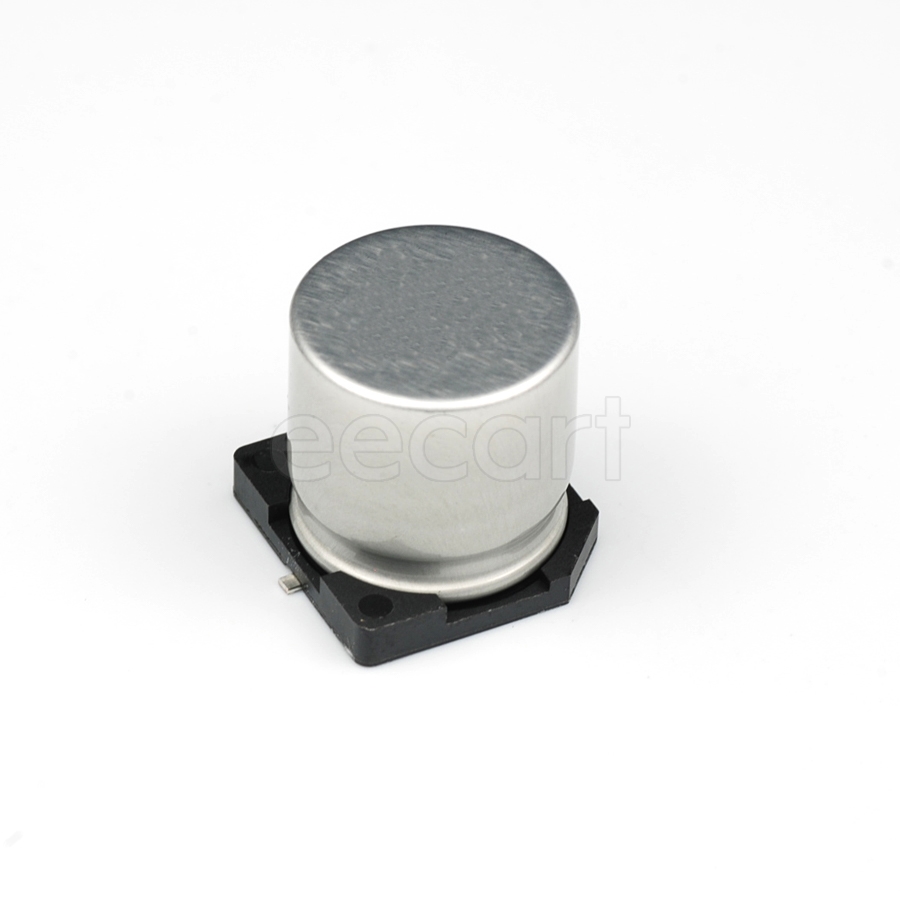

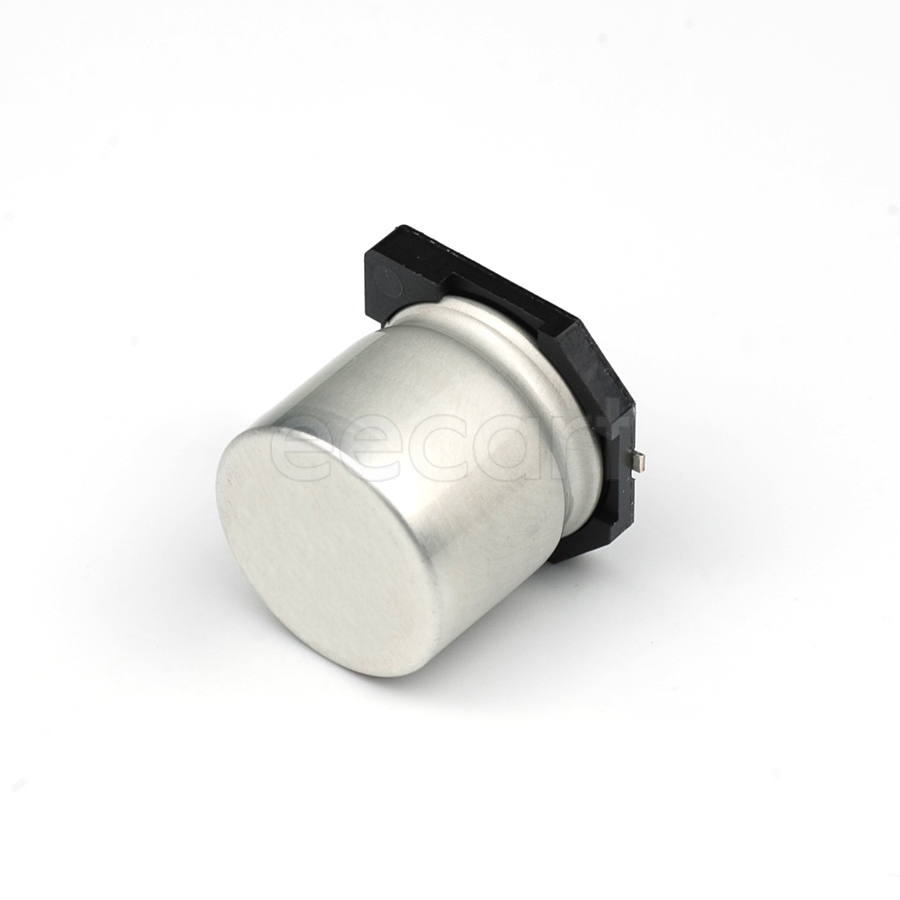

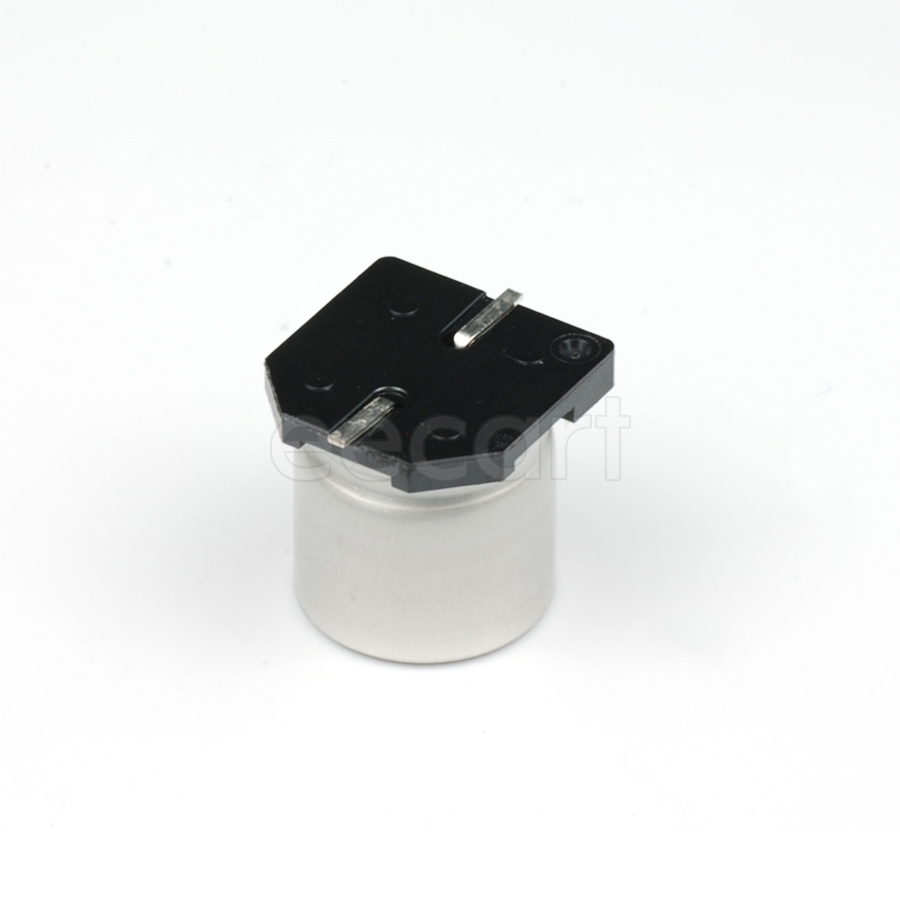

EEV-FK2A151M
Manufacturer:
Panasonic
Mfr.Part #:
EEV-FK2A151M
Datasheet:
Description:
Aluminum Electrolytic Capacitors SMD,16.00mm×16.50mm SMD/SMT 150 µF 20 % 100 V
| Parameter | Value |
|---|---|
| Capacitance | 150 µF |
| Voltage Rating (DC) | 100 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 170 mΩ |
| Life (Hours) | 2000 Hours |
| Ripple Current | 793 mA |
| Height - Seated (Max) | 16.5 mm |
| Length | 17 mm |
| Width | 1.2 mm |
| Termination | SMD/SMT |
| Diameter | 16 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 100 V |
| Number of Pins | 2 |
| Leakage Current | 3 µA |
| Height | 16.5 mm |
| Packaging | Reel |
| Voltage Rating | 100 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 100 V |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Impedance | 170 mΩ |
| Ripple Current (AC) | 793 mA |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Schedule B | 8532220020 |
| Ripple Current @ Low Frequency | 594.8 mA @ 120 Hz |
| Ripple Current @ High Frequency | 793 mA @ 100 kHz |
Stock: 1072
Distributors
pcbx
pcbxUnit Price$1.44569
Ext.Price$1.44569
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.44569 | $1.44569 |
| 10 | $0.76944 | $7.69440 |
| 25 | $0.70998 | $17.74950 |
| 50 | $0.65511 | $32.75550 |
| 100 | $0.60448 | $60.44800 |
| 300 | $0.55777 | $167.33100 |
| 500 | $0.51467 | $257.33500 |
| 1000 | $0.49415 | $494.15000 |
