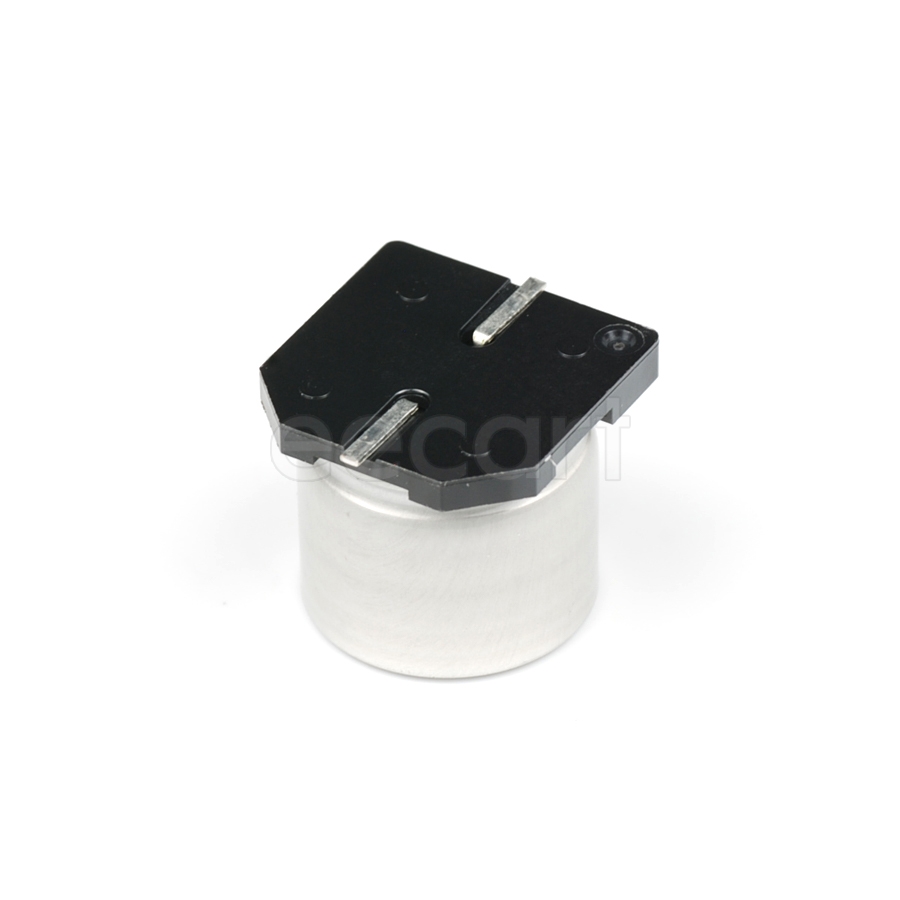

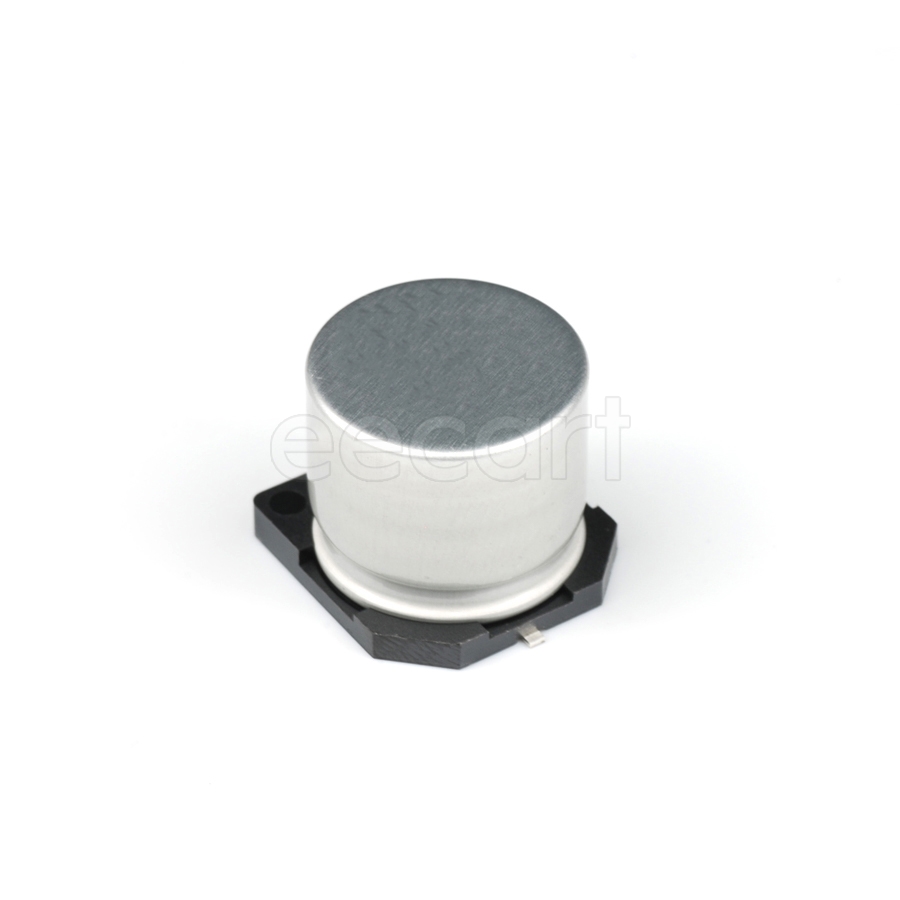

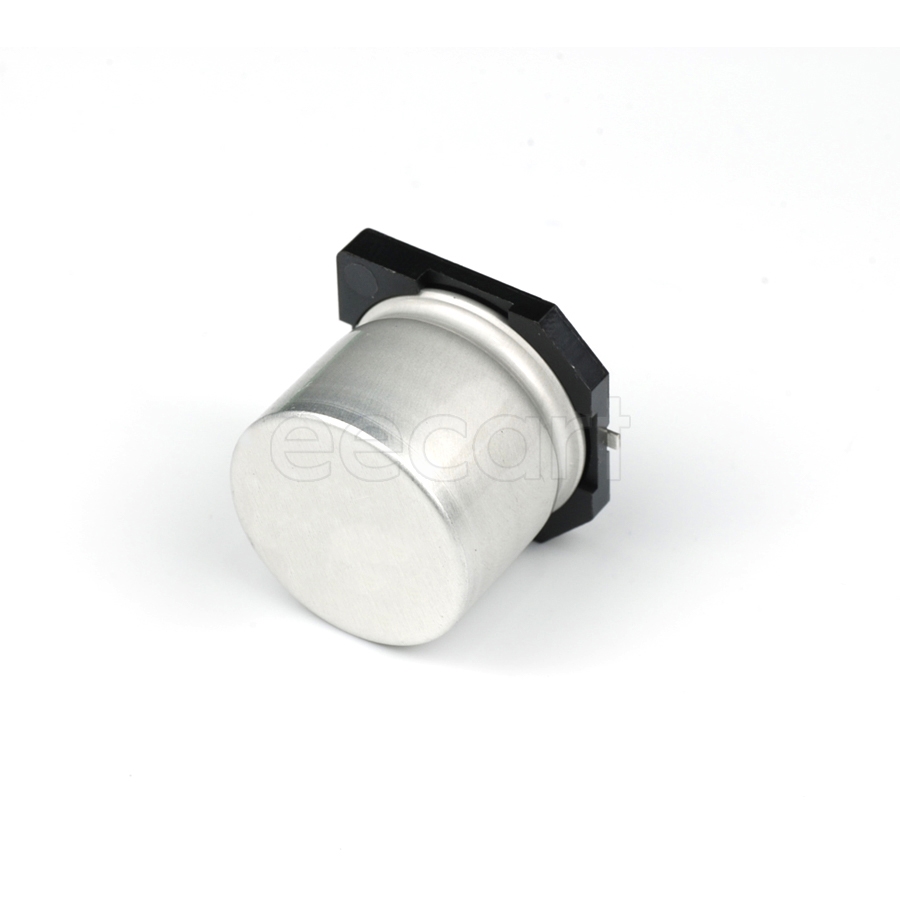

EEV-FK2A221M
Manufacturer:
Panasonic
Mfr.Part #:
EEV-FK2A221M
Datasheet:
Description:
Aluminum Electrolytic Capacitors SMD,18.00mm×16.50mm SMD/SMT 220 µF 20 % 100 V
| Parameter | Value |
|---|---|
| Capacitance | 220 µF |
| Voltage Rating (DC) | 100 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 153 mΩ |
| Life (Hours) | 5000 Hours |
| Ripple Current | 917 mA |
| Height - Seated (Max) | 16.5 mm |
| Length | 17 mm |
| Width | 1.2 mm |
| Termination | SMD/SMT |
| Diameter | 18 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 100 V |
| Number of Pins | 2 |
| Leakage Current | 3 µA |
| Height | 16.5 mm |
| Packaging | Reel |
| Voltage Rating | 100 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 100 V |
| REACH SVHC | No SVHC |
| Dielectric Material | Aluminium |
| Contact Plating | Tin |
| Impedance | 153 mΩ |
| Ripple Current (AC) | 917 mA |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Schedule B | 8532220020 |
| Ripple Current @ Low Frequency | 687.8 mA @ 120 Hz |
| Ripple Current @ High Frequency | 917 mA @ 100 kHz |
Stock: 3722
Distributors
pcbx
pcbxUnit Price$1.54571
Ext.Price$1.54571
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.54571 | $1.54571 |
| 10 | $0.80706 | $8.07060 |
| 25 | $0.74925 | $18.73125 |
| 50 | $0.69558 | $34.77900 |
| 100 | $0.64575 | $64.57500 |
| 300 | $0.59949 | $179.84700 |
| 500 | $0.55656 | $278.28000 |
| 1000 | $0.55485 | $554.85000 |
| 3000 | $0.55112 | $1653.36000 |
| 5000 | $0.54741 | $2737.05000 |
| 10000 | $0.54373 | $5437.30000 |
