EEVFK2A221M
Manufacturer:
Panasonic
Mfr.Part #:
EEVFK2A221M
Datasheet:
Description:

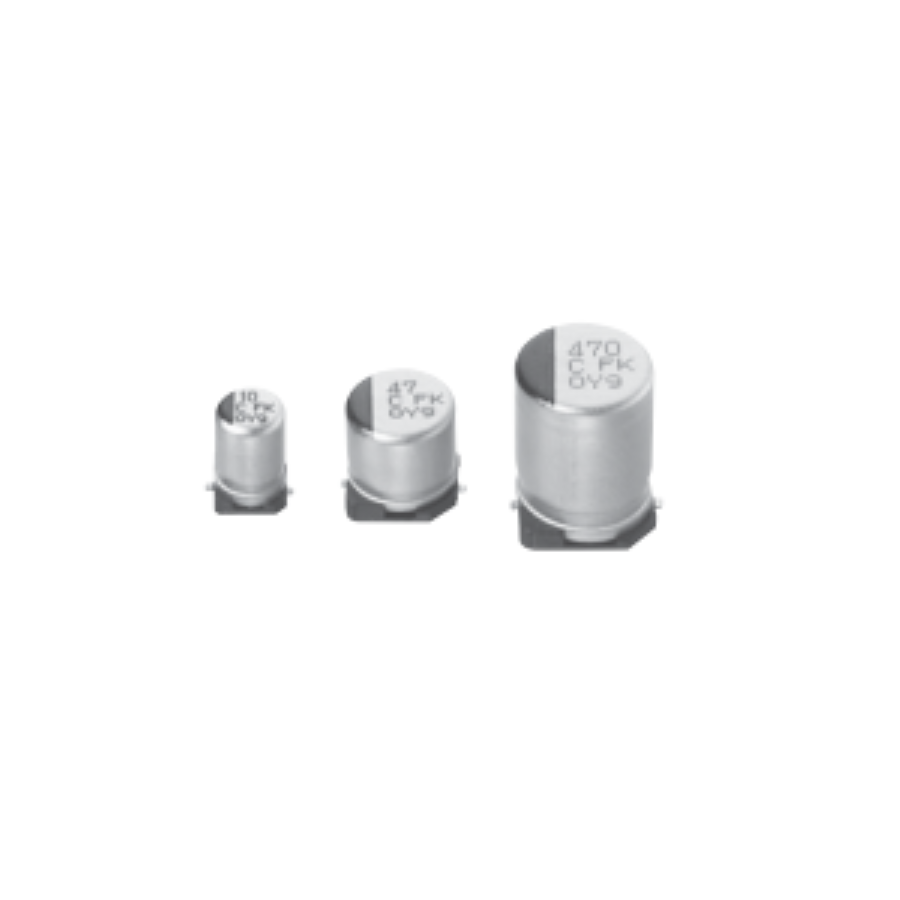

Aluminum Electrolytic Capacitors SMD,18.00mm×16.50mm SMD/SMT 220 µF 20 % 100 V
| Parameter | Value |
|---|---|
| Capacitance | 220 µF |
| Voltage Rating (DC) | 100 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 153 mΩ |
| Life (Hours) | 5000 Hours |
| Ripple Current | 917 mA |
| Height - Seated (Max) | 16.51 mm |
| Length | 17 mm |
| Width | 1.2 mm |
| Termination | SMD/SMT |
| Diameter | 18 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 100 V |
| Number of Pins | 2 |
| Leakage Current | 3 µA |
| Height | 16.5 mm |
| Packaging | Reel |
| Voltage Rating | 100 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 100 V |
| REACH SVHC | No SVHC |
| Dielectric Material | Aluminium |
| Ratings | AEC-Q200 |
| Contact Plating | Tin |
| Impedance | 153 mΩ |
| Ripple Current (AC) | 917 mA |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Schedule B | 8532220020 |
| Ripple Current @ Low Frequency | 687.8 mA @ 120 Hz |
| Ripple Current @ High Frequency | 917 mA @ 100 kHz |
Stock: 1437
Distributors
pcbx
pcbxUnit Price$7.41424
Ext.Price$7.41424
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $7.41424 | $7.41424 |
| 10 | $3.70712 | $37.07120 |
| 25 | $2.85163 | $71.29075 |
| 50 | $2.19356 | $109.67800 |
| 100 | $1.82797 | $182.79700 |
| 300 | $1.64663 | $493.98900 |
| 500 | $1.48328 | $741.64000 |
| 1000 | $1.33614 | $1336.14000 |
