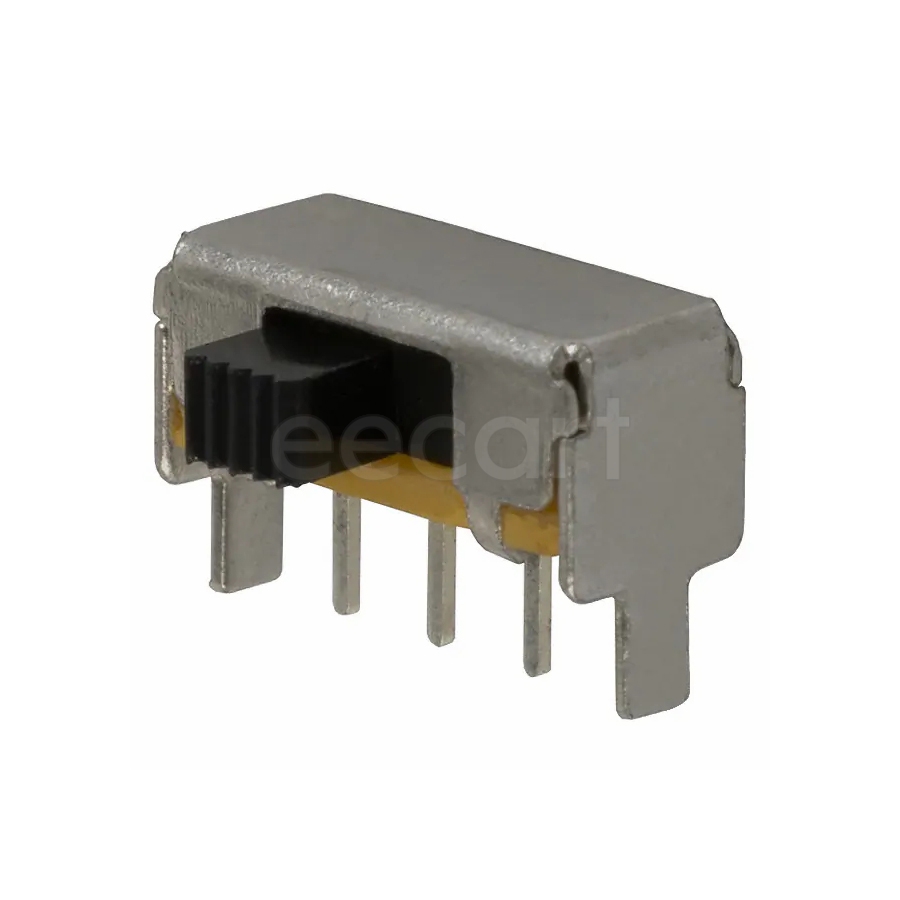

EG1206
Manufacturer:
E-Switch
Mfr.Part #:
EG1206
Datasheet:
Description:
Slide Switches Through Hole ON - ON Current Rating:200 mA Standard
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 30 V |
| Length | 3.05 mm |
| Width | 6 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Voltage Rating (AC) | 30 V |
| Height | 5.6 mm |
| Packaging | Bulk |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Copper, Silver |
| Current Rating | 200 mA |
| Orientation | Right Angle |
| Actuator Length | 3 mm |
| Throw Configuration | SPDT |
| Contact Style | Non-Shorting |
| Switch Function | ON - ON |
| Illumination Type | Non-Illuminated |
| Electrical Life | 10 kcycles |
| Switch Travel | 2.5 mm |
| Contact Current Rating | 200 mA |
| Actuator Type | Standard |
| Termination Style | PC Pin |
Stock: 241
Distributors
pcbx
pcbxUnit Price$0.52582
Ext.Price$0.52582
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.52582 | $0.52582 |
| 10 | $0.44615 | $4.46150 |
| 25 | $0.41545 | $10.38625 |
| 50 | $0.39239 | $19.61950 |
| 100 | $0.37060 | $37.06000 |
| 300 | $0.34623 | $103.86900 |
| 500 | $0.32346 | $161.73000 |
| 1000 | $0.30219 | $302.19000 |
| 3000 | $0.28231 | $846.93000 |
| 5000 | $0.27089 | $1354.45000 |
