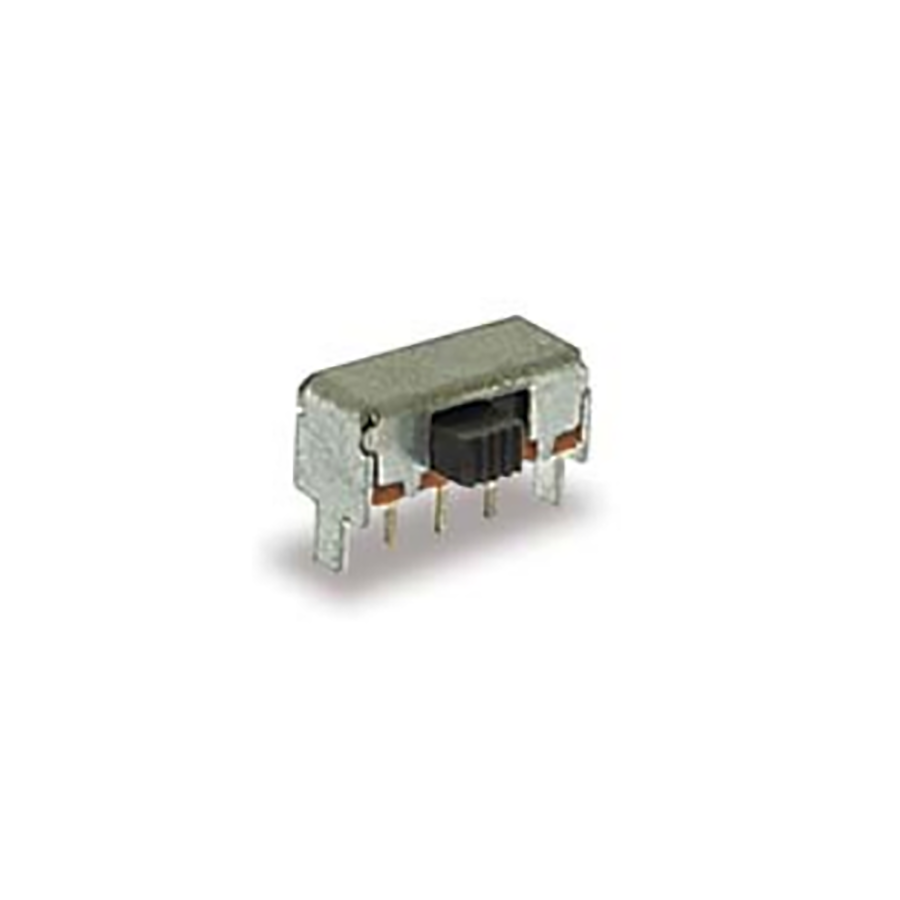

EG1206A
Manufacturer:
E-Switch
Mfr.Part #:
EG1206A
Datasheet:
Description:
Slide Switches Through Hole ON - ON SPDT Current Rating:200 mA Standard
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 30 V |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Voltage Rating (AC) | 30 V |
| Circuit Type | SPDT |
| Packaging | Bulk |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Copper, Silver |
| Current Rating | 200 mA |
| Orientation | Right Angle |
| Actuator Length | 6 mm |
| Throw Configuration | SPDT |
| Number of Positions | 2 |
| Contact Style | Non-Shorting |
| Switch Function | ON - ON |
| Illumination Type | Non-Illuminated |
| Electrical Life | 10 kcycles |
| Switch Travel | 2.5 mm |
| Contact Current Rating | 200 mA |
| Actuator Type | Standard |
| Termination Style | PC Pin |
Stock: 2543
Distributors
pcbx
pcbxUnit Price$0.52578
Ext.Price$0.52578
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.52578 | $0.52578 |
| 10 | $0.44627 | $4.46270 |
| 25 | $0.41550 | $10.38750 |
| 50 | $0.39264 | $19.63200 |
| 100 | $0.37104 | $37.10400 |
| 300 | $0.34830 | $104.49000 |
| 500 | $0.32696 | $163.48000 |
| 1000 | $0.30692 | $306.92000 |
| 3000 | $0.28811 | $864.33000 |
| 5000 | $0.27101 | $1355.05000 |
