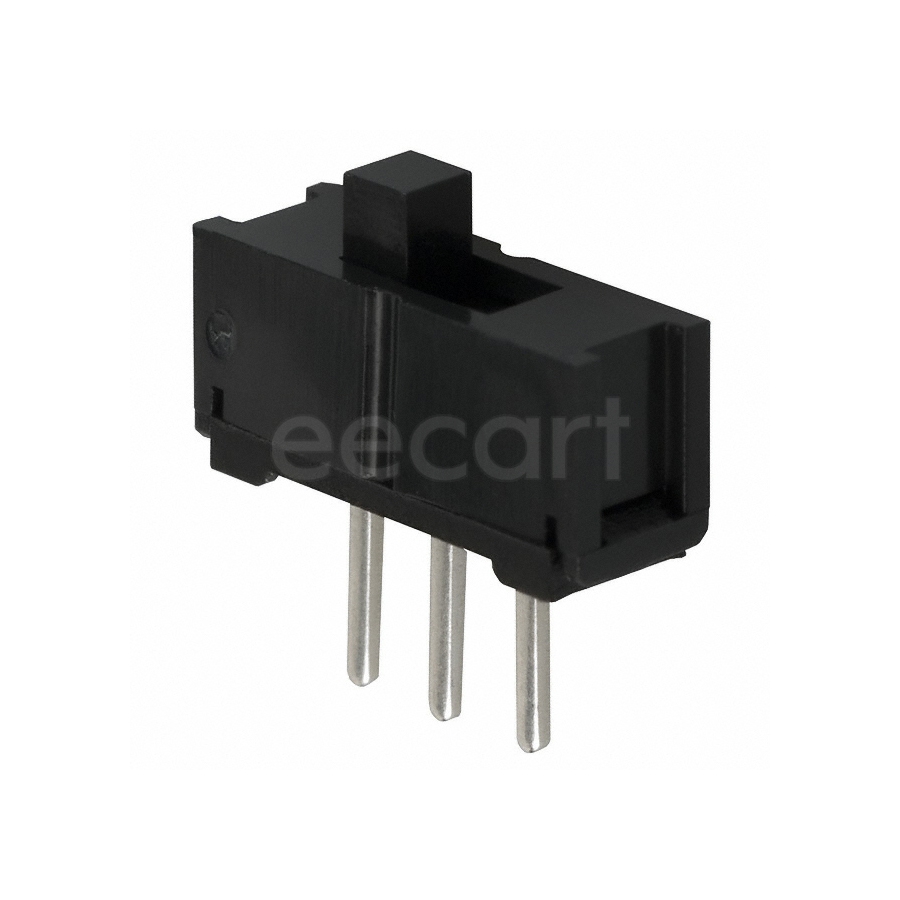

EG1218
Manufacturer:
E-Switch
Mfr.Part #:
EG1218
Datasheet:
Description:
Slide Switches Through Hole ON - ON SPDT Current Rating:200 mA Standard
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 30 V |
| Length | 3 mm |
| Width | 1.8 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Voltage Rating (AC) | 30 V |
| Number of Pins | 3 |
| Power Rating | 250 mW |
| Height | 1.3 mm |
| Circuit Type | SPDT |
| Packaging | Reel |
| Voltage Rating | 30 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 100 Ω |
| REACH SVHC | No SVHC |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Copper, Silver |
| Current Rating | 200 mA |
| Dropout Voltage | 300 mV |
| Min Input Voltage | 4.3 V |
| Output Current | 150 mA |
| Output Voltage | 3.3 V |
| Orientation | Vertical |
| Actuator Length | 2 mm |
| Max Output Current | 150 mA |
| Throw Configuration | SPDT |
| Number of Positions | 2 |
| Contact Style | Non-Shorting |
| Contact Resistance | 20 mΩ |
| Switch Function | ON - ON |
| Illumination Type | Non-Illuminated |
| Electrical Life | 10 kcycles |
| Switch Travel | 2.5 mm |
| Contact Current Rating | 200 mA |
| Actuator Type | Standard |
| Nominal Output Voltage | 3.3 V |
| Termination Style | PC Pin |
Stock: 8970
Distributors
pcbx
pcbxUnit Price$0.52578
Ext.Price$0.52578
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.52578 | $0.52578 |
| 10 | $0.44456 | $4.44560 |
| 25 | $0.40780 | $10.19500 |
| 50 | $0.38854 | $19.42700 |
| 100 | $0.37019 | $37.01900 |
| 300 | $0.33472 | $100.41600 |
| 500 | $0.30264 | $151.32000 |
| 1000 | $0.28640 | $286.40000 |
| 3000 | $0.26876 | $806.28000 |
| 5000 | $0.25220 | $1261.00000 |
