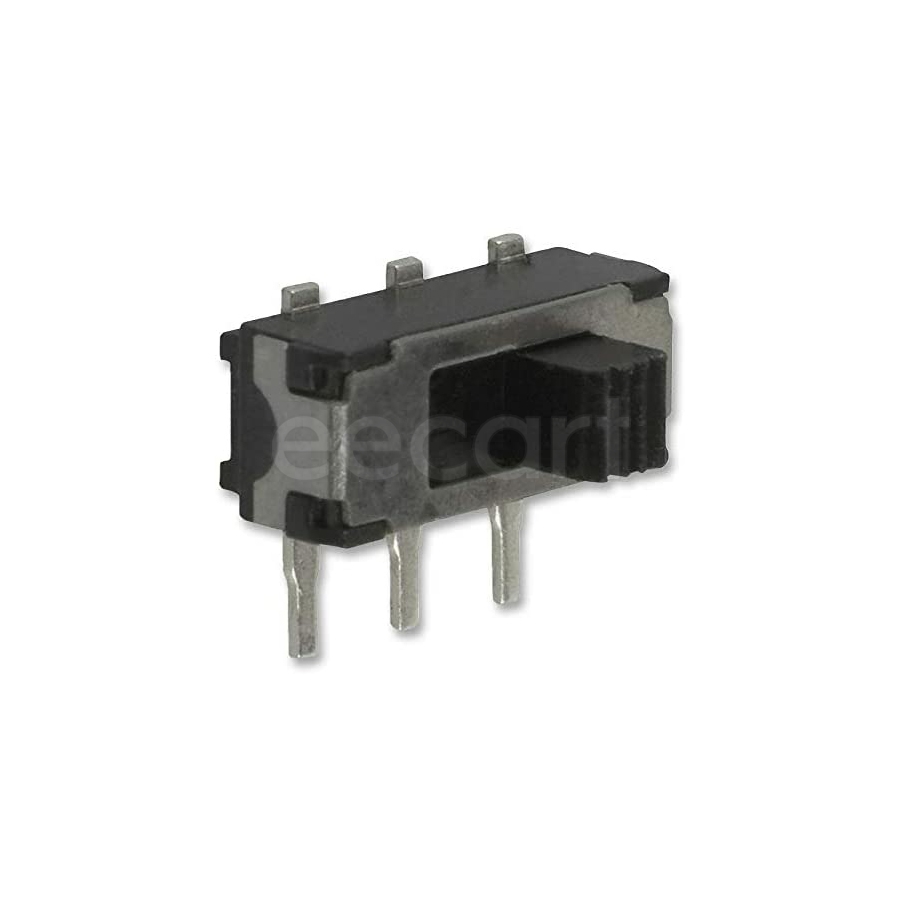

EG1270
Manufacturer:
E-Switch
Mfr.Part #:
EG1270
Datasheet:
Description:
Slide Switches Through Hole ON - ON Current Rating:300 mA Standard
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 6 V |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Voltage Rating (AC) | 500 V |
| Packaging | Bulk |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Copper, Silver |
| Current Rating | 300 mA |
| Orientation | Right Angle |
| Actuator Length | 2 mm |
| Throw Configuration | SPDT |
| Number of Positions | 2 |
| Contact Style | Non-Shorting |
| Switch Function | ON - ON |
| Illumination Type | Non-Illuminated |
| Electrical Life | 10 kcycles |
| Switch Travel | 2 mm |
| Contact Current Rating | 300 mA |
| Actuator Type | Standard |
| Termination Style | PC Pin |
Stock: 6767
Distributors
pcbx
pcbxUnit Price$0.64460
Ext.Price$0.64460
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.64460 | $0.64460 |
| 10 | $0.54995 | $5.49950 |
| 25 | $0.51132 | $12.78300 |
| 50 | $0.48277 | $24.13850 |
| 100 | $0.45582 | $45.58200 |
| 300 | $0.42646 | $127.93800 |
| 500 | $0.39899 | $199.49500 |
| 1000 | $0.37768 | $377.68000 |
| 3000 | $0.34806 | $1044.18000 |
| 5000 | $0.33599 | $1679.95000 |
