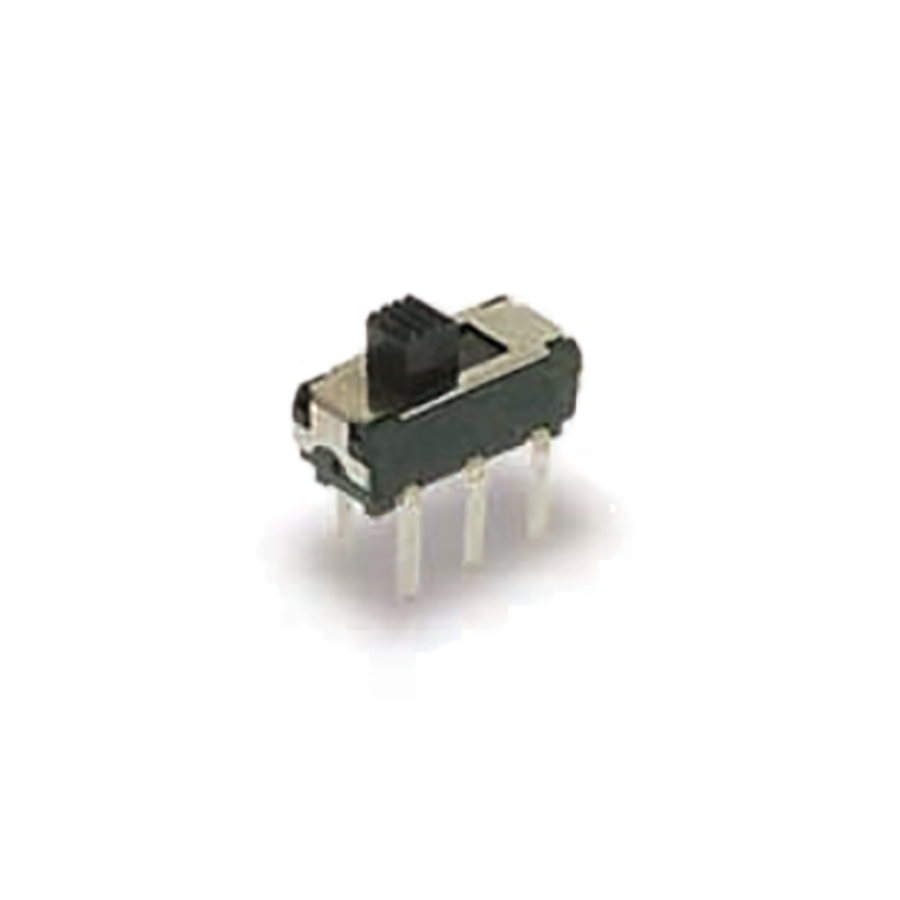

EG1271A
Manufacturer:
E-Switch
Mfr.Part #:
EG1271A
Datasheet:
Description:
Slide Switches Through Hole ON - ON SPDT Current Rating:300 mA Standard
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 30 V |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Circuit Type | SPDT |
| Packaging | Bulk |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Copper, Silver |
| Current Rating | 300 mA |
| Orientation | Vertical |
| Actuator Length | 4.4 mm |
| Throw Configuration | DPDT, SPDT |
| Number of Positions | 2 |
| Contact Style | Non-Shorting |
| Switch Function | ON - ON |
| Illumination Type | Non-Illuminated |
| Electrical Life | 10 kcycles |
| Switch Travel | 2 mm |
| Contact Current Rating | 300 mA |
| Actuator Type | Standard |
| Termination Style | PC Pin |
Stock: 1466
Distributors
pcbx
pcbxUnit Price$0.58220
Ext.Price$0.58220
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.58220 | $0.58220 |
| 10 | $0.49928 | $4.99280 |
| 25 | $0.43260 | $10.81500 |
| 50 | $0.41515 | $20.75750 |
| 100 | $0.39840 | $39.84000 |
| 300 | $0.37506 | $112.51800 |
| 500 | $0.35309 | $176.54500 |
| 1000 | $0.32830 | $328.30000 |
| 3000 | $0.31610 | $948.30000 |
| 5000 | $0.30436 | $1521.80000 |
