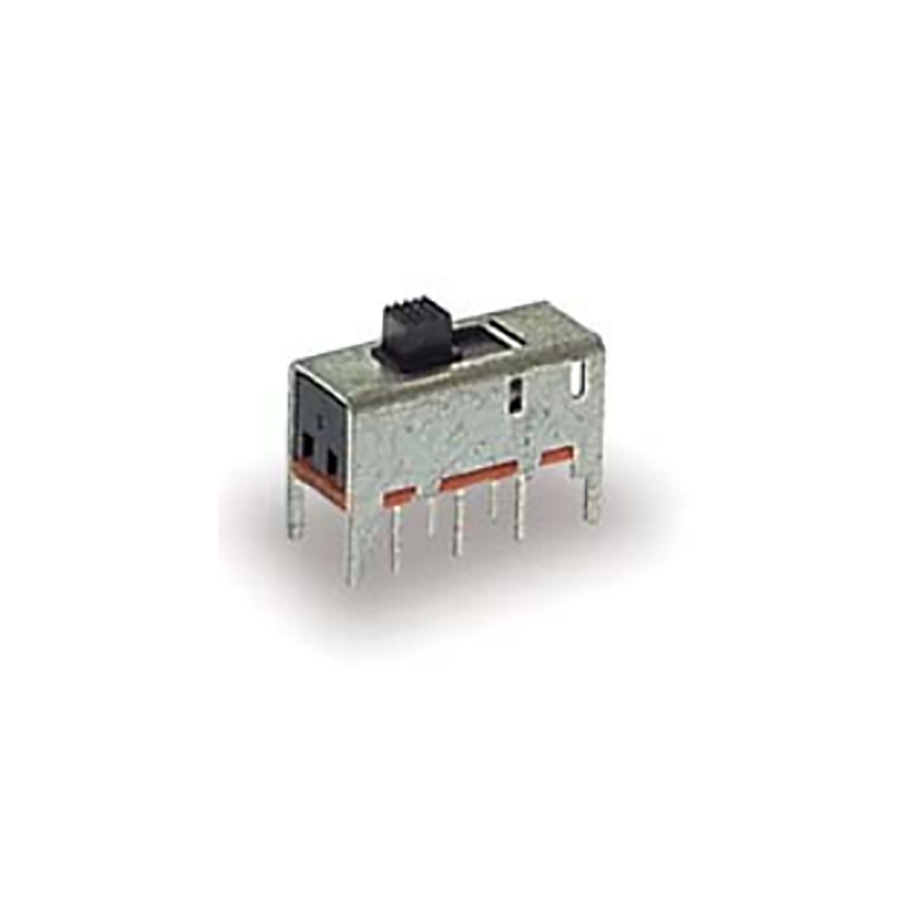

EG2201A
Manufacturer:
E-Switch
Mfr.Part #:
EG2201A
Datasheet:
Description:
Slide Switches Through Hole ON - ON DPDT Current Rating:200 mA Standard
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 30 V |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Voltage Rating (AC) | 30 V |
| Circuit Type | DPDT |
| Packaging | Bulk |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Copper, Silver |
| Current Rating | 200 mA |
| Orientation | Vertical |
| Actuator Length | 6 mm |
| Throw Configuration | DPDT |
| Number of Positions | 2 |
| Contact Style | Non-Shorting |
| Switch Function | ON - ON |
| Illumination Type | Non-Illuminated |
| Electrical Life | 10 kcycles |
| Switch Travel | 4 mm |
| Contact Current Rating | 200 mA |
| Actuator Type | Standard |
| Termination Style | PC Pin |
Stock: 1254
Distributors
pcbx
pcbxUnit Price$0.66941
Ext.Price$0.66941
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.66941 | $0.66941 |
| 10 | $0.58306 | $5.83060 |
| 25 | $0.54373 | $13.59325 |
| 50 | $0.51430 | $25.71500 |
| 100 | $0.48646 | $48.64600 |
| 300 | $0.43089 | $129.26700 |
| 500 | $0.41242 | $206.21000 |
| 1000 | $0.39474 | $394.74000 |
| 3000 | $0.37782 | $1133.46000 |
| 5000 | $0.36163 | $1808.15000 |
