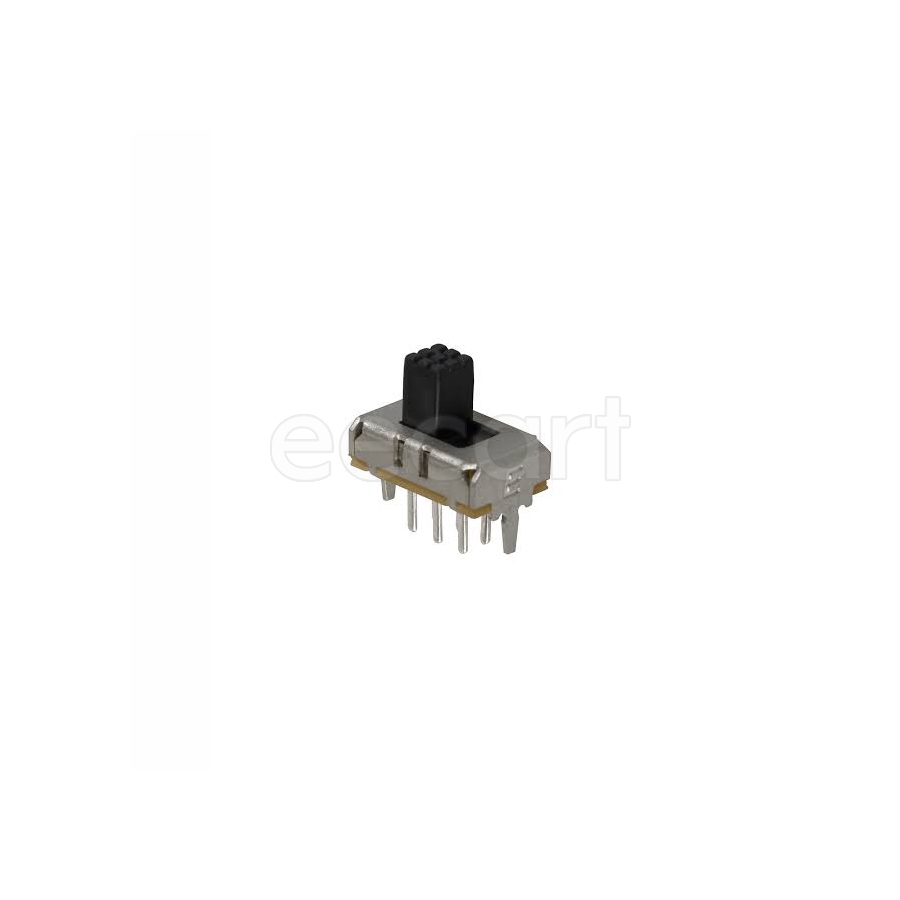

EG2207
Manufacturer:
E-Switch
Mfr.Part #:
EG2207
Datasheet:
Description:
Slide Switches Through Hole ON - ON Current Rating:200 mA Standard
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 30 V |
| Length | 10 mm |
| Width | 6 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Height | 7.7 mm |
| Packaging | Bulk |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Copper, Silver |
| Current Rating | 200 mA |
| Orientation | Vertical |
| Actuator Length | 4 mm |
| Throw Configuration | DPDT |
| Number of Positions | 2 |
| Contact Style | Non-Shorting |
| Switch Function | ON - ON |
| Illumination Type | Non-Illuminated |
| Electrical Life | 10 kcycles |
| Switch Travel | 2 mm |
| Contact Current Rating | 200 mA |
| Actuator Type | Standard |
| Termination Style | PC Pin |
Stock: 2432
Distributors
pcbx
pcbxUnit Price$0.59417
Ext.Price$0.59417
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.59417 | $0.59417 |
| 10 | $0.50441 | $5.04410 |
| 25 | $0.45397 | $11.34925 |
| 50 | $0.43653 | $21.82650 |
| 100 | $0.41977 | $41.97700 |
| 300 | $0.38777 | $116.33100 |
| 500 | $0.35821 | $179.10500 |
| 1000 | $0.32658 | $326.58000 |
| 3000 | $0.31305 | $939.15000 |
| 5000 | $0.30008 | $1500.40000 |
