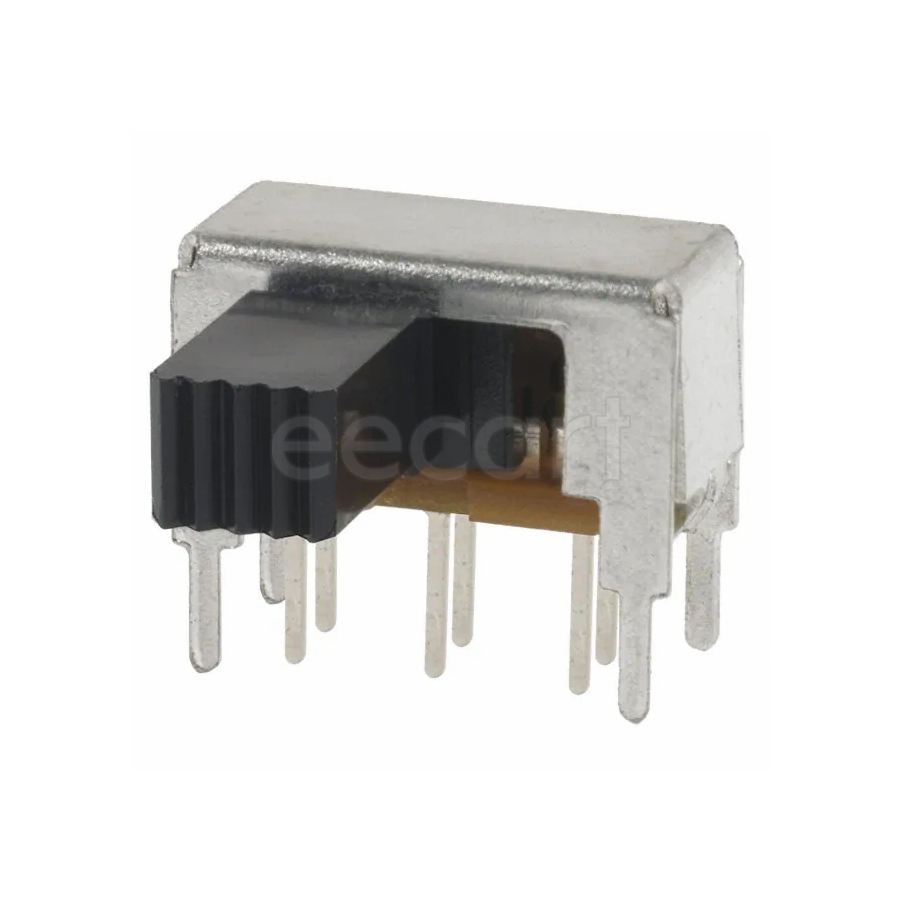

EG2219
Manufacturer:
E-Switch
Mfr.Part #:
EG2219
Datasheet:
Description:
Slide Switches Through Hole ON - ON DPDT Current Rating:500 mA Standard
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 15 V |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Circuit Type | DPDT |
| Packaging | Bulk |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Copper, Silver |
| Current Rating | 500 mA |
| Orientation | Right Angle |
| Actuator Length | 9 mm |
| Throw Configuration | DPDT |
| Number of Positions | 2 |
| Contact Style | Non-Shorting |
| Switch Function | ON - ON |
| Illumination Type | Non-Illuminated |
| Electrical Life | 10 kcycles |
| Switch Travel | 4 mm |
| Contact Current Rating | 500 mA |
| Actuator Type | Standard |
| Termination Style | PC Pin |
Stock: 1501
Distributors
pcbx
pcbxUnit Price$0.56938
Ext.Price$0.56938
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.56938 | $0.56938 |
| 10 | $0.50356 | $5.03560 |
| 25 | $0.47790 | $11.94750 |
| 50 | $0.45871 | $22.93550 |
| 100 | $0.44029 | $44.02900 |
| 300 | $0.42727 | $128.18100 |
| 500 | $0.41464 | $207.32000 |
| 1000 | $0.40694 | $406.94000 |
| 3000 | $0.38678 | $1160.34000 |
| 5000 | $0.36762 | $1838.10000 |
